Sdi to Optical Converter Wholesale - ETV-1
Product Features
★ Supports up to 1920*1080@60HZ, backward compatible with 1080I, 720P and other resolutions;
★ The transmitter has a local loop output, and the receiver has dual signal output;
★ Support 3G/HD/SD-SDI HD digital signal or ASI HD digital signal;
★ Low power consumption, power bank, V port battery can supply power for more than 10 hours;
★ The transmitter can be fixed to the camera, the receiving end can be plugged in for centralized management, centralized power supply, convenient management;
★ Comply with SMPTE424M, SMPTE259M, SMPTE292M, SMPTE297M, SMPTE310, SMPTE305 (SDTI), SMPTE344 standards
★ Comply with DVB-ASI (EN50083-9) interface standard
★ Automatically adapt to SDI 143, 177, 270, 360, 1485Mbps, 2.97Gbps
★ The input/output has cable equalization, which can compensate the loss of cable transmission, and the cable transmission distance can reach 100m (1485Mbps, BELDEN8281 cable)
★ There is a circuit to reduce signal jitter, which can handle distorted signals well
★ The working status is clearly indicated, and the panel is equipped with SDI signal, light signal, and power LED indication
★ Support SMPTE178 standard and pass SDI pathological code test
★ Optional HDMI output at the same time, easy to monitor the SDI signal and send it to the big screen of the studio
★ Industrial grade design, dust-proof, freeze-proof and lightning-proof, high temperature resistance;
★ With a third-party test report, FCC and CE international certification, 3C mandatory certification;
Technical Parameter
| Video interface | BNC（SDI interface） |
| Number of input | 1 channel |
| Local loop out | 1channel with loop out |
| wavelength | 1310nm、1550nm |
| Resolution | 1920*1080@60HZ, backward compatible with 1080I, 720P |
| Transmission rate | Up to 2.97Gbps |
| Recommended SDI video cable distance | 《30m, at 1080p@60HZ |
| Module type | Pluggable SFP optical module |
| Optical fiber interface | LC interface |
| Fiber type | Single mode/Multimode |
| battery | V port battery/power bank |
| Transmission distance | Standard 20km, can be customized 0-100km |
| Power parameters | 5-18VDC/2A |
| Operating temperature | -40℃-70℃ |

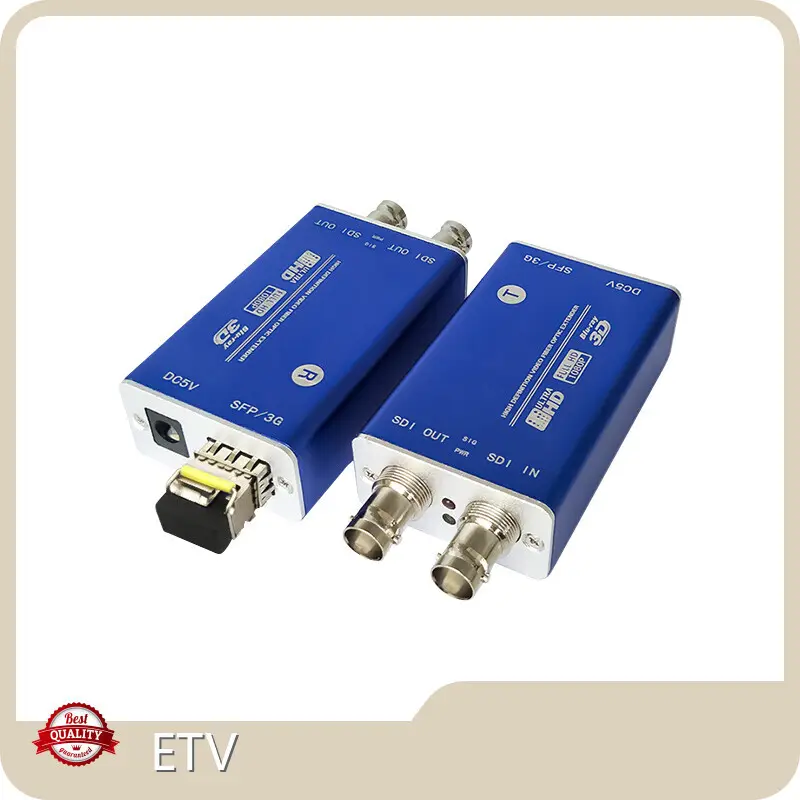

Product Display
Company Advantages
· The raw materials of ETV sdi to optical converter is procured from reliable vendors across the world.
· The strict quality control process is carried out throughout the whole production eliminates the possible defects of the product.
· Beijing Yite Video Technology Co., Ltd. has a skilled tech-team and well-performed sales network.
Company Features
· Beijing Yite Video Technology Co., Ltd. is a Chinese sdi to optical converter manufacturer which is professional and large in factory scale.
· Our company has a strong sales team. They are highly responsible for making sales, growing our business and retaining existing customers. And they work to maintain relationships with our customers.
· We act sustainably in a few ways. We use resources responsibly and reduce waste significantly by utilizing advanced production technologies.
Application of the Product
Our sdi to optical converter has a wide range of applications.
We are willing to understand the real needs of our customers. Then, we will provide the best solutions to their needs.
