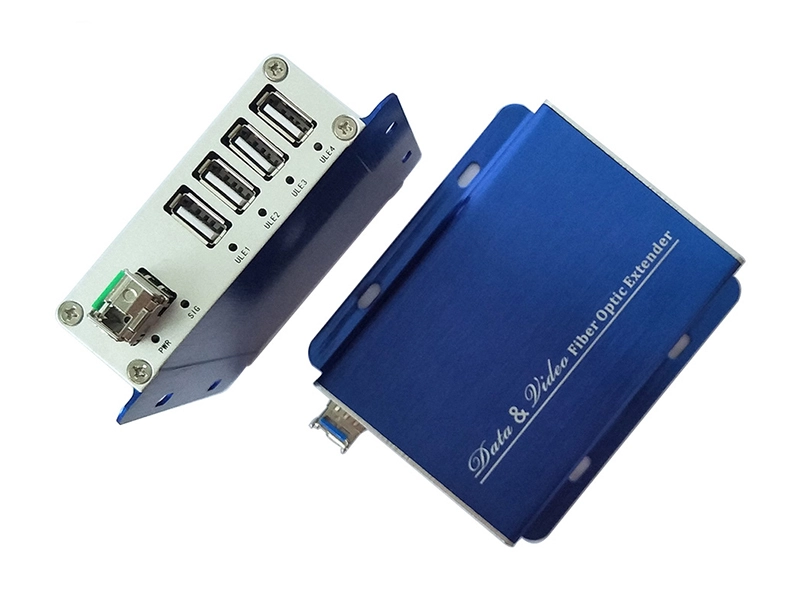

ETV 4 Port USB extender Multifunction USB to Fiber Converter for Camera, printer, keyboard and mouse
● The power interface is designed with lightning protection, anti-static, anti-surge and anti-high voltage;
● Compact structure, convenient installation, plug and play, no drive required;
● Multi-service interface support: In addition to USB, it supports user-customized audio, high-definition video,
Synchronous transmission of control data, Ethernet, IO, IR, USB and other services
◆ ETV-MFHD8104-USB optical transceiver (also known as USB2.0 optical fiber extender) is composed of a transmitter and a receiver. The USB type B interface of the host is extended to the remote end through a single-mode optical fiber and expanded to 4 USB types Port A, the maximum transmission distance is 500 meters.
◆ Support USB1.0/1.1/2.0 types of printers, scanners, game controllers, touch screens, high-speed cameras, audio devices, hard drives and other devices.
◆ Automatic identification of high-speed (480Mbps), full-speed (12Mbps), and low-speed (1.5Mbps) USB devices
● The power interface is designed with lightning protection, anti-static, anti-surge and anti-high voltage;
● Compact structure, convenient installation, plug and play, no drive required;
● Multi-service interface support: In addition to USB, it supports user-customized audio, high-definition video,
Synchronous transmission of control data, Ethernet, IO, IR, USB and other services
|
Product performance |
|
|
Optical fiber interface |
Single fiber LC 500m (default) |
|
USB interface |
support USB1.0/1.1/2.0 |
|
USB port communication rate |
high speed: 480Mbps |
