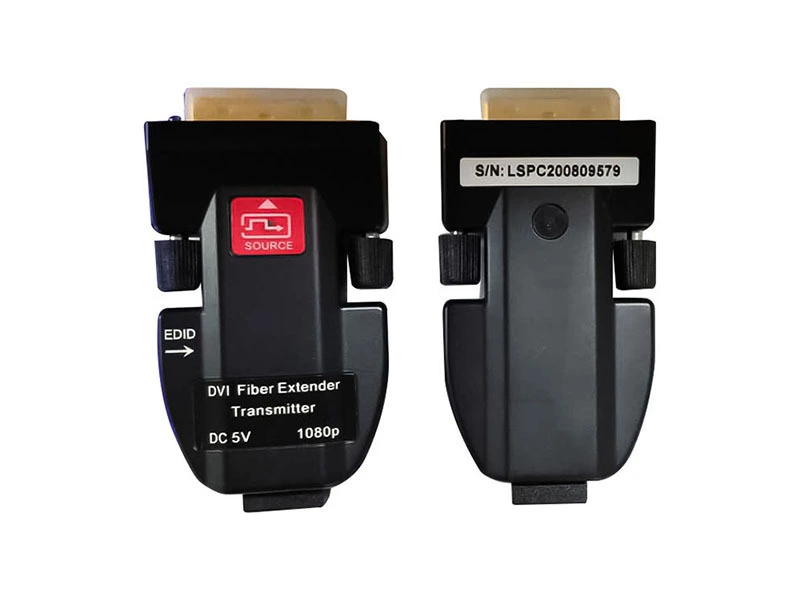

Mini DVI to Fiber Optic Extender
● The transmitter can read the EDID of the display device to improve the compatibility of the product with the display.
● Support OM3 multimode LC fiber transmission with a transmission distance of 300 meters;
● Support single mode fiber (G652.D) transmission, the longest transmission distance is 1500 meters;
● The transmitter can read the EDID of the display device;
● Supports the highest video bandwidth of 1.65;
● Supports the highest resolution of 1920 × 1200 60Hz and 4K 30hz;
● Small size, easy to use, can be inserted into the DVI interface of the video source and display device;
● Small size, easy to use, can be inserted into the DVI interface of the video source and display device
The DVI signal single-core fiber optic transmitter is a device that transmits high-definition DVI video using single-core (single-mode/multi-mode) fiber. The product is compact and easy to install, and can be directly connected to the DVI interface of the display device and signal source. The DVI signal can be transmitted with only one core fiber.
● The transmitter can read the EDID of the display device to improve the compatibility of the product with the display.
● Support OM3 multimode LC fiber transmission with a transmission distance of 300 meters;
● Support single mode fiber (G652.D) transmission, the longest transmission distance is 1500 meters;
● The transmitter can read the EDID of the display device;
● Supports the highest video bandwidth of 1.65;
● Supports the highest resolution of 1920 × 1200 60Hz and 4K 30hz;
● Small size, easy to use, can be inserted into the DVI interface of the video source and display device;
● Small size, easy to use, can be inserted into the DVI interface of the video source and display device
|
Interface Type |
Transmitter |
1×DVI-D(IN) |
|
1×LC |
||
|
Receiver |
1×DVI-D(OUT) |
|
|
1×LC |
||
|
Power supply |
Transmitter |
DC 5V 1A |
|
Reciever |
DC 5V 1A |
|
|
structure size |
Transmitter |
65×39×15 mm |
|
Reciever |
65×39×15 mm |
|
|
weight |
Transmitter |
80 g |
|
Reciever |
80 g |
|
|
Other |
||
|
Transmission distance |
300 m (OM3) |
|
|
Maximum supported resolution |
1920×1200 60Hz and 4K 30hz |
|
|
HDCP |
not support |
|
|
Operating temperature |
-20 to 65 ° C |
|
|
storage temperature |
-20 to 85 ° C |
|
|
humidity |
5% to 95% |
|
