Sdi Fiber Optic Converter by ETV
Company Advantages
· sdi fiber optic converter from Beijing Yite Video Technology Co., Ltd. is high-quality and cost-effective.
· The product meets the demanding quality standard and becomes the benchmark for quality.
· With strong production strength, ETV guarantees the bulk production of sdi fiber optic converter as well as the high quality.
Product Features
★ Supports up to 1920*1080@60HZ, backward compatible with 1080I, 720P and other resolutions;
★ The transmitter has a local loop output, and the receiver has dual signal output;
★ Support 3G/HD/SD-SDI HD digital signal or ASI HD digital signal;
★ Low power consumption, power bank, V port battery can supply power for more than 10 hours;
★ The transmitter can be fixed to the camera, the receiving end can be plugged in for centralized management, centralized power supply, convenient management;
★ Comply with SMPTE424M, SMPTE259M, SMPTE292M, SMPTE297M, SMPTE310, SMPTE305 (SDTI), SMPTE344 standards
★ Comply with DVB-ASI (EN50083-9) interface standard
★ Automatically adapt to SDI 143, 177, 270, 360, 1485Mbps, 2.97Gbps
★ The input/output has cable equalization, which can compensate the loss of cable transmission, and the cable transmission distance can reach 100m (1485Mbps, BELDEN8281 cable)
★ There is a circuit to reduce signal jitter, which can handle distorted signals well
★ The working status is clearly indicated, and the panel is equipped with SDI signal, light signal, and power LED indication
★ Support SMPTE178 standard and pass SDI pathological code test
★ Optional HDMI output at the same time, easy to monitor the SDI signal and send it to the big screen of the studio
★ Industrial grade design, dust-proof, freeze-proof and lightning-proof, high temperature resistance;
★ With a third-party test report, FCC and CE international certification, 3C mandatory certification;
Technical Parameter
| Video interface | BNC（SDI interface） |
| Number of input | 1 channel |
| Local loop out | 1channel with loop out |
| wavelength | 1310nm、1550nm |
| Resolution | 1920*1080@60HZ, backward compatible with 1080I, 720P |
| Transmission rate | Up to 2.97Gbps |
| Recommended SDI video cable distance | 《30m, at 1080p@60HZ |
| Module type | Pluggable SFP optical module |
| Optical fiber interface | LC interface |
| Fiber type | Single mode/Multimode |
| battery | V port battery/power bank |
| Transmission distance | Standard 20km, can be customized 0-100km |
| Power parameters | 5-18VDC/2A |
| Operating temperature | -40℃-70℃ |

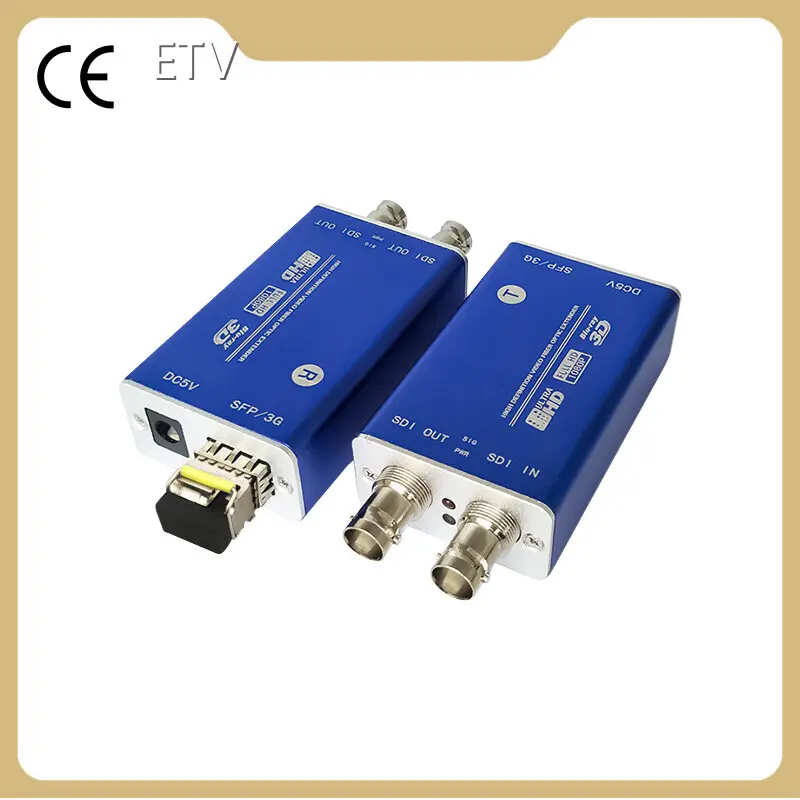

Product Display
Company Features
· Beijing Yite Video Technology Co., Ltd. has a high level of professionalism in production of sdi fiber optic converter.
· We have hired professionals with ample amounts of experience from various countries. Only natives can realize the designs that are perfect for their respective countries. We have established long-term relationships with organizations, companies, and individuals in China and around the world. Due to the advice of these customers, our business is booming. We have exported products including sdi fiber optic converter to around 50 countries. In this process, we have accumulated extensive exporting expertise. As our business expands, our service will cover more countries and regions.
· Beijing Yite Video Technology Co., Ltd. will continue to strive to introduce new products and strive to be in the leading position in the industry. Please contact us!
Product Comparison
The sdi fiber optic converter produced by ETV is better than the previous generation. The specific performance is as follows.
