Quality Mini Converter Optical Fiber Price List
Product details of the mini converter optical fiber
Product Description
In the production of ETV mini converter optical fiber, the latest machining techniques is used. The offered product is the best in quality and performance. The product is highly acknowledged by customers in the industry.

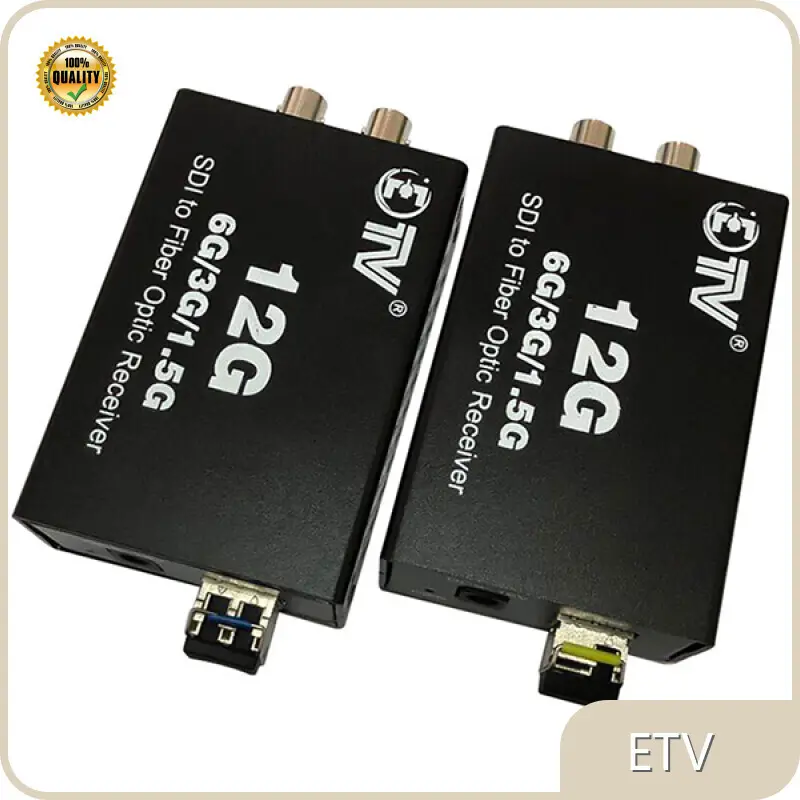

This series of 12G-4KSDI high-definition digital video optical transceiver is composed of a transmitter and a receiver. It is used to transmit 11.88GMbps 12G-SDI, 5940Mbps 6G-SDI ultra-high-definition video signals, and is backward compatible with 143M, 177M, 270M, 360M, 540M , 1483.5M, 1485M, 2970Mbps HD/SD-SDI high-definition video signal, and fully compatible with DVB-ASI digital stream signal. Supports up to 4K@60HZ, supports SDI transceiver loop output, SFP pluggable module, LC optical port. Single fiber transmission and multiple channels can be realized through CWDM.
ETV-12G-4KSDI radio and television series optical transceiver, the transmitter is equipped with a multi-rate cable equalizer at the electrical signal input end, with 1 SDI loop output. The receiver has a circuit to reduce signal jitter, which can handle distorted signals well and output 2 SDI signals. Support SMPTE178 standard and pass SDI pathology code test. The equipment has a wide range of voltage, single-mode (multi-mode) optional, SFP optical module, LC optical port, and the transmission distance can reach 20-60km. This series of 4KSDI high-definition video optical transceiver has perfect signal accuracy, super stability and reliability. It is the best choice for TV stations, CMMB, IPTV, mobile TV, mobile TV and other new media in news gathering and live broadcast signal transmission. High-definition video optical fiber transmission equipment.
● Automatically recognize 12G-SDI/6G-SDI/3G-SDI/HD-SDI/SD-SDI/ASI signal input, without manual selection;
● Comply with SMPTE ST 2082-1 (12G UHD-SDI), ST 2081-1 (6G UHD-SDI), SMPTE424M, SMPTE292M, SMPTE259M, SMPTE297M, SMPTE305M, SMPTE310M standards;
● Comply with DVB-ASI (EN50083-9) standard;
● Automatically adapt to SDI 143M, 177M, 270M, 360M, 540M, 1483.5M, 1485M, 2970M, 5940M, 11.88Gbps rate;
● The signal input has an automatic cable equalization function, and the output has a drive function;
● Both the sender and receiver have clock recovery functions;
● The LED lights are well designed, and the working status of the equipment can be easily monitored through the LED lights;
● Lead-free environmental protection circuit board PCB design, PCB circuit board adopts multi-layer design, the circuit is stable and reliable, and the signal transmission is stable and reliable;
● All components, including connectors, use products from internationally renowned manufacturers, with reliable quality;
● Rack-mounted optional dual-switch power supply design, wide voltage range, long-term reliable operation of the power supply system
● Multiple installation options: single/multi-channel/centralized card type, optional mini case, small case, 19-inch wide 1U, 2U, 4U fixed standard case;
● Industrial-grade design, dust-proof, freeze-proof and lightning-proof, high temperature resistance;
● With third-party inspection report, FCC and CE international certification, 3C compulsory certification 9001 certification.
|
12G-SDI video input indicators |
|
|
Number of channels |
1+1 loop out |
|
Level |
>380mVp-p |
|
Automatic cable equalization |
>30m(11.88Gbps)(Belden1694A cable) |
|
>50m(5940Mbps)(Belden1694A cable) |
|
|
>100m(2970Mbps)(Belden1694A cable) |
|
|
>200m(1485Mbps)(Belden1694A cable) |
|
|
>350m(270Mbps)(Belden1694A cable） |
|
|
Return Loss |
>10dB(11.88Gbps) |
|
Impedance |
75Ω |
|
Interface |
BNC |
Company Advantage
• ETV has experienced wind and rain for years. Now we are the head of the industry.
• ETV's core team members have rich industry experience and master the core industry technology. They are the backbone of enterprise development.
• Based on the needs of our customers, ETV provides competitive solutions and services in a targeted manner. We determine quality with details, and continue to create maximum value for our customers.
Thanks for visiting. If you have any questions, please contact ETV!
