Professionalfiber Optic Converter Box
Company Advantages
· ETV fiber optic converter box is designed to give strikingly intuitive user experiences.
· The product abides by international quality standards.
· fiber optic converter box has successfully passed the ISO9000:2000 quality management system certification.

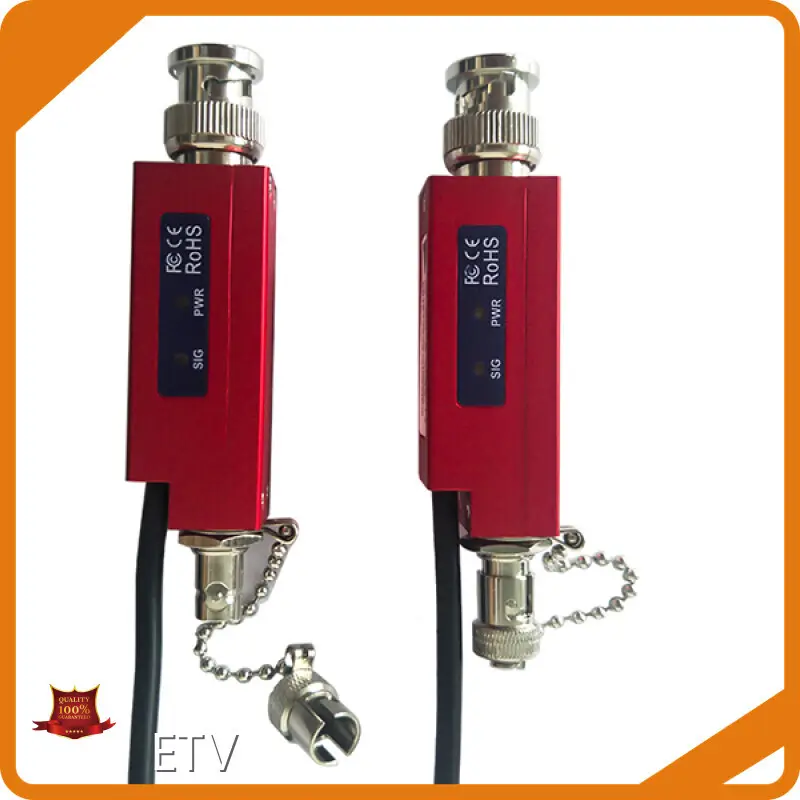

This series of mini 3G/HD/SD-SDI channel high-definition digital video optical transceiver modules are miniature fiber optic serial digital video transmission modules that provide the industry's widest digital rate range while maintaining the signal quality required by broadcasters. From 2.97Gbps rate 3G-SDI high-definition digital signal, 1485Mbps rate HD-SDI high-definition digital video signal, it is compatible with the transmission of SD-SDI standard definition digital video signal or ASI digital video signal at four rates: 143, 177, 270, 360Mbps.
Supports up to 1080p@60HZ, ST lock optical port. The equipment is smaller in size, the ST lock optical port is more stable, and the SDI interface has five levels of lightning protection, anti-static, anti-surge, and anti-electromagnetic interference. Applied to sports program production, golf, skiing, racing, etc., e-sports competitions, concerts, live TV programs, directing, etc.
● Supports up to 1920*1080@60HZ, backward compatible with 1080I, 720P and other resolutions；
● Support 3G/HD/SD-SDI HD digital signal or ASI HD digital signal；
● Low power consumption, the USB port of the video device can supply power or the 20,000 mAh power bank can supply power for more than 10 hours；
● Smaller size, the transmitter can be fixed to the camera, the receiving end can be inserted into the card centralized management, centralized power supply, easy to manage；
● Single-mode and multi-mode can be transmitted, single-mode transmission can reach 20km, multi-mode transmission can reach 300 meters；
● Comply with SMPTE424M, SMPTE259M, SMPTE292M, SMPTE297M, SMPTE310 SMPTE305 (SDTI), SMPTE344 standards；
● Comply with DVB-ASI (EN50083-9) interface standard；
● Automatically adapt to SDI 143, 177, 270, 360, 1485Mbps, 2.97Gbps；
● The input/output has cable equalization, which can compensate for the loss of cable transmission, and the cable transmission distance can reach 100m (1485Mbps, BELDEN8281 cable)；
● There is a circuit to reduce signal jitter, which can handle distorted signals well.；
● The working status indication is clear, and the panel is equipped with LED indicators for SDI signal, optical signal, and power supply.；
● Support SMPTE178 standard, pass SDI decoding test ；
● Industrial-grade design, dust-proof, freeze-proof, lightning-proof, high temperature resistant；
● With third-party test reports, FCC and CE international certification, 3C compulsory certification.
|
Video interface |
BNC (SDI interface) |
|
Input Output |
1 channel SDI signal |
|
Wavelength |
1310nm, 1550nm |
|
Resolution |
1920*1080@60HZ, backward compatible with 1080I, 720P |
|
Transmission rate |
Up to 2.97GBPS |
|
Recommended SDI video cable distance |
"100m, at 1080p@60HZ |
|
Optical fiber interface |
ST optical port |
|
Fiber type |
Single mode/multi mode |
|
Battery |
V-port battery/power bank |
|
Transmission distance |
Single mode 20km, multi mode 300 meters |
|
Power parameters |
5VDC/1A |
|
Operating temperature |
-40℃-70℃ |
Company Features
· Beijing Yite Video Technology Co., Ltd. is one of the major firms offering fiber optic converter box in China. We are known for having unrivaled experience in quality product manufacturing.
· We are constantly invested in a series of production facilities that are imported from Japan, Germany, etc. With the help of these facilities, our workers are able to improve operational efficiency for some customized projects. Our manufacturing plant runs smoothly under the help of some cutting edge production facilities. These facilities are robust enough to meet the needs of our customers in an acceptable manner. We are backed by a professional manufacturing team. Relying on their robust backgrounds and expertise in the fiber optic converter box field, they are proficient enough to manufacture our products within the highest standards.
· Every fiber optic converter box before delivery will conduct professional debugging to ensure it's perfect in function. Inquire online!
Product Comparison
We demand ourselves in the production of fiber optic converter box with stricter standards. Based on this, we ensure that our products have advantages over the general products in the following aspects.
