New Fiber Video Extender Supply

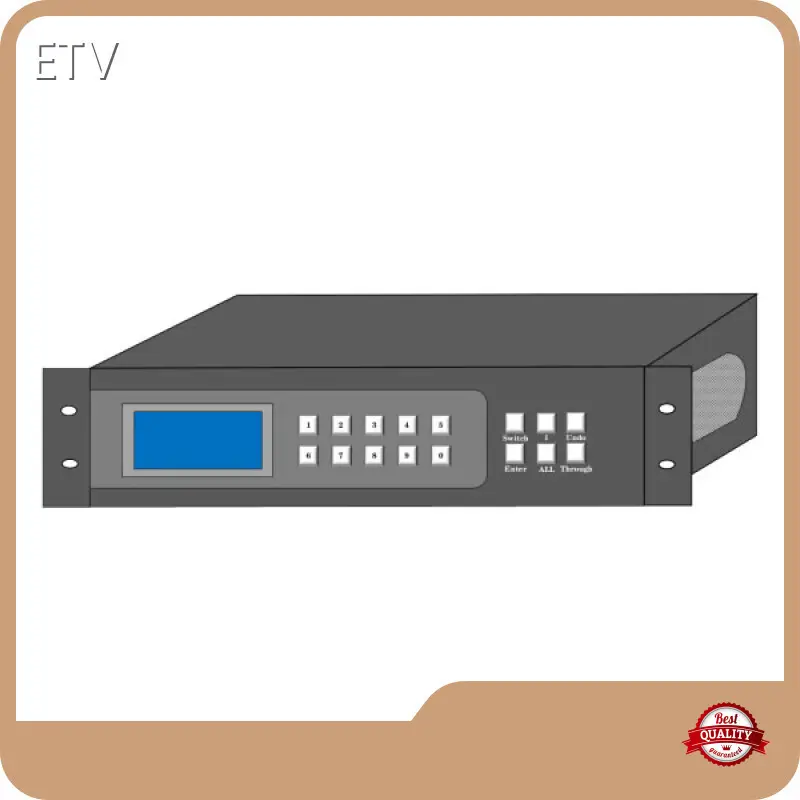

Optical matrix is a high-performance professional audio and video signal switching equipment, designed for long-distance, multi-channel audio and video signal transmission needs. Pure hardware design architecture, fully protect the equipment 7X24 hours of daily stable work, widely used in broadcasting and television projects, multimedia conference halls, television teaching, command and control centers and other industries in the management control room.
Equipped with RS232 and Ethernet communication interface, the device supports 16/16 seamless switching, support for multiple digital signal format input, such as HDMI/DVI/SDI, etc., support for synchronous transmission of the mouse and keyboard and other functions, to facilitate the use of the central control and host computer software. Single-mode single-core fiber optic switching, transmission technology, so far has five fiber optic matrix series products and a variety of fiber optic transmission module, support from analog to digital; from standard definition system, to high-definition system, to 4K and 8K ultra-high-definition system; from 16 * 16 matrix switching, to 40 * 40, 144 * 144, and then to 288 * 288, 576 * 576, and other products continue to be launched. Matching ATER fiber optic transmitter, transmission distance up to 20km. modular design, according to the actual project of different needs, different budgets to provide differentiated solutions.
● Supports hot-swappable modular design for on-site reconfiguration, flexible application, cost savings, and easy system maintenance and upgrading.
● Supports seamless switching of 16-channel optical input and 16-channel optical output.
Automatically supports EMI/RFI suppression.
● Supports point-to-point all-digital solutions that include digital HD signals.
● Supports support for multiple digital signal format inputs, such as HDMI/DVI/SDI.
● Support multi-scene switching and saving function, which can realize seamless switching and signal fade switching.
● Adopts dual power supply redundancy, with forced cooling measures to ensure that the system works continuously for 24 hours.
● Support HINI/SDI/DVI and other formats of fiber optic transmission format signals.
● All-digital zero compression technology, no donation consumption, resolution up to 1920 * 1200 (including HTV1080p/60) signals.
● Support for synchronized transmission of the mouse and keyboard.
● System anti-interference ability, good performance stability.
● Industrial-grade module design, reliable and stable.
|
Product Model |
ETV-MFHD8104-LM16F |
|
Interface |
Optical Interface |
|
Number of Interfaces |
16 Inputs, 16 Outputs |
|
Speed |
3Gbps~10Gbps |
|
Optical Interface |
Single fiber single mode LC (default), FC/SC/ST optional |
|
Optical Dynamic Range |
18dB |
|
Maximum Allowable Chain Loss |
18dB |
|
Optical wavelength |
Multimode: 850nm/1310nm |
|
Optical Receiving Sensitivity |
Singlemode: 1310nm/1550nm |
|
Transmit power |
Better than -26dBm |
|
Power consumption |
Better than -8dB |
|
Mean Time Between Failure (MTBF) |
<100W/AC220 |
|
Operating Temperature |
Greater than 100,000 hours |
|
Storage Temperature |
-20°C~+75°C |
|
Relative Humidity |
-40°C~+85°C |
|
Specification |
0~95 % |
Company Advantages
· Raw materials used for the production of ETV fiber video extender is procured from reliable vendors.
· The product is strictly tested by our quality experts on a series of parameters, ensuring its quality and performance.
· The competitiveness of the product lies in its tremendous economic benefits.
Company Features
· Beijing Yite Video Technology Co., Ltd. is a Chinese leading exporter for fiber video extender.
· With its technological leadership, Beijing Yite Video Technology Co., Ltd. has won a large number of fiber video extender market share.
· Beijing Yite Video Technology Co., Ltd. adheres to the concept of 'revitalizing the enterprise with science and technology'. Inquire!
Application of the Product
The fiber video extender produced by ETV is widely used in the industry.
ETV has many years of industry experience and strong production strength. According to different needs of customers, we are able to provide customers with excellent and efficient one-stop solutions.
