Media Fiber Converter for Sale
Product details of the media fiber converter
Product Overview
Featuring a comfortable look the offered media fiber converter is made from quality approved range of materials. It is defect-free through continuous quality management processes. We have found that this product has a tendency to be more applicable.
Product Description
Our media fiber converter is exquisite in workmanship, and we are not afraid to enlarge the details of our products.

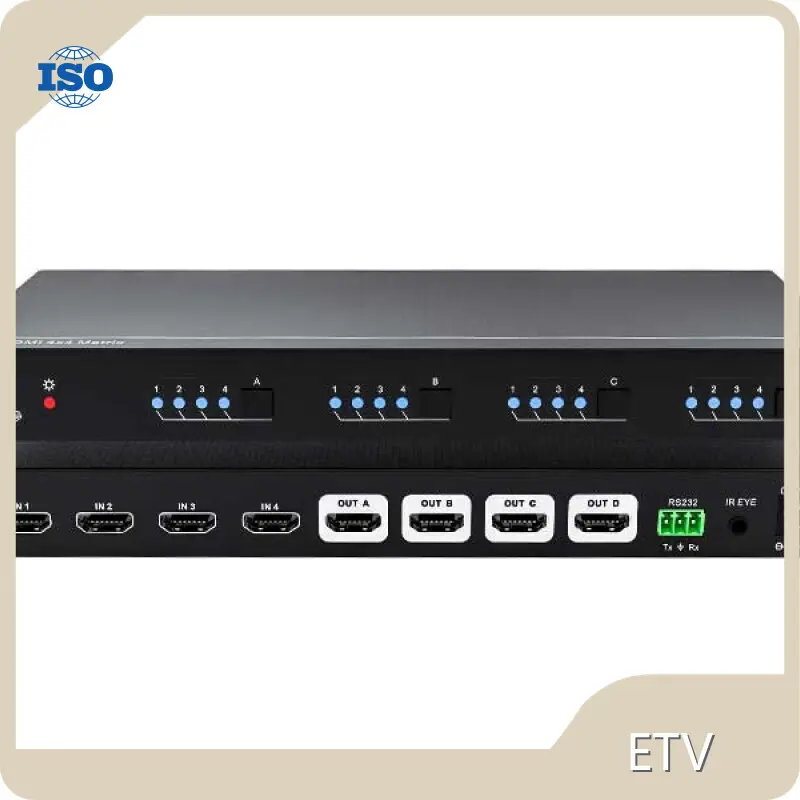

This machine is a 4K high-definition HDMI matrix switcher, which consists of 4 HDMI inputs and 4 HDMI outputs to form a 4x4 matrix switcher.Support HDMI1.4 standard, compatible with HDCP2.2, and support up to 4Kx2K@60Hz 4:2:0 resolution.The equipment control methods are flexible and diverse, including infrared control, serial port control, and panel button control. They are compatible with control at the same time and are more convenient to use.
● The highest resolution is 4Kx2K@60Hz 4:2:0, support 1080P 3D
● Support HDMI1.4, compatible with HDCP2.2, and backward compatible
● Intelligent EDID management, which can learn output EDID data through RS232 instructions and IR infrared remote control
● Support panel button control, IR infrared, RS232 commands
● Input HDCP follows, output supports HDCP management: instruction control
● Support for USB firmware online upgrade
|
VIDEO IN |
|
|
input |
(4) HDMI |
|
Input connector |
(4) HDMI A Type |
|
HDMI version |
1.4 |
|
HDCP version |
2.2 |
|
Video output |
|
|
output |
(4) HDMI |
|
Output Connector |
(4) HDMI A Type |
|
HDMI version |
1.4 |
|
HDCP version |
1.4 |
|
convention |
|
|
resolution ratio |
Maximum Support 4K@60Hz 4: 2:0 |
|
bandwidth |
10.2 Gbps |
|
control mode |
Front panel button, IR infrared remote control, RS232 |
|
power supply |
12V DC 2A |
|
consumption |
10W (maximum) |
|
operation temperature |
-10℃ ~ +55℃ |
|
storage temperature |
-25℃ ~ +70℃ |
|
relative humidity |
10%-90% |
|
Size (W * H * D) |
244mm x25.5mm x 100mm; 269mm x 25.5mm x 100mm (including hanging ears) |
|
Net weight (g) |
650g |
Company Introduction
Beijing Yite Video Technology Co., Ltd. is a China-based enterprise focusing on developing and manufacturing of media fiber converter. We have gone far ahead of the industry. ETV actively introduces high-end talents. We strive to acquire the marketplace and many praised customer support with our greatest quality media fiber converter. Check it!
We sincerely welcome people from all walks of life to come to make cooperation, common development and a better future.
