Latesthd Sdi to Fiber Converter
Company Advantages
· ETV hd sdi to fiber converter is made of well-selected materials and has a innovative and aesthetic design.
· The product is highly regarded for its unparalleled quality and practicality.
· The product has been widely well-known and has gained buyer's recognition in overseas market.
Product Features
★ Supports up to 1920*1080@60HZ, backward compatible with 1080I, 720P and other resolutions;
★ The transmitter has a local loop output, and the receiver has dual signal output;
★ Support 3G/HD/SD-SDI HD digital signal or ASI HD digital signal;
★ Low power consumption, power bank, V port battery can supply power for more than 10 hours;
★ The transmitter can be fixed to the camera, the receiving end can be plugged in for centralized management, centralized power supply, convenient management;
★ Comply with SMPTE424M, SMPTE259M, SMPTE292M, SMPTE297M, SMPTE310, SMPTE305 (SDTI), SMPTE344 standards
★ Comply with DVB-ASI (EN50083-9) interface standard
★ Automatically adapt to SDI 143, 177, 270, 360, 1485Mbps, 2.97Gbps
★ The input/output has cable equalization, which can compensate the loss of cable transmission, and the cable transmission distance can reach 100m (1485Mbps, BELDEN8281 cable)
★ There is a circuit to reduce signal jitter, which can handle distorted signals well
★ The working status is clearly indicated, and the panel is equipped with SDI signal, light signal, and power LED indication
★ Support SMPTE178 standard and pass SDI pathological code test
★ Optional HDMI output at the same time, easy to monitor the SDI signal and send it to the big screen of the studio
★ Industrial grade design, dust-proof, freeze-proof and lightning-proof, high temperature resistance;
★ With a third-party test report, FCC and CE international certification, 3C mandatory certification;
Technical Parameter
| Video interface | BNC（SDI interface） |
| Number of input | 1 channel |
| Local loop out | 1channel with loop out |
| wavelength | 1310nm、1550nm |
| Resolution | 1920*1080@60HZ, backward compatible with 1080I, 720P |
| Transmission rate | Up to 2.97Gbps |
| Recommended SDI video cable distance | 《30m, at 1080p@60HZ |
| Module type | Pluggable SFP optical module |
| Optical fiber interface | LC interface |
| Fiber type | Single mode/Multimode |
| battery | V port battery/power bank |
| Transmission distance | Standard 20km, can be customized 0-100km |
| Power parameters | 5-18VDC/2A |
| Operating temperature | -40℃-70℃ |

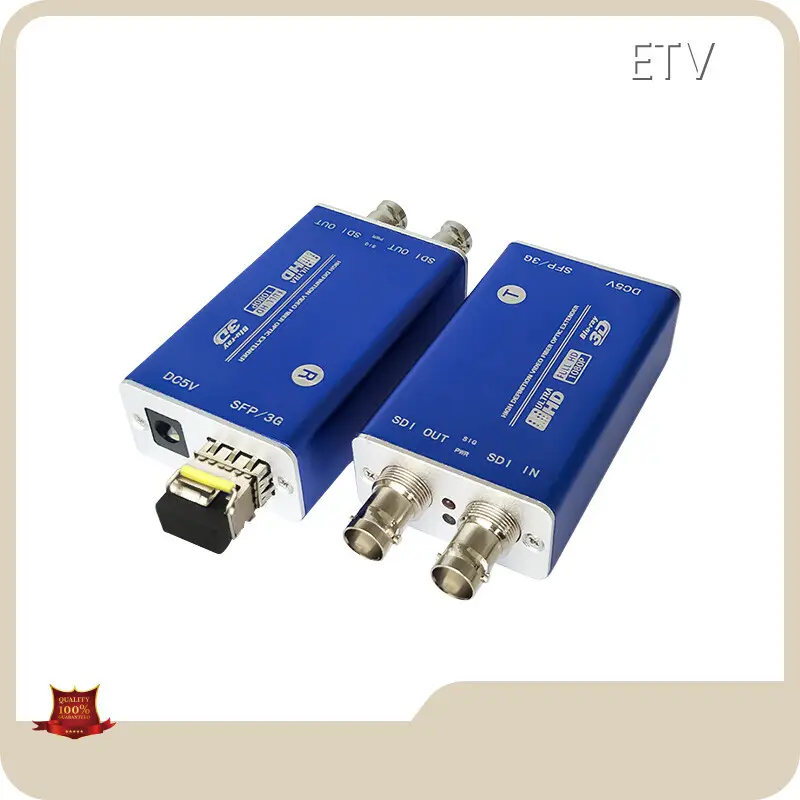

Product Display
Company Features
· ETV has become a high-rank hd sdi to fiber converter manufacturer since its establishment.
· Our products are not just the Chinese's favorite but Asian's, and with work completed and currently underway in far-flung destinations throughout Europe, the Middle East, and East Africa. Our company has built up a robust portfolio of customers. They range from small manufacturers to some of the recognizable blue-chip companies. They make our products available worldwide.
· Based on the concept of 'Quality is the basis for survival,' we seek to grow more steady and stronger step by step. We believe we can be the strongest leader in the hd sdi to fiber converter industry if we attach more importance to quality, including product quality and service quality.
Product Details
ETV's high-quality hd sdi to fiber converter is produced according to the national standards. The specific details are as follows.
