Hdmi Over Fiber Extender by ETV
Company Advantages
· The source of raw materials: before ETV hdmi over fiber extender comes out, it is processed from high quality raw materials. These materials are sourced from several different places within and out of the region.
· This product is tested by our quality controllers to assure its high performance at clients.
· Beijing Yite Video Technology Co., Ltd. achieves rapid growth with limited corporate resources.

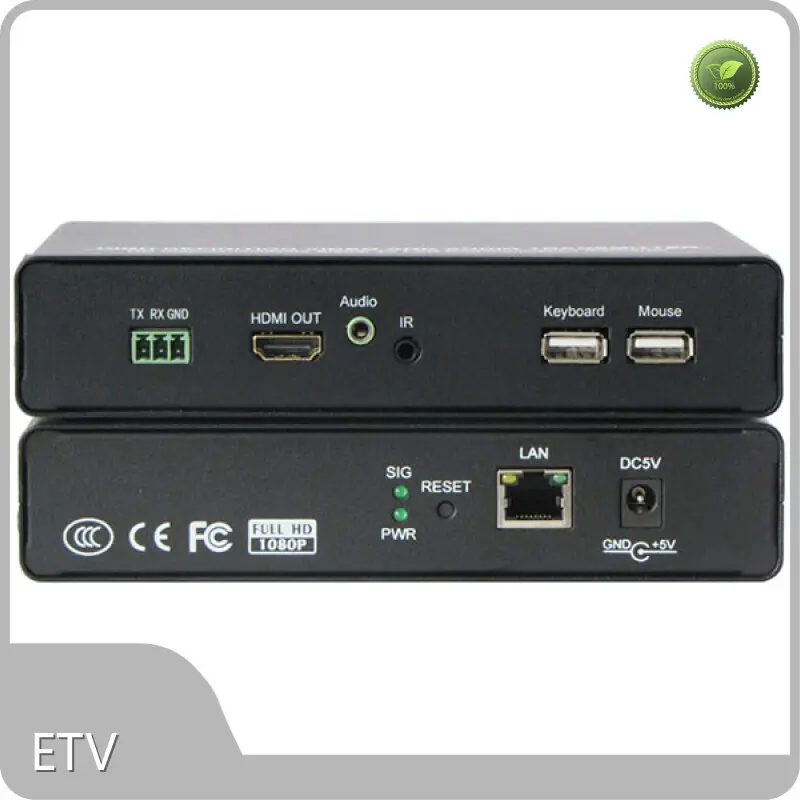

ETV-680 series high-definition KVM network cable extender is an independent research and development chip design of Ante Video Application, which transmits HDMI signals (embedded audio) and USB2.0 signals through CAT5, CAT5E, and CAT6 network cables; supports 3.5 audio and 232 data , IR infrared (optional). HDMI signal supports 1920*1080@60hz. Point-to-point single CAT6 network cable can transmit 1080P@60Hz up to 120 meters; support switch/router and other relay devices cascaded to extend unlimitedly and distribute HDMI signals.
This series of network cable extension transmitters has excellent image processing and transmission capabilities, making signal transmission more smooth and stable. It is a reliable, high-performance, and efficient HDMI signal extension method, which is widely used in industrial control, computer fields and monitoring fields. Large-screen advertising, education, splicing system, bank securities system, etc.
● Support HDMI1.3, compatible with HDCP 1.2 protocol;
● Support USB2.0, realize real-time remote control of mouse and keyboard;
● The network cable complies with the IEEE-568B standard; it can transmit up to 120 meters through the CAT5/5E/6 network cable;
● Support point-to-point transmission, which can be extended indefinitely through the switch;
● One-to-multipoint transmission can be realized through the switch;
● HDMI signal supports up to 1920*1080@60HZ;
● Audio transmission can realize HDMI embedded audio and 3.5 audio through dial switch;
● Support 232 data and IR infrared function optional.
|
parameter |
Description |
|
power supply |
DC5V / 2A |
|
HDM signal |
HDMI 1.3, fully compatible with HDCP |
|
Support resolution |
480i@60Hz、480P@60Hz、576i@50Hz、576P@50Hz、 720P@50/60Hz、1080i@50/60Hz、1080P@50/60Hz |
|
cable |
Unshielded or shielded Category 5/6 network cable (UTP/STP Cat5e/6) |
|
Network cable transmission distance |
HDMI 1080P signal can be transmitted 120 meters using CAT5 network cable |
|
Product power consumption |
Transmitter 3W, receiver 3W |
|
Product Size |
170x106x35mm |
Company Features
· As a robust and powerful firm, Beijing Yite Video Technology Co., Ltd. has been widely known in the hdmi over fiber extender field.
· ETV has its own technical methods to produce hdmi over fiber extender.
· Achieving sustainable development plans becomes vital in our business growth. We are looking for cleaner materials and create sustainable alternatives to the current packaging materials.
Product Details
Next, ETV will present you with the specific details of hdmi over fiber extender.
Application of the Product
The hdmi over fiber extender produced by ETV is widely used in industry.
With a focus on customers, ETV analyzes problems from the perspective of customers and provides comprehensive, professional and excellent solutions.
