Product details of the hdmi fiber extender
Quick Overview
ETV hdmi fiber extender is crafted by a team of highly skilled technicians. The product is treasured for its consistent performance and optimum functionality. Thanks to our popular hdmi fiber extender, ETV has developed many western partners.
Product Introduction
Compared with other products in the industry, hdmi fiber extender has more obvious advantages which are reflected in the following aspects.

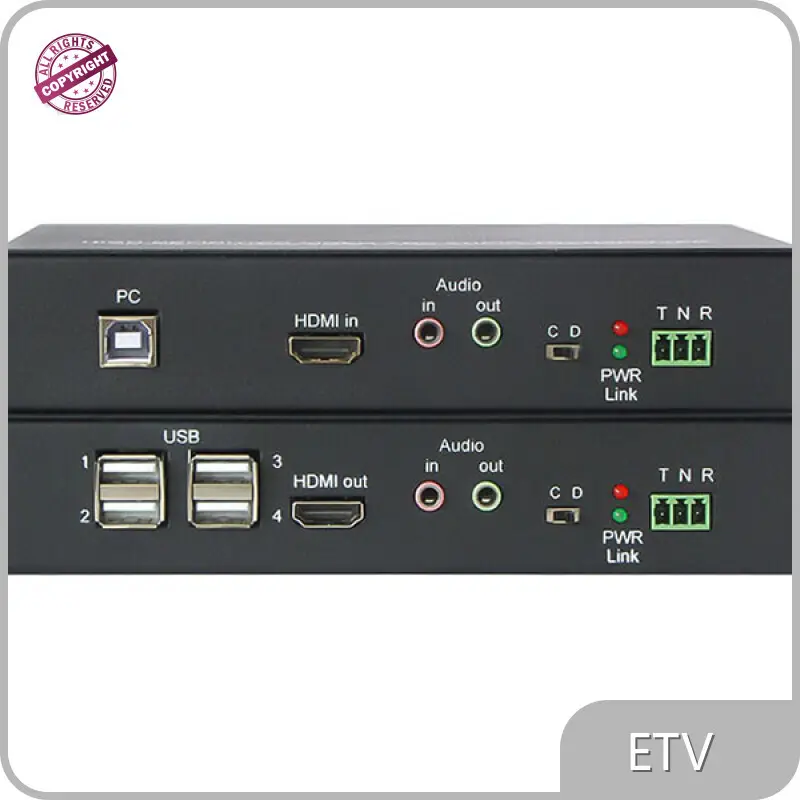

The ETV-KVM4000K series KVM digital optical transceiver is an optical fiber transmission product that transmits KVM signals on a single-core optical fiber. It can also transmit HDMI/DVI (VGA), independent audio signals and data services at the same time. USB supports 2.0, which can realize mouse and keyboard , U disk, LCD touch screen control, it supports large screen splicing function. At the same time, it supports one infrared transmission function.
To achieve point-to-point transmission of KVM signals, the MixOptMatrix distributed optical fiber access platform can realize flexible switching of multiple KVM signals, simple networking, convenient installation, and low construction cost. It can be applied to LCD communication, camera PTZ, subway monitoring, Industries such as military exercises.
● Support large screen splicing function without software assistance
● Support network cable or optical fiber transmission 1 channel 4K HD image and USB2.0 can pass the switch
● Support multiple video signal access HDMI/DVI/VGA (optional)
● Support the highest resolution up to 4Kx2K@60Hz
● Support USB2.0
● Support audio, USB keyboard and mouse and USB232
● A variety of data can be connected to RS232, RS485, RS422, etc.
● Support EDID learning function, compatible with multiple display devices
● Support sampling frequency, phase, image horizontal position, image vertical position adjustment, signal input indication
● Pure hardware design, no driver required, compatible with any system, plug and play.
● Built-in ESD electrostatic protection circuit, all-round protection system safety.
● Support one infrared remote transmission.
|
Resolution |
4Kx2K@60Hz |
|
Ethernet interface |
UTP/STP 1000Mbps |
|
Supported interfaces |
Audio, USB keyboard and mouse, and USB232 |
|
Data interface |
RS232, RS485, RS422, etc. |
|
Protocol |
IP/UDP/TCP/ICMP/IGMP |
|
Ethernet interface |
UTP/STP 1000Mbps |
|
|
protocol |
IP,UDP,TCP,ICMP,IGMP |
|
|
HDMI interface |
Input: 19-pin A type |
Input: 19-pin A type |
|
Output: 19-pin A type |
USB Type A * 2 |
|
|
USB interface |
Micro USB * 1 |
USB Type A * 2 |
|
RS232 |
3.5mm headphone jack |
|
|
Audio output port |
3.5mm headphone jack |
|
|
Power interface |
DC5V, 1.5A |
|
|
Power Indicator |
Blinking: The power box unit is starting |
|
|
Steady on: power on |
||
|
Data indicator |
Data indicator flashes: the device is already connected to the network, or the HDMI program source has been disconnected |
|
|
The data indicator is always on: the device is connected and working normally |
||
|
TX / RX IP address |
Use the 169.254.xxx.xxx private IP domain range in "Auto IP" mode. The IP of the target TX / RX board is the mDNS protocol used, and his host name is resolved. The receiver ’s HDMI receiver will display its own IP address and the IP address sent by the connection |
|
|
Sound type |
LPCM |
|
|
Multipoint to multipoint |
Support 5524VLAN |
|
|
RS232 over ip |
ASCII mode |
|
|
Compress |
Make Jun lossless compression patent technology |
|
|
Certification |
CE / FCC |
|
|
follow |
HDMI1.3 / HDCP1.2 / ROHS |
|
