Company Advantages
· The raw materials of ETV hdmi extender optical mainly comes from licensed suppliers.
· Reliable testing equipment has been adopted to test the product to ensure it performs well and has good durability.
· Quality of hdmi extender optical will be in the most important place during transportation.

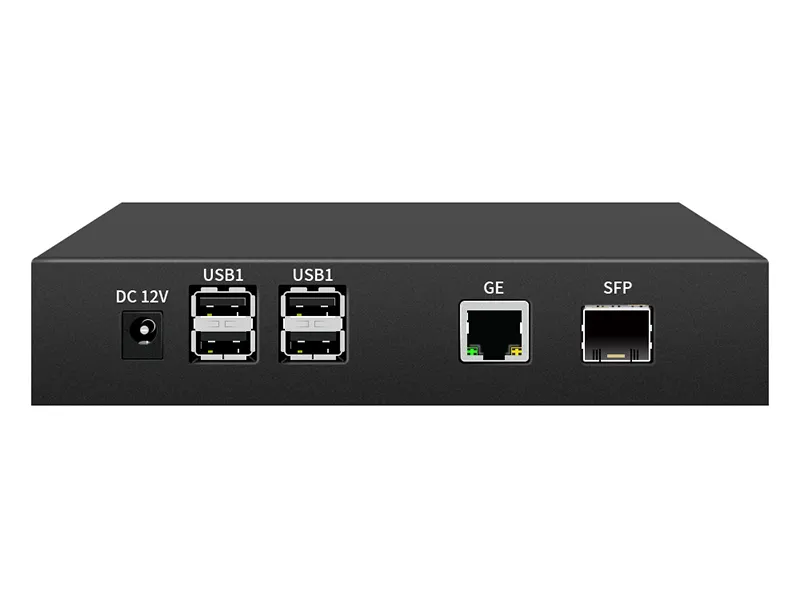

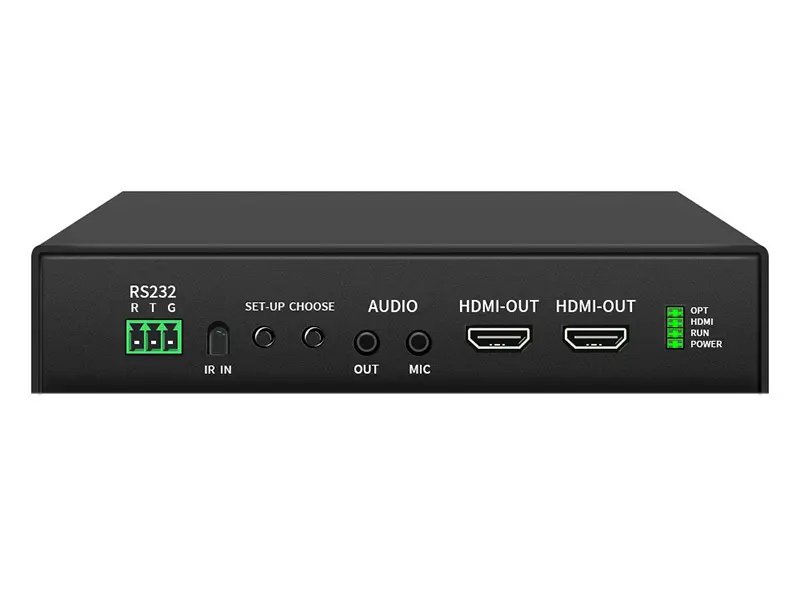

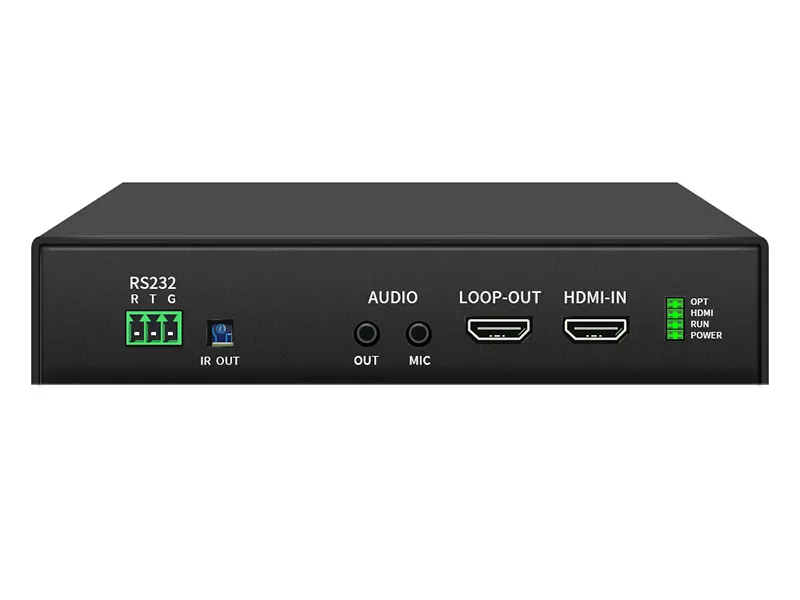

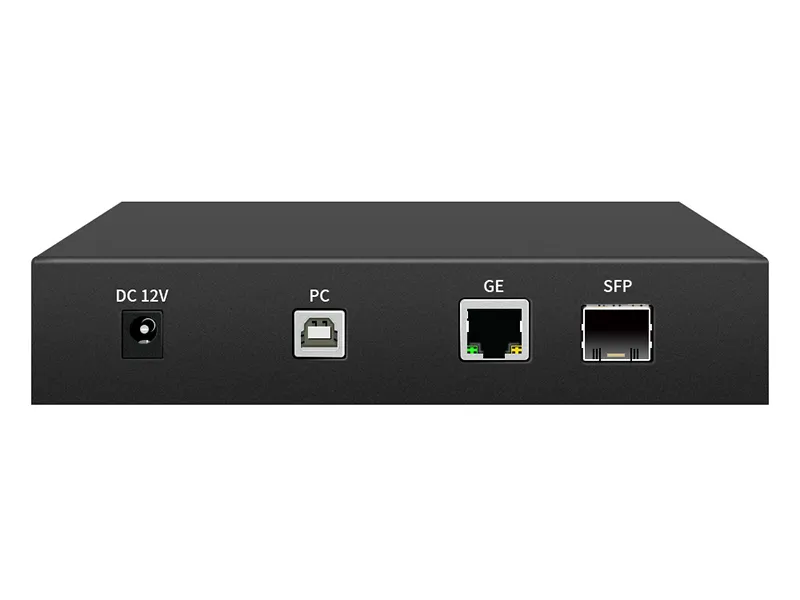

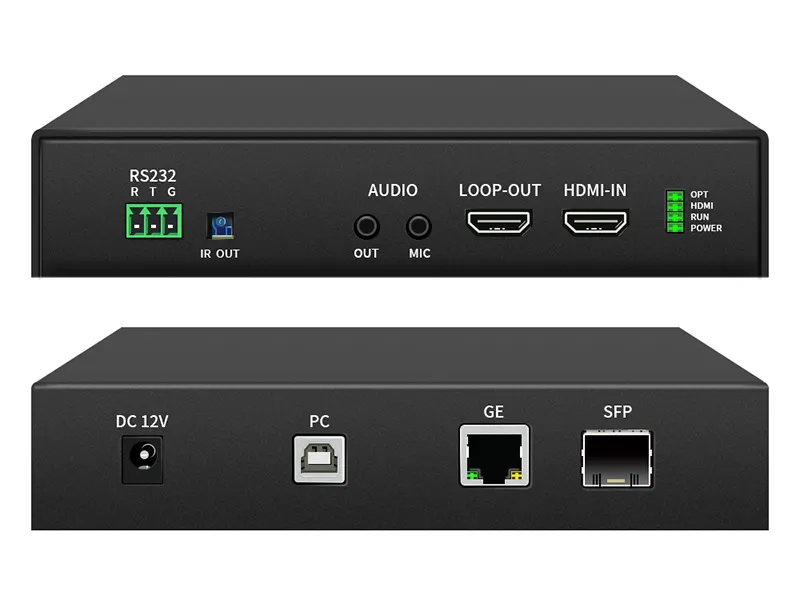

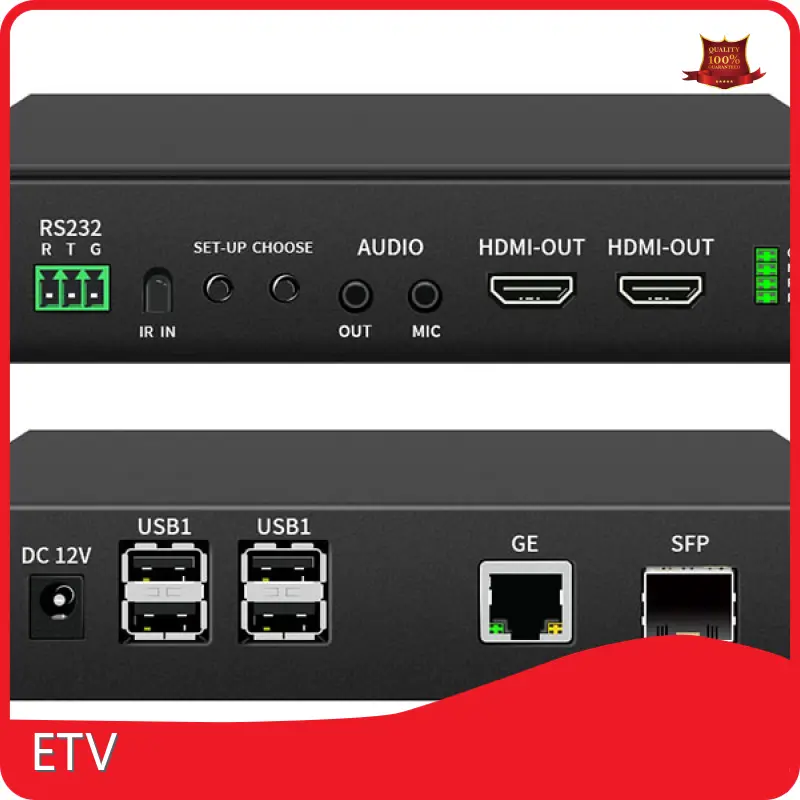

ETV-1620 series multi-service KVM high-definition video optical transceiver is a product that can transmit signals on optical fiber or network transmission media. It can simultaneously transmit KVM signals, 4K&30 image-quality HDMI video signals, independent audio signals, and data services. At the same time, it supports one infrared transmission function, and the device supports USB2.0 interface, which can realize mouse and keyboard.
Realize point-to-point transmission of KVM signals, apply MixMatrix distributed access platform, can realize flexible switching of multiple KVM signals, simple networking, easy installation, low construction cost, can be used in video conferencing, photography, subway monitoring, surgical teaching, distance education, wedding receptions, military exercises and other industries.
● Multiple resolution support: supports multiple resolutions up to 4K@30Hz and below;
● LC optical interface, the maximum transmission rate is 10G, the maximum transmission distance can reach 120Km; RJ45 interface, can transmit 70~100 meters, and can be connected to a switch;
● Automatically identify and configure various display modes;
● Simultaneously compatible with video formats allowed by CCIR such as PAL, NTSC and SECAM;
● Pixel clock maximum 225MHz;
● Built-in automatic equalization and retiming functions, the picture is clear and stable;
● Using V-EDID technology, the transmitter supports EDID self-learning;
● Support HDCP protocol and DDC2B protocol;
● The KVM interface supports USB2.0;
● Support one-way infrared transmission function;
● Video, data, and power interfaces are designed to be lightning-proof and anti-static;
● The equipment adopts a 12V interface design, which is designed to prevent reverse insertion, surge, and high voltage;
● Desktop chassis design, suitable for installation and operation in standard flight boxes and cabinets;
● Compact structure, easy to install, plug and play
|
Model number |
TX |
RX |
|
Parameters |
||
|
Input |
HDMI(4K@30)MIC In |
RS232 MIC IR HDMI LC Optical Interface RJ45 KVM In |
|
Output |
AUDIO RS232 IR HDMI LC Optical Interface RJ45 KVM Out |
HDMI AUDIO Out |
|
Conventional |
||
|
Transfer mode |
Fiber |
|
|
Transmission distance |
20~120km |
|
|
Up to 4K@30Hz |
||
|
Bandwidths |
10.2Gbps |
|
|
Standards-compliant |
HDMI2.1 & HDCP2.2 |
|
|
Maximum power consumption |
10W |
|
|
Operating temperature |
0 ℃~ 45℃ |
|
|
Relative humidity |
0% ~ 90% |
|
|
Power supply |
input:12VDC 1A, 50/60Hz; |
|
|
Overall dimensions(W*H*D) |
151mm x 120mm x 27mm |
|
|
Net Weight(G) |
350g |
|
|
Power supply method |
DC12V |
|
|
Power wastage |
Depending on specific configuration (<20W) |
|
|
Average Trouble-Free Operating Time |
Greater than 100,000 hours |
|
|
Operating temperature |
0°C~+45°C |
|
|
Storage temperature |
-40°C~+85°C |
|
|
Relative humidity |
0~95 % |
|
Company Features
· As a leading hdmi extender optical industry company, ETV is very proud.
· Our company has a full set of facilities for producing and inspecting products. We boast powerful technical advantages and strong research and development capacities. Our company has always adhered to the rigorous quality criteria of the hdmi extender optical production.
· Beijing Yite Video Technology Co., Ltd. will never lose its ambitions and still worked hard on supplying high quality hdmi extender optical. Call!
Product Details
Choose ETV's hdmi extender optical for the following reasons.
Application of the Product
The hdmi extender optical produced by ETV is very popular in the market and is widely used in industry.
ETV is committed to producing quality SDI to fiber converter SDI光纤转换器 HDMI fiber extender HDMI光纤延长器 HDMI to SDI converter、SDI to HDMI conv and providing comprehensive and reasonable solutions for customers.
Product Comparison
Compared with peer products, ETV's hdmi extender optical has the outstanding advantages, mainly reflected in the following aspects.
