Hd Sdi to Fiber Converter Vendor
Company Advantages
· ETV hd sdi to fiber converter is manufactured by skillful professionals using top class techniques and modernized machines.
· The quality of the product has been recognized by the international authority.
· The product is applicable to various fields and has a huge market prospect.
Product Features
★ Supports up to 1920*1080@60HZ, backward compatible with 1080I, 720P and other resolutions;
★ The transmitter has a local loop output, and the receiver has dual signal output;
★ Support 3G/HD/SD-SDI HD digital signal or ASI HD digital signal;
★ Low power consumption, power bank, V port battery can supply power for more than 10 hours;
★ The transmitter can be fixed to the camera, the receiving end can be plugged in for centralized management, centralized power supply, convenient management;
★ Comply with SMPTE424M, SMPTE259M, SMPTE292M, SMPTE297M, SMPTE310, SMPTE305 (SDTI), SMPTE344 standards
★ Comply with DVB-ASI (EN50083-9) interface standard
★ Automatically adapt to SDI 143, 177, 270, 360, 1485Mbps, 2.97Gbps
★ The input/output has cable equalization, which can compensate the loss of cable transmission, and the cable transmission distance can reach 100m (1485Mbps, BELDEN8281 cable)
★ There is a circuit to reduce signal jitter, which can handle distorted signals well
★ The working status is clearly indicated, and the panel is equipped with SDI signal, light signal, and power LED indication
★ Support SMPTE178 standard and pass SDI pathological code test
★ Optional HDMI output at the same time, easy to monitor the SDI signal and send it to the big screen of the studio
★ Industrial grade design, dust-proof, freeze-proof and lightning-proof, high temperature resistance;
★ With a third-party test report, FCC and CE international certification, 3C mandatory certification;
Technical Parameter
| Video interface | BNC（SDI interface） |
| Number of input | 1 channel |
| Local loop out | 1channel with loop out |
| wavelength | 1310nm、1550nm |
| Resolution | 1920*1080@60HZ, backward compatible with 1080I, 720P |
| Transmission rate | Up to 2.97Gbps |
| Recommended SDI video cable distance | 《30m, at 1080p@60HZ |
| Module type | Pluggable SFP optical module |
| Optical fiber interface | LC interface |
| Fiber type | Single mode/Multimode |
| battery | V port battery/power bank |
| Transmission distance | Standard 20km, can be customized 0-100km |
| Power parameters | 5-18VDC/2A |
| Operating temperature | -40℃-70℃ |

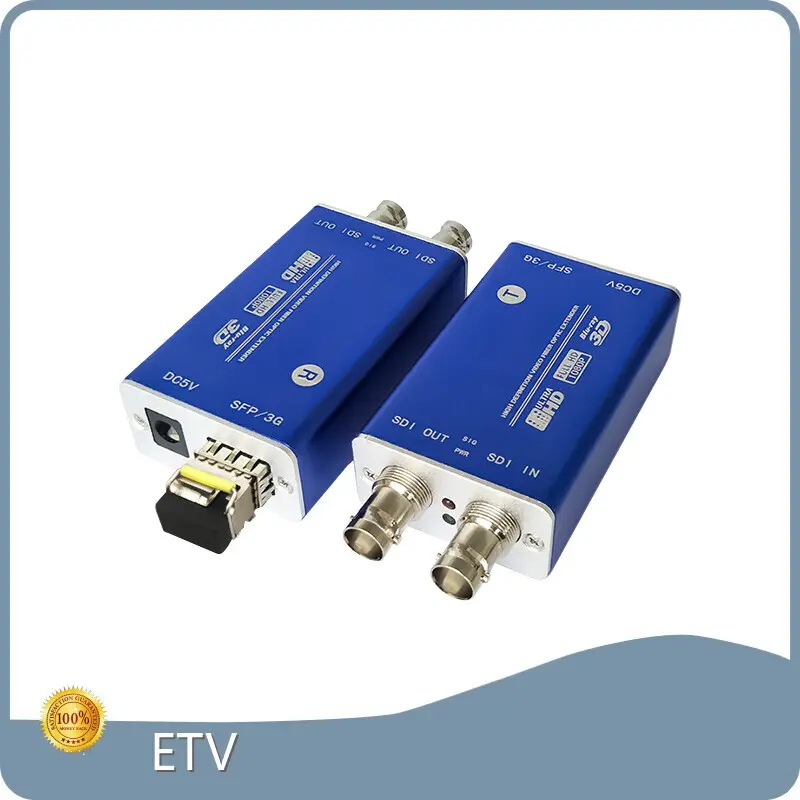

Product Display
Company Features
· Beijing Yite Video Technology Co., Ltd. is a professional producer for hd sdi to fiber converter.
· Beijing Yite Video Technology Co., Ltd. has established many hd sdi to fiber converter production bases and marketing networks in the world. Beijing Yite Video Technology Co., Ltd. is targeting high-end product areas, continuously deepening independent innovation in hd sdi to fiber converter development. Beijing Yite Video Technology Co., Ltd. continues to enhance its competitive advantage by training and improving its faculty members.
· We strive to be at the forefront, provide the highest quality products at competitive prices, and adhere to delivery schedules. Check it!
Product Comparison
ETV's hd sdi to fiber converter has better performances in the following aspects.
