Fiber Video Extender Cost
Product details of the fiber video extender
Product Information
ETV's collection is made up of fiber video extender materials. In our factory, we adopt the most stringent set of quality management system. Matching up with the exact requirements of customers, the product is now widely used in the industry.

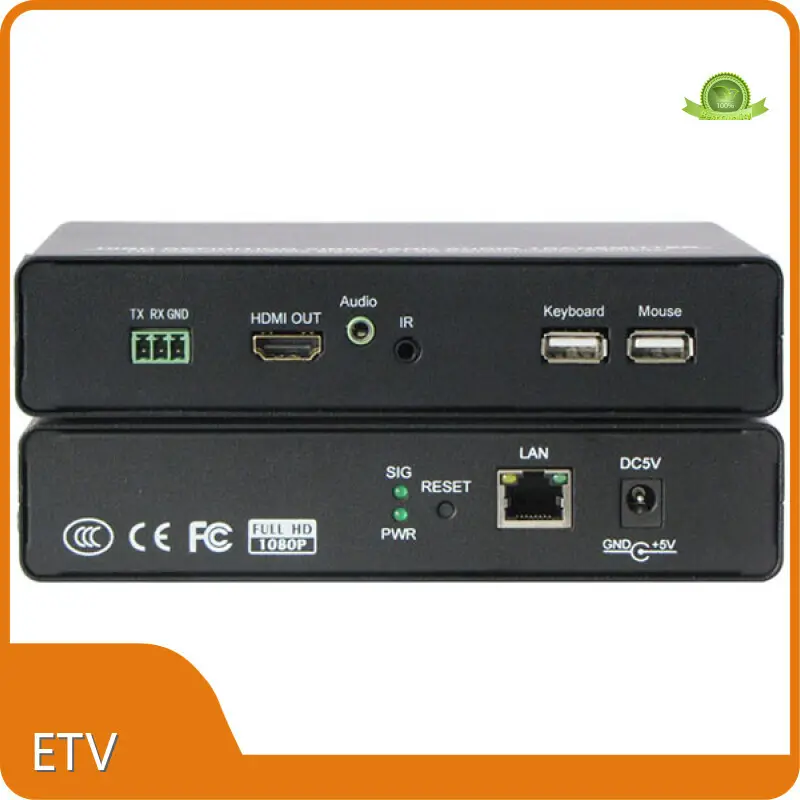

ETV-680 series high-definition KVM network cable extender is an independent research and development chip design of Ante Video Application, which transmits HDMI signals (embedded audio) and USB2.0 signals through CAT5, CAT5E, and CAT6 network cables; supports 3.5 audio and 232 data , IR infrared (optional). HDMI signal supports 1920*1080@60hz. Point-to-point single CAT6 network cable can transmit 1080P@60Hz up to 120 meters; support switch/router and other relay devices cascaded to extend unlimitedly and distribute HDMI signals.
This series of network cable extension transmitters has excellent image processing and transmission capabilities, making signal transmission more smooth and stable. It is a reliable, high-performance, and efficient HDMI signal extension method, which is widely used in industrial control, computer fields and monitoring fields. Large-screen advertising, education, splicing system, bank securities system, etc.
● Support HDMI1.3, compatible with HDCP 1.2 protocol;
● Support USB2.0, realize real-time remote control of mouse and keyboard;
● The network cable complies with the IEEE-568B standard; it can transmit up to 120 meters through the CAT5/5E/6 network cable;
● Support point-to-point transmission, which can be extended indefinitely through the switch;
● One-to-multipoint transmission can be realized through the switch;
● HDMI signal supports up to 1920*1080@60HZ;
● Audio transmission can realize HDMI embedded audio and 3.5 audio through dial switch;
● Support 232 data and IR infrared function optional.
|
parameter |
Description |
|
power supply |
DC5V / 2A |
|
HDM signal |
HDMI 1.3, fully compatible with HDCP |
|
Support resolution |
480i@60Hz、480P@60Hz、576i@50Hz、576P@50Hz、 720P@50/60Hz、1080i@50/60Hz、1080P@50/60Hz |
|
cable |
Unshielded or shielded Category 5/6 network cable (UTP/STP Cat5e/6) |
|
Network cable transmission distance |
HDMI 1080P signal can be transmitted 120 meters using CAT5 network cable |
|
Product power consumption |
Transmitter 3W, receiver 3W |
|
Product Size |
170x106x35mm |
