Fiber Optic to Sdi Converter for Sale
Company Advantages
· ETV fiber optic to sdi converter is made of well-selected materials and has a innovative and aesthetic design.
· fiber optic to sdi converter has all the features that matter on board.
· Only ensuring the work quality of each phrase, the overall quality of fiber optic to sdi converter can be guaranteed.

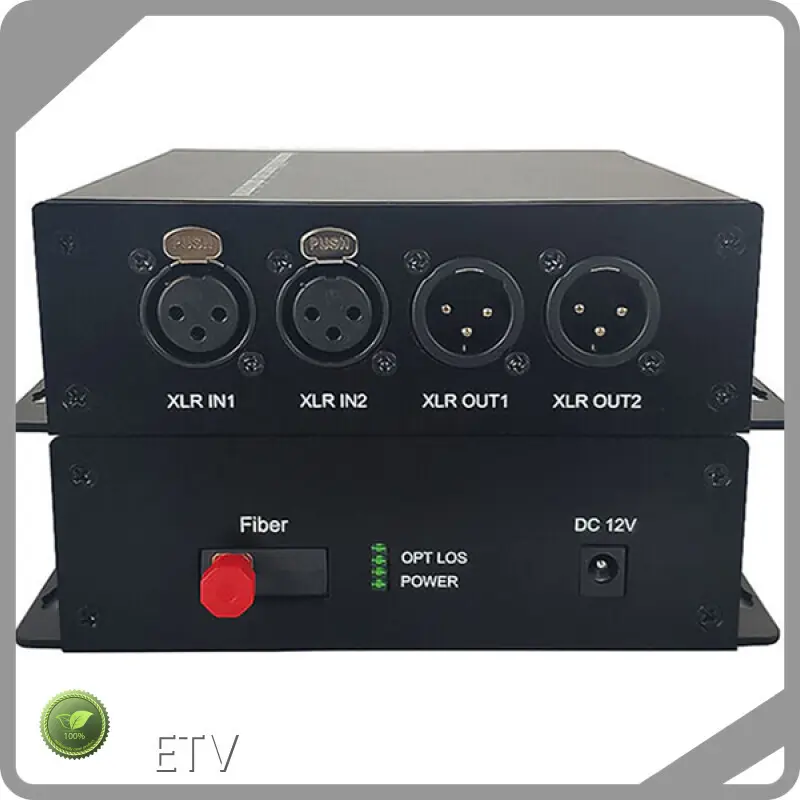

This series of broadcast-grade analog audio digital optical transceiver is composed of audio transmitter and audio receiver, used for high-fidelity transmission of analog audio signal AUDIO. In the transmission process, the analog audio signal AUDIO is converted into a digital signal by A/D and transmitted in a digital manner. This series of optical transceivers can transmit 1, 2, 4, 8, 12, 16 AUDIO analog audio signals.
Yite video broadcast-grade analog audio digital optical transceiver, overcomes the conventional analog frequency modulation, phase modulation, and amplitude modulation optical transceiver when multiple signals are transmitted simultaneously. There is serious mutual interference, easy to be affected by the environment, poor transmission quality, and poor long-term stability. Other shortcomings; single-mode (multi-mode) optional, FC/LC/SC optical port optional, transmission distance can reach 0-100km. The audio interface has five levels of lightning protection, anti-static, anti-surge, and anti-electromagnetic interference.
This series of products are widely used in long-distance radio and television transmission systems, remote multimedia teaching, and intelligent traffic monitoring systems.
● 20bit digital codec;
● Audio output port balance/unbalance automatic conversion; ESD protection, safer and more reliable to use;
● The single-stage transmission distance can reach 100Km;
● The system topology can be point-to-point and point-to-multipoint;
● Large audio dynamic range: the maximum input/output audio can reach +18dBm;
● Optional three-level lightning protection function;
● Easy to open, no need to re-adjust on the circuit and optical path when open;
● The working status is clearly indicated, and the panel is equipped with LED indications for input/output audio, optical signals, internal status, and power supply;
● Optional 1310nm, 1550nm, CWDM or DWDM optical transmission mode, through CWDM optical multiplexing to achieve more signal transmission;
● Industrial-grade design, dust-proof, freeze-proof and lightning-proof, high temperature resistance;
● With third-party inspection reports, FCC and CE international certification, 3C compulsory certification, ISO9001 certification
|
Audio input |
||
|
Number of input channels |
1-16 channel |
|
|
Bandwidth |
20Hz～20 KHz @-0.5 dB |
|
|
Input maximum level |
17.4 VP-P (+18dBm) |
|
|
Channel isolation |
＞ 90 dB @ 1KHz；＞ 90 dB @20KHz |
|
|
Input resistance |
600Ω or high resistance |
|
|
Connector |
XLR or balanced socket |
|
|
Audio output |
||
|
Number of output channels |
1-16channel |
|
|
Output bandwidth |
20Hz～20 KHz @-0.5 dB |
|
|
Maximum output level |
17.4 VP-P (+18dBm) |
|
|
Signal to noise ratio |
＞90dB（Not aggravated） |
|
|
Total harmonic distortion |
＜0.2 % |
|
|
Channel isolation |
＞90 dB @ 1KHz；＞90 dB @20KHz |
|
|
Delay matching |
2 O |
|
|
Amplitude matching |
±0.2 dB |
|
|
Output resistance |
Low resistance |
|
|
Connector |
XLR or balanced socket |
|
|
Optical parameters |
||
|
optical wavelength |
1310 nm |
1550 nm |
|
Optical emission power |
-5±3dBm |
0±3dBm |
|
Optical receiving power |
-28dBm～-3 dBm |
|
|
Optical transmission distance |
0～100 Km |
|
|
Optical connector |
FC/PC（Optional FC/APC、LC/APC、SC/APC） |
|
|
power supply |
Rack type AC85～265V power <20W (optional dual power supply) |
|
|
Size |
19 inch 1-2U chassis 430x230x86mm |
|
Company Features
· Beijing Yite Video Technology Co., Ltd. owns an independent factory to produce fiber optic to sdi converter.
· We have advanced analytical facilities. They help our workers guarantee the accuracy of the analysis results while ensuring the highest level of product consistency. We have adopted an advanced production control system. With the help of this advanced control system, we can effectively manage our orders in real-time and optimize our production times. Our manufacturing plant is equipped with complete facilities for testing products. These testing facilities are introduced per international standards and norms, which allows us to provide the best quality products such as fiber optic to sdi converter.
· We hope to guide the development of the fiber optic to sdi converter market. Get an offer!
Application of the Product
fiber optic to sdi converter of ETV can be used in various scenarios in different fields.
ETV always adheres to the service concept of 'meeting customer needs'. And we are committed to providing customers with a one-stop solution that is timely, efficient and economical.
Product Comparison
The fiber optic to sdi converter of ETV has the following advantages, compared with similar products in the market.
Enterprise Advantages
ETV has experienced and competent management team and technical teams. Besides, we have a variety of advanced equipment. All this promotes product production and corporate development.
With a focus on customers, ETV strives to meet their needs and provide one-stop professional and quality services wholeheartedly.
Our company persists in the concept of 'faithful management, continuous improvement', and the tenet of 'quality oriented, customer first'. Based on this, we seek to provide customers with all-round quality services while achieving considerable development. We look forward to working with all new and old customers to create brilliant future.
ETV, registered in has gone through years of trials and tribulations. We have always grown stronger and has finally become the leader of the industry.
The sales network of our products is spread all over the world.
