Product details of the fiber optic to ethernet converter box
Product Description
As one of the advanced characteristics, fiber optic to ethernet converter box has won warm praise from customers. Except for complete specifications, our fiber optic to ethernet converter box is rich in color. With strict quality assurance, our customers have no worry about buying fiber optic to ethernet converter box.

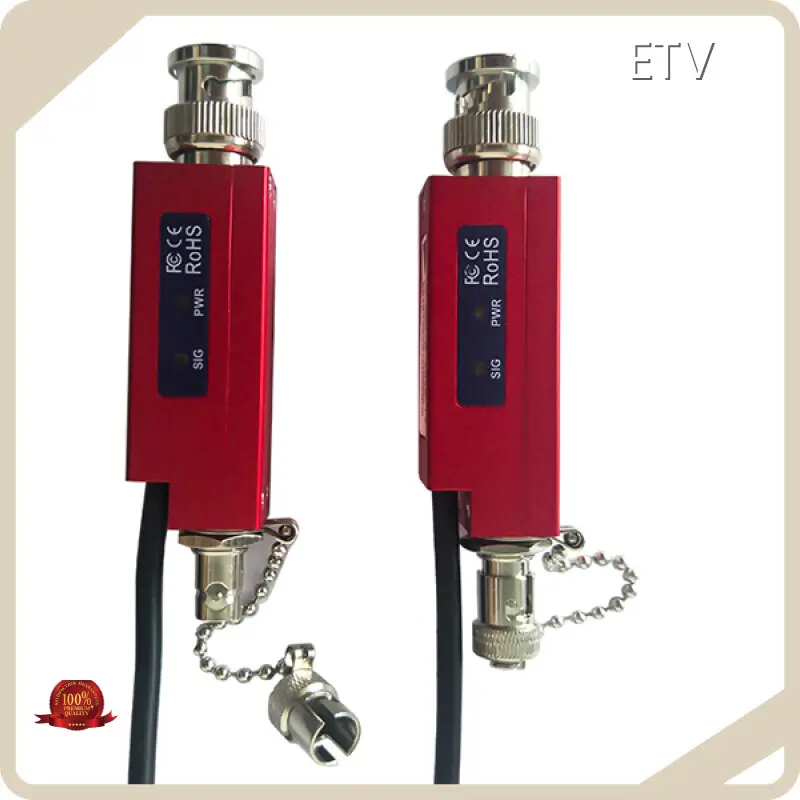

This series of mini 3G/HD/SD-SDI channel high-definition digital video optical transceiver modules are miniature fiber optic serial digital video transmission modules that provide the industry's widest digital rate range while maintaining the signal quality required by broadcasters. From 2.97Gbps rate 3G-SDI high-definition digital signal, 1485Mbps rate HD-SDI high-definition digital video signal, it is compatible with the transmission of SD-SDI standard definition digital video signal or ASI digital video signal at four rates: 143, 177, 270, 360Mbps.
Supports up to 1080p@60HZ, ST lock optical port. The equipment is smaller in size, the ST lock optical port is more stable, and the SDI interface has five levels of lightning protection, anti-static, anti-surge, and anti-electromagnetic interference. Applied to sports program production, golf, skiing, racing, etc., e-sports competitions, concerts, live TV programs, directing, etc.
● Supports up to 1920*1080@60HZ, backward compatible with 1080I, 720P and other resolutions；
● Support 3G/HD/SD-SDI HD digital signal or ASI HD digital signal；
● Low power consumption, the USB port of the video device can supply power or the 20,000 mAh power bank can supply power for more than 10 hours；
● Smaller size, the transmitter can be fixed to the camera, the receiving end can be inserted into the card centralized management, centralized power supply, easy to manage；
● Single-mode and multi-mode can be transmitted, single-mode transmission can reach 20km, multi-mode transmission can reach 300 meters；
● Comply with SMPTE424M, SMPTE259M, SMPTE292M, SMPTE297M, SMPTE310 SMPTE305 (SDTI), SMPTE344 standards；
● Comply with DVB-ASI (EN50083-9) interface standard；
● Automatically adapt to SDI 143, 177, 270, 360, 1485Mbps, 2.97Gbps；
● The input/output has cable equalization, which can compensate for the loss of cable transmission, and the cable transmission distance can reach 100m (1485Mbps, BELDEN8281 cable)；
● There is a circuit to reduce signal jitter, which can handle distorted signals well.；
● The working status indication is clear, and the panel is equipped with LED indicators for SDI signal, optical signal, and power supply.；
● Support SMPTE178 standard, pass SDI decoding test ；
● Industrial-grade design, dust-proof, freeze-proof, lightning-proof, high temperature resistant；
● With third-party test reports, FCC and CE international certification, 3C compulsory certification.
|
Video interface |
BNC (SDI interface) |
|
Input Output |
1 channel SDI signal |
|
Wavelength |
1310nm, 1550nm |
|
Resolution |
1920*1080@60HZ, backward compatible with 1080I, 720P |
|
Transmission rate |
Up to 2.97GBPS |
|
Recommended SDI video cable distance |
"100m, at 1080p@60HZ |
|
Optical fiber interface |
ST optical port |
|
Fiber type |
Single mode/multi mode |
|
Battery |
V-port battery/power bank |
|
Transmission distance |
Single mode 20km, multi mode 300 meters |
|
Power parameters |
5VDC/1A |
|
Operating temperature |
-40℃-70℃ |
Company Advantage
• ETV possesses advantageous geographical position transportation here is convenient for the direct buses and nearby subways.
• Our company thinks highly of talents management and scientific and technological innovation. Therefore, our talents team is of high technical level and strong management ability.
• ETV's sales network has basically covered all major cities in the country. In addition, the products are also exported to Southeast Asia, the Middle East, South America, and other overseas regions.
• After the development for years, ETV finally makes a figure in the industry.
The products we produced are of high quality and reasonable price. If needed, please contact us!
