Fiber Optic Converter - - ETV
Company Advantages
· Our fiber optic converter products cater to different styles of dinning occasions.
· The competitive advantages of this product are as follows: long service life, good performance and excellent quality.
· The product is applicable in the industry with its compatible advantages.

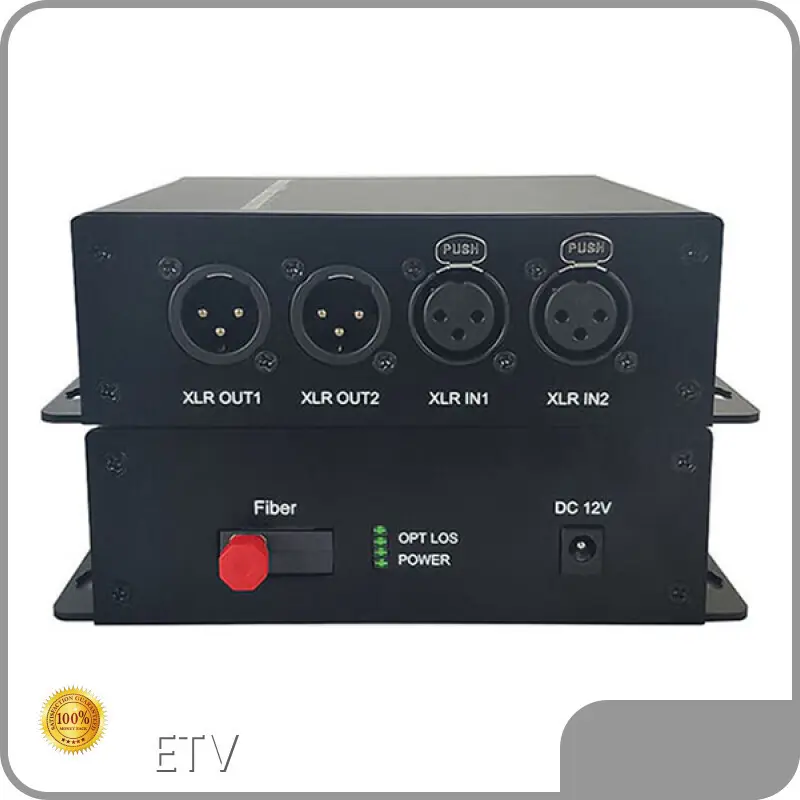

Broadcast-quality analog audio digital fiber optic extender overcomes the shortcomings of conventional analog FM, PM, and AM optical transceivers, such as serious mutual interference when transmitting multiple signals together, easy to be affected by the environment, poor transmission quality, and poor long-term stability; single-mode (multimode) optional, FC/LC/SC optical port optional, transmission distance up to 0-100km; audio interface with five levels of protection against lightning, static electricity, surge protection, and electromagnetic interference. Anti-static, anti-surge, anti-electromagnetic interference.
This series of products are widely used in long-distance broadcasting and television transmission systems, remote multimedia teaching, and intelligent transportation monitoring systems and other fields.
● 20bit digital codec;
● Audio output port balanced/unbalanced automatic conversion; ESD protection, safer and more reliable use;
● Single-stage transmission distance up to 100Km;
● System topology can be point-to-point and point-to-multipoint;
● Large audio dynamic range: maximum input/output audio up to +18dBm;
● Optionally provide three-level lightning protection;
● Easy to turn on, no need to readjust on the circuit and on the optical path when turning on;
● Clear indication of working status, the panel is equipped with LED indication of input/output audio, optical signal, in-unit status and power supply;
● Optional 1310nm, 1550nm, CWDM or DWDM optical transmission methods, through the CWDM optical multiplexing to achieve more signal transmission;
● Industrial-grade design, dust-proof, frost-proof, lightning-proof, and high temperature resistant;
● With third-party test report, FCC and CE international certification, 3C mandatory certification, ISO9001 certification;
| Audio input | |
| Number of input channels | 1-16 channels |
| Bandwidth | 20Hz～20 KHz @-0.5 dB |
| Input Maximum Level | 17.4 VP-P (+18dBm) |
| Channel Isolation | ＞ 90 dB @ 1KHz;＞ 90 dB @20KHz |
| Input resistance | 600Ω or high resistance |
| Connectors | XLR or balanced sockets |
| Audio output | |
| Number of output channels | 1-16 channels |
| Output bandwidth | 20Hz～20 KHz @-0.5 dB |
| Maximum Output Level | 17.4 VP-P (+18dBm) |
| Signal-to-noise ratio | >90dB (unweighted) |
| Total Harmonic Distortion | ＜0.2 % |
| Channel Isolation | ＞90 dB @ 1KHz＞90 dB @20KHz |
| Delayed matching | 2 |
| Output resistance | low resistance |
| Optical path parameters | |
| Optical wavelength | 1310 nm/1550 nm |
| Optical launch power | -5±3dBm/0±3dBm |
| Optical Receiving Power | -28dBm～-3 dBm |
| Optical transmission distance | 0～100 Km |
| Optical connector | FC/PC (optional FC/APC, LC/APC, SC/APC) |
| Power source | Rack-mounted AC85～265V (optional dual power supply) Power <20W |
| Size | 159mm*138mm*45mm Box: 284x202x84mm 19-inch 1-2U Chassis 430x230x86 |
Company Features
· Beijing Yite Video Technology Co., Ltd. is internationally competitive in the fiber optic converter field.
· ETV has exceptional technology and ensures that the good performance of fiber optic converter. ETV utilizes innovative technology to create fiber optic converter.
· As an experienced manufacturer of fiber optic converter, we will surely satisfy you. Get price!
Application of the Product
The fiber optic converter produced by our company can be used in many fields.
ETV has established a professional technical team. They can provide customers with targeted processes and solutions. Based on this, the problems of customers can be better solved.
Enterprise Advantages
Our employees are mainly composed of young people with outstanding professional skills and experienced experts. They have the good team spirit and ensure the efficient operation and our rapid development.
ETV has established a complete sales network to provide quality services for customers.
ETV's enterprise spirit is to be strict and pragmatic and innovative. The business concept is to develop steadily based on honesty. We improve economic efficiency with technological innovations. Our goal is to provide consumers with better products and more professional services.
Established in our company has a history of years. We have a profound cultural heritage, strong comprehensive strength, strong economic strength and abundant human resources. All this lays a firm foundation for advancement and makes us steadily move forward in the economic tide.
In recent years, ETV has continuously optimized the export environment and has striven to expanded export channels. Besides, we have actively opened up the foreign market to change the simplex situation of the sales market. All these contribute to the increment of market share in the international market.
