Fiber Optic Converter Cost
Product details of the fiber optic converter
Product Information
The unique design makes ETV fiber optic converter more competitive in the industry. fiber optic converter has quickly developed with the good products performance. It is promised to reach a wider market than the previous one.
Product Features
★ Supports up to 1920*1080@60HZ, backward compatible with 1080I, 720P and other resolutions;
★ The transmitter has a local loop output, and the receiver has dual signal output;
★ Support 3G/HD/SD-SDI HD digital signal or ASI HD digital signal;
★ Low power consumption, power bank, V port battery can supply power for more than 10 hours;
★ The transmitter can be fixed to the camera, the receiving end can be plugged in for centralized management, centralized power supply, convenient management;
★ Comply with SMPTE424M, SMPTE259M, SMPTE292M, SMPTE297M, SMPTE310, SMPTE305 (SDTI), SMPTE344 standards
★ Comply with DVB-ASI (EN50083-9) interface standard
★ Automatically adapt to SDI 143, 177, 270, 360, 1485Mbps, 2.97Gbps
★ The input/output has cable equalization, which can compensate the loss of cable transmission, and the cable transmission distance can reach 100m (1485Mbps, BELDEN8281 cable)
★ There is a circuit to reduce signal jitter, which can handle distorted signals well
★ The working status is clearly indicated, and the panel is equipped with SDI signal, light signal, and power LED indication
★ Support SMPTE178 standard and pass SDI pathological code test
★ Optional HDMI output at the same time, easy to monitor the SDI signal and send it to the big screen of the studio
★ Industrial grade design, dust-proof, freeze-proof and lightning-proof, high temperature resistance;
★ With a third-party test report, FCC and CE international certification, 3C mandatory certification;
Technical Parameter
| Video interface | BNC（SDI interface） |
| Number of input | 1 channel |
| Local loop out | 1channel with loop out |
| wavelength | 1310nm、1550nm |
| Resolution | 1920*1080@60HZ, backward compatible with 1080I, 720P |
| Transmission rate | Up to 2.97Gbps |
| Recommended SDI video cable distance | 《30m, at 1080p@60HZ |
| Module type | Pluggable SFP optical module |
| Optical fiber interface | LC interface |
| Fiber type | Single mode/Multimode |
| battery | V port battery/power bank |
| Transmission distance | Standard 20km, can be customized 0-100km |
| Power parameters | 5-18VDC/2A |
| Operating temperature | -40℃-70℃ |

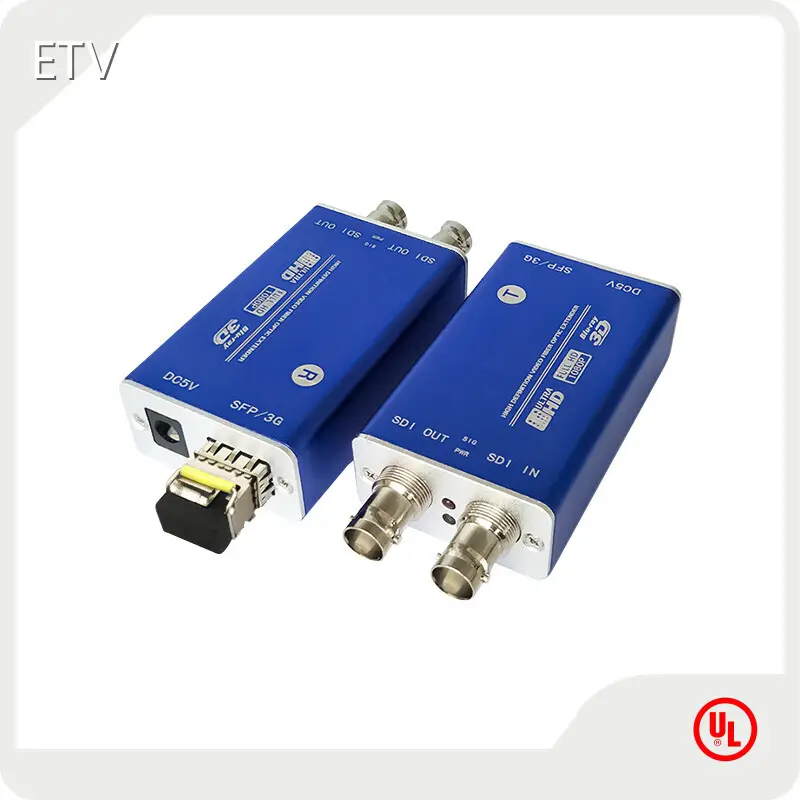

Product Display
Company Advantage
• ETV has established various sales channels in the local area. We not only distribute products to major local markets and stores but also sell products to many foreign countries.
• Our company has a group of aspirant technical talents and business elites. Apart from that, we cooperate with experienced experts at home and abroad to develop new products. All that guarantees the high quality of each product.
• Since its establishment in our company has walked through the journey of years. Nowadays, we create a large-scale management and gain rich management experience.
Do you need help? Contact ETV immediately to solve the problems
