Product details of the fiber optic cable reel


Product Information

The raw materials of ETV fiber optic cable reel are sourced from the reputed vendors of the market. To make high-quality fiber optic cable reel needs the aspiration of our staff. This ETV branded product will find a ready market overseas.

Product Overview
Product Features
Product Parameters
Product Display

Optical fiber adapter (also known as flange) is the centering connection component of the optical fiber movable connector.  The adapter with two different port interfaces is called a conversion adapter.  The optical fibers are connected by the adapter through its internal open sleeve.  We provide various High-performance adapters of various shapes to ensure the highest connection performance between fiber jumpers.  In order to be fixed on various boards, our company has designed a variety of fine fixing flanges.  Transformation adapters can connect different types of fiber jumpers Interfaces, dual or multi-connection can increase the installation density.  No matter in material selection, dimensional tolerance, and aesthetics, it reflects the high quality of Yite Video

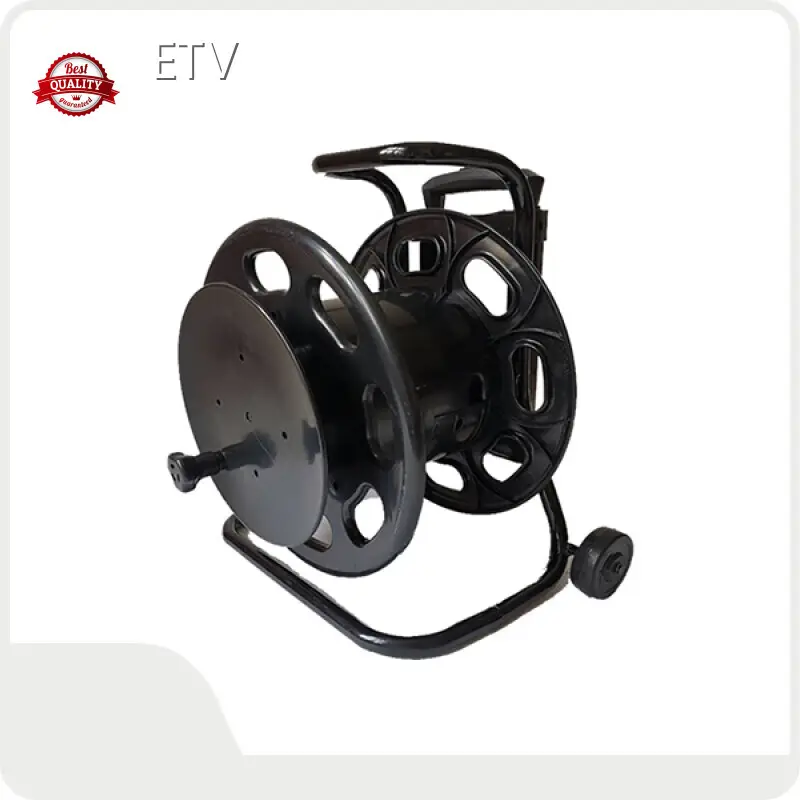

Optical fiber winding drum (also known as mobile optical cable drum) is mainly used for winding optical fiber, signal lines, power cables and other cables.  The winding drum uses steel pipes as the skeleton and imported engineering plastics as the roulette, which is lightweight and durable;  pull rods and wheels The surface is spray-coated, beautiful and atmospheric, with a plastic plate body, adjustable pull rod and pulley.

● Good compatibility, high reliability and stability

Ceramic or bronze conduit, high dimensional accuracy

Good repeatability and interchangeability

Good wear resistance and good temperature characteristics

Flexible and convenient to use

Audio input
Number of input channels 1-16 channels
Bandwidth 20Hz~20 KHz @-0.5 dB
Input Maximum Level 17.4 VP-P (+18dBm)
Channel Isolation > 90 dB @ 1KHz;> 90 dB @20KHz
Input resistance 600Ω or high resistance
Connectors XLR or balanced sockets
Audio output
Number of output channels 1-16 channels
Output bandwidth 20Hz~20 KHz @-0.5 dB
Maximum Output Level 17.4 VP-P (+18dBm)
Signal-to-noise ratio >90dB (unweighted)
Total Harmonic Distortion <0.2 %
Channel Isolation >90 dB @ 1KHz>90 dB @20KHz
Delayed matching 2
Output resistance low resistance
Optical path parameters
Optical wavelength 1310 nm/1550 nm
Optical launch power -5±3dBm/0±3dBm
Optical Receiving Power -28dBm~-3 dBm
Optical transmission distance 0~100 Km
Optical connector FC/PC (optional FC/APC, LC/APC, SC/APC)
Power source Rack-mounted AC85~265V (optional dual power supply) Power <20W
Size 159mm*138mm*45mm Box: 284x202x84mm 19-inch 1-2U Chassis 430x230x86
