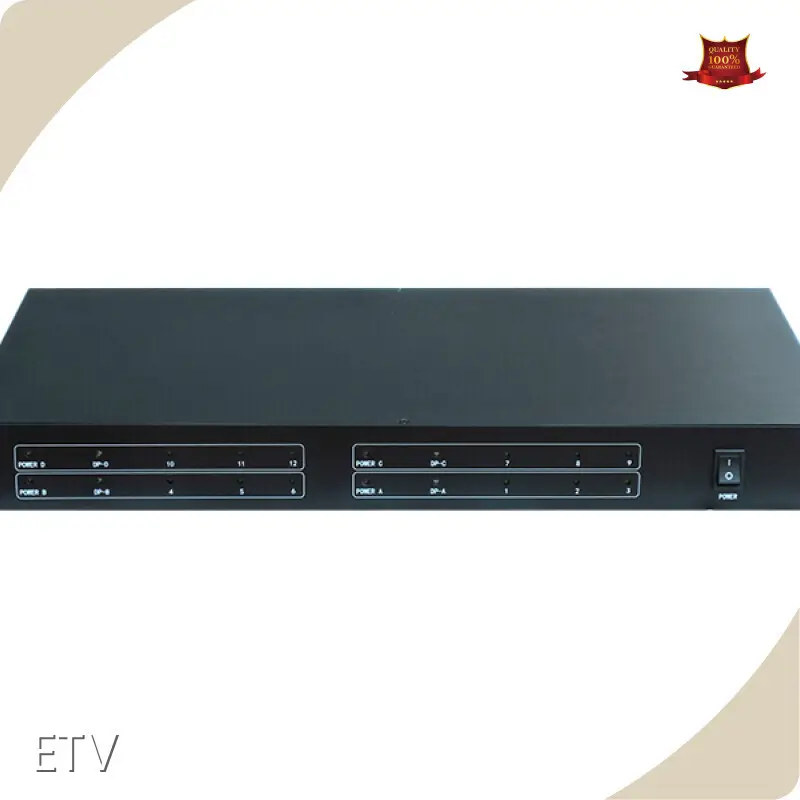

Multi-screen treasure is a multi-screen point-to-point splicer, single machine support customized 4-way DP1.4 input, 12-way HDMI output, support multi-machine cascade, customize more way HDMI output.

This product series of multi-screen splicer with EDID transmitting function, the computer can read the EDID information of the display terminal through the multi-screen treasure, and output with the display to match exactly, lossless resolution. With the multi-head graphics card can be the overall output of a large, pixel lossless, point-to-point ultra-high resolution to the large screen splicing wall;

The product with its point-to-point display as well as ultra-high refresh rate display characteristics, so that it is widely used in exhibition displays, big data and other applications that require ultra-large resolution and other places.

3.1, 3-screen 1x3 splicing mode total resolution 5760x1080@60HZ or other resolutions.

3.2, Six-screen 2x3 stitching mode with total resolution of 5760x2160@60HZ.

3.3, Twelve-screen 2x6 splicing mode with total resolution of 11520x2160@60HZ.

● Supports multiple modes of point-to-point splicing, 1x3, 1x5, 1x6, 1x8, 1x9, 2x3, 2x5, 2x6, 3x3, 4x3, and so on;

● 4 DP1.4 inputs, also backward compatible with DP1.2, compatible with TYPE-C signals;

● Supports fixed and automatic recognition of the EDID function of the display side, and outputs the matching resolution;

● In conjunction with a multi-head graphics card can form an ultra-high resolution splicing wall, such as the whole wall 15360x4320@60HZ, and so on;

● Ultra-low function consumption, energy saving and environmental protection, can work 365 days x 24 hours uninterruptedly;

● Standard 1U chassis, a single machine can complete a maximum of 12 display units point-to-point splicing, multi-machine can be completed on a larger scale point-to-point splicing.

4.1 Automatic recognition of EDID

When each group of HDMI output connected to three monitors, multi-screen splicer will feedback to the computer graphics card a horizontal sum of the resolution EDID signal, so that the graphics card output a corresponding resolution. For example, three monitors physical resolution of 1920x1080, each group of boards will feedback to the graphics card a 5760x1080 EDID information, so that the computer graphics card output a 5760x1080 resolution; connected to the four groups of signals, the display has four 5760x1080 display; such as the physical resolution of the monitor is 1024x768, the computer graphics card output a resolution of 3072x768.

4.2. Fixed EDID function

Multi-screen splicer can fix the EDID signal of each output port, so that the computer can stably output the required resolution. For example, the EDID of each output port is fixed to 1080P, then each group of boards will feedback to the graphics card a EDID information, so that the computer graphics card output a resolution of 5760x1080.

Multi-camera cascade to form a large resolution splicing wall

With the increase of big data and remote monitoring year by year, the traditional 1080P and 4K splicer can no longer meet the demand for ultra-high resolution, and through the multi-screen treasure with multiple graphics cards can make a single computer to complete the ultra-large resolution on the splicing wall and display richer details and more content.

Reference case (3x6 mode, using two multi-screen splicer, to achieve 11520x3240@60HZ super large resolution splicing)

Ultra-low power

The product adopts ultra-low power consumption design, no fan cooling, energy saving and environmental protection, no noise pollution, adapted to a variety of noise control is more stringent meeting or other places.

System Topology
