ETV Kvm Matrix Switcher Manufacturers
Product details of the kvm matrix switcher
Quick Overview
The best of raw materials, technology, equipment and personnel are used for the production of ETV kvm matrix switcher. The product has undergone rigorous testing during the trial production phase. kvm matrix switcher of ETV can be widely used in various fields. The increasing competitiveness of ETV also motivate the kvm matrix switcher market to develop better.
Product Description
Compared with general products, the kvm matrix switcher we produce have the following advantages.
HDMI matrix specialised in the use of high-performance digital processing chip, transmission distance of up to 30 m HDMI matrix using high-performance digital processing chip, transmission speed of up to 10.2 Gbps, backward compatible with 480p, 720p, 1080i, 1080p and other resolutions; HDCP 1.4; support for Blu-ray DVD24/50/60fs HDCP 1.4; support for Blu-ray DVD24/50/60fs/HD-DVD/xvYCC; support for multi-channel switching at the same time; support for multi-level cascade, full SMD SMD process, the unique ESD static protection; easy to install, plug-and-play; switching flexibility: manual, remote control, computer software, networks, and other control methods, the product is widely used in the military, telecommunications, power, oil, scientific research and other high-demanding application areas.
● Supports 1080P/60Hz, HDMI version 2.0, HDCP1.4 standard
● Front panel LCD status display, can display the switching status of each channel of the device
● Power failure site switching memory protection function; unique ESD electrostatic protection function
● The device comes with EDID copy function (currently supports HDMI, DVI).
● Supporting status monitoring and fault judgement when there is no signal.
● Compatible with remote control equipment (such as: Crestron, fast, AMX and other domestic and foreign all the central control)
● Fast response switching time, easy installation, plug and play
● Support multi-channel simultaneous switching, address setting and other functions
● Supports support for High Definition Television (HDTV) signals
● Compatible with remote control equipment (such as: Crestron, fast, AMX and other domestic and foreign all the central control)
● Easy installation, plug and play

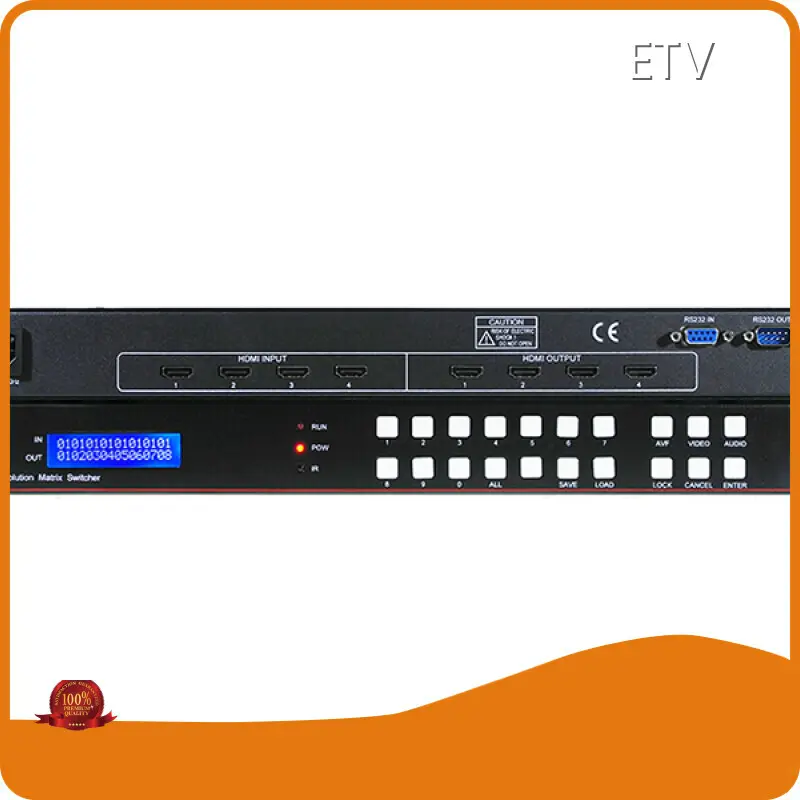

HDMI 4x4
HDMI 8x8
HDMI 16X16
|
Bandwidth |
10.2 Gbps (full load) |
|
Resolution |
3840*2160/60Hz; 1920*1200/60Hz; 1080P; 3D & 720P, etc. |
|
Protocol |
Support HDMI2.0 HDCP1.4 standard; backward compatible with HDMI1.3bDVI1.0 and so on. |
|
Maximum transmission delay |
5nS (±1nS) |
|
Switching speed |
150ns (maximum time) |
|
Signal type |
HDMI-A all-digital T.M.D.S. signal in HDMI 2.0 specification |
|
Transmission distance |
1920*1080P input 30m, output 30m |
|
EDID Management |
Supports copy input port EDID passthrough. |
|
Output impedance |
differential 100Ω |
|
Output swing |
800mVp-p |
|
Connector |
Type-A HDMI locking female connector |
|
Serial interface |
RS232, 9-hole D-Sub connector, ports 2, 3 and 5 are straight through. |
|
Serial parameters |
9600bps, 8-bit data, 1 start bit, 1 stop bit, no parity, no flow control |
|
Power consumption |
20 ~ 150W (depending on the specific model to determine the power consumption) |
|
Temperature |
0℃～45℃ |
|
Power supply |
AC100～220V, 50/60Hz (factory default input voltage AC220V, other input voltage please specify when ordering) |
|
Control mode |
panel, remote control, RS232 |
|
1U chassis size |
432 x 245 x 44mm (L x W x H) |
