ETV Hd Sdi to Fiber Optic Converter Hd Sdi to Fiber Optic Convertersupply
Product details of the hd sdi to fiber optic converter
Quick Overview
ETV hd sdi to fiber optic converter is manufactured by our experts using advanced technology with superior grade materials. The stable performance and long lifespan make the product stand out from competitors. The hd sdi to fiber optic converter produced by ETV is very popular in the market and is widely used in industry. With the time going by, ETV has gradually develops mature management system.
Product Description
Compared with similar products on the market, the hd sdi to fiber optic converter of ETV has the following advantages.

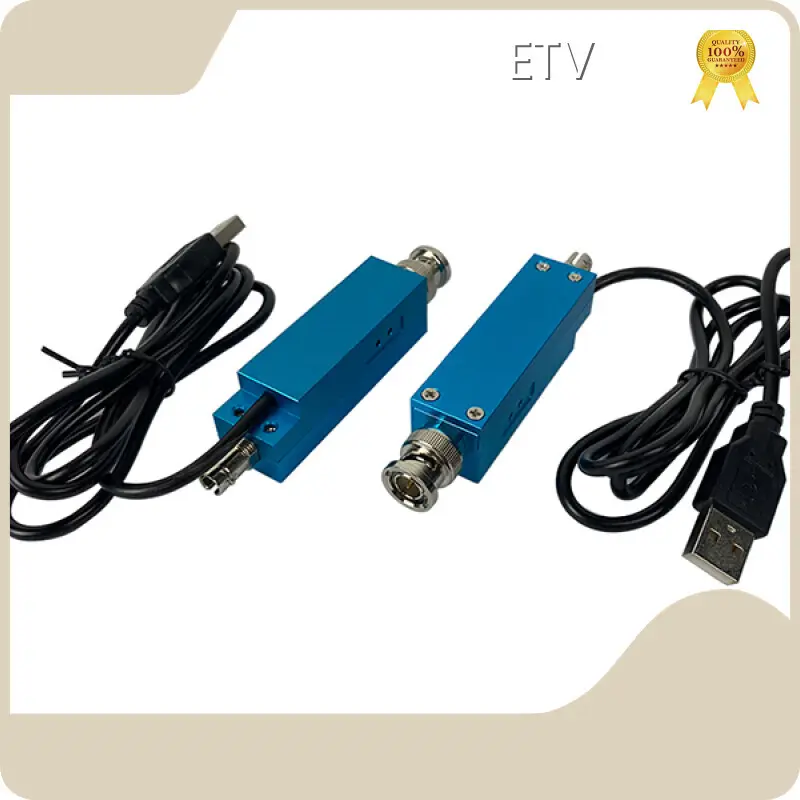

The 12G-SDI ultra-high-definition video optical transceiver is developed by our company and has independent intellectual property rights. Absorbing the advantages of similar products at home and abroad, and combining the actual needs of the market, the 4K60Hz ultra-high-definition video optical transceiver has been developed to achieve a delay-free, uncompressed, and high-quality signal extension of 10 kilometers.
12G-SDI ultra-high-definition video optical transceiver has built-in serial clock recovery, signal equalization and line drive, input automatic detection signal 12G-SDI/6G-SDI/3G-SDI/HD-SDISDI/ASI, in line with SMPTEST2082-1 (12GUHD-SDI), ST2081-1 (6GUHD.SDI), SMPTE424M, SMPTE292M, SMPTE259M, SMPTE297MSMPTE305M, SMPTE310M standard; 12G-SDI ultra-high-definition video optical transceiver, equipment power consumption is less than 1.5W, using USB port power supply, support USB power supply system, strong flexibility in use; 12G-SDI ultra-high-definition video optical transceiver circuit board adopts multi-layer design, the circuit is stable and reliable, and the anti-interference ability is strong; all components, including connectors, use internationally renowned The products of famous manufacturers are of reliable quality; the aluminum material shell design is corrosion-resistant, and it has outstanding thermal and electrical conductivity.
● Support ST-2082-1 (12G), ST-2081-1 (6G), ST-424 (3G), ST-292 (HD) and ST-259 (SD);
● Compatible with DVB-ASI and AES10 (MADI);
● Clock restorer is locked to 11.88Gbps, 5.94Gbps, 2.97Gbps, 1.48Gbps or 1.001 divider sub-rate and 270Mbps SMPTE Each signal input has an automatic cable equalization (EQ) function, and the output has a drive (CD) function.
● It supports the optical fiber interface to be dust-proof and has an anti-shedding design to avoid the loss of the dust cover.
● It supports single-mode single-fiber transmission for 10 kilometers, supports status light display, supports USB device power supply, supports status light indication, plug and play, no debugging required.
|
Optical index |
|
|
Wavelength |
1270nm/1330nm(Single mode single fiber) |
|
Fiber type |
9/125um Single mode |
|
Rate |
12Gbps |
|
Emitted optical power |
0~-3dB |
|
Receiving sensitivity |
-12dB |
|
Optical interface |
ST |
|
Transmission distance |
10km |
|
Power index |
|
|
Input current |
≤300MA |
|
Power index |
5V |
|
Overload current protection |
Support |
|
Power physical interface |
USB |
|
Power consumption |
<1.5W |
Company Advantages
Beijing Yite Video Technology Co., Ltd. is a company that mainly manages the business of SDI to fiber converter SDI光纤转换器 HDMI fiber extender HDMI光纤延长器 HDMI to SDI converter、SDI to HDMI conv. Our company is committed to becoming a socially respected enterprise. We insist on the tenet of 'security is based on quality, and quality is rooted in sincerity', and take 'honest and credit, pragmatic development, and win-win cooperation' as the business philosophy. Based on the implementation of advanced talent reserve strategy, ETV introduces a large number of outstanding technical and management talents. They contribute to our development. In the early stage, we conduct a communication survey to gain an in-depth understanding of the customer's problems. Therefore, we can develop solutions that best suit the customers based on the results of the communication survey.
For bulk purchase of the products, please contact us.
