Digital Video Signals by ETV
Company Advantages
· ETV digital video signals is designed in accordance with international standards, using high grade raw material.
· The long-lasting and stable performance makes this product a great advantage in the industry.
· As a distinguished digital video signals supplier, ETV really focuses on the quality assurance of the products.

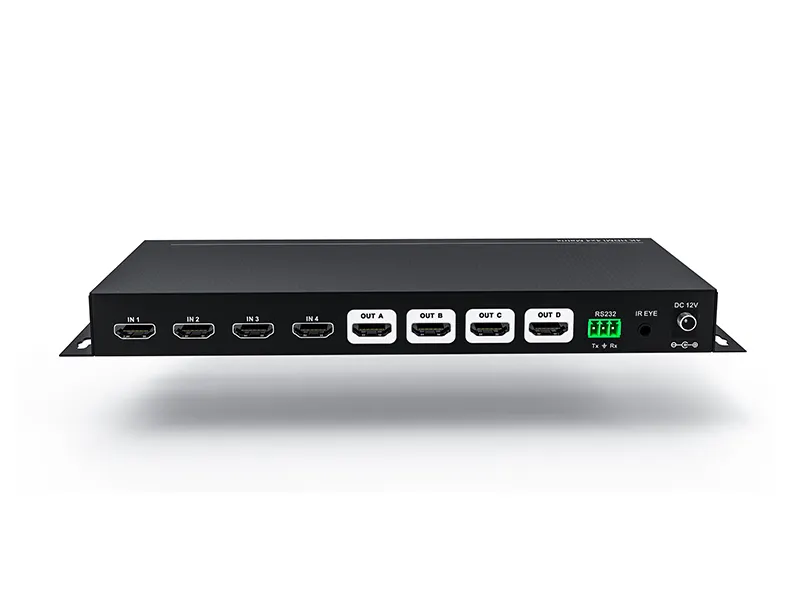

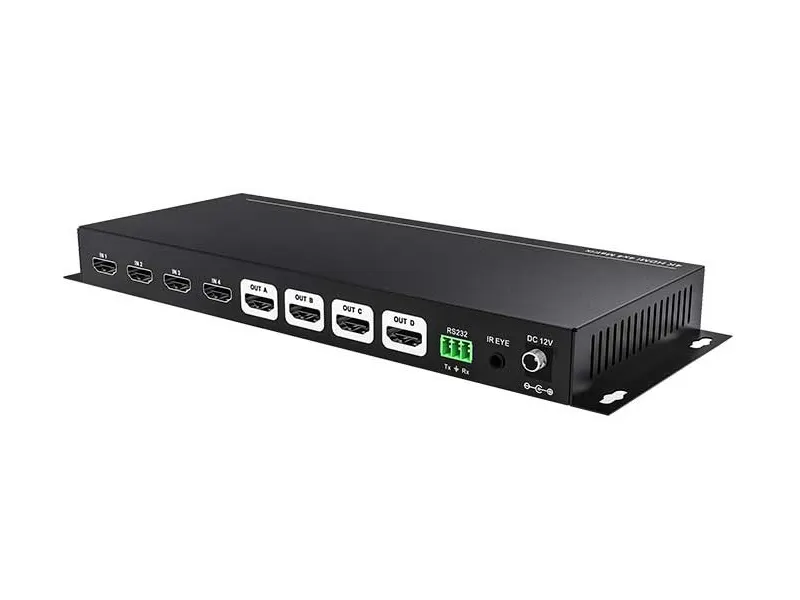

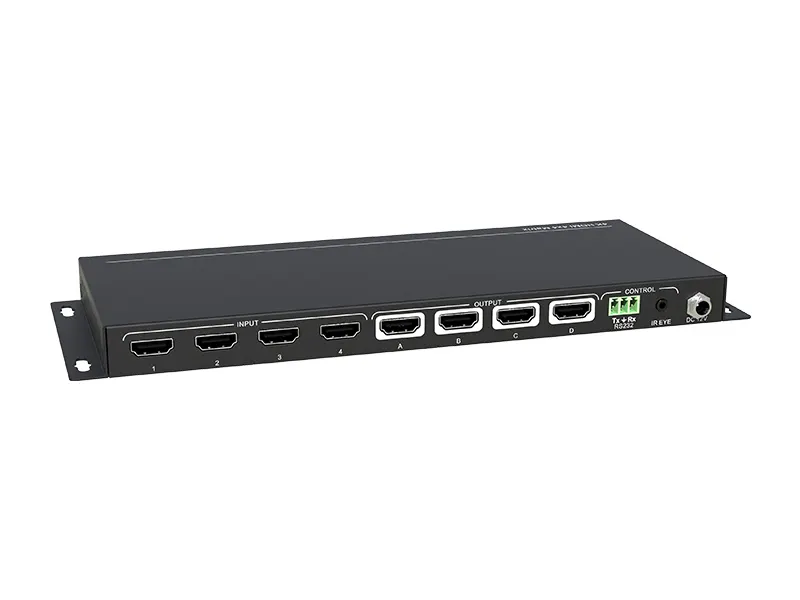

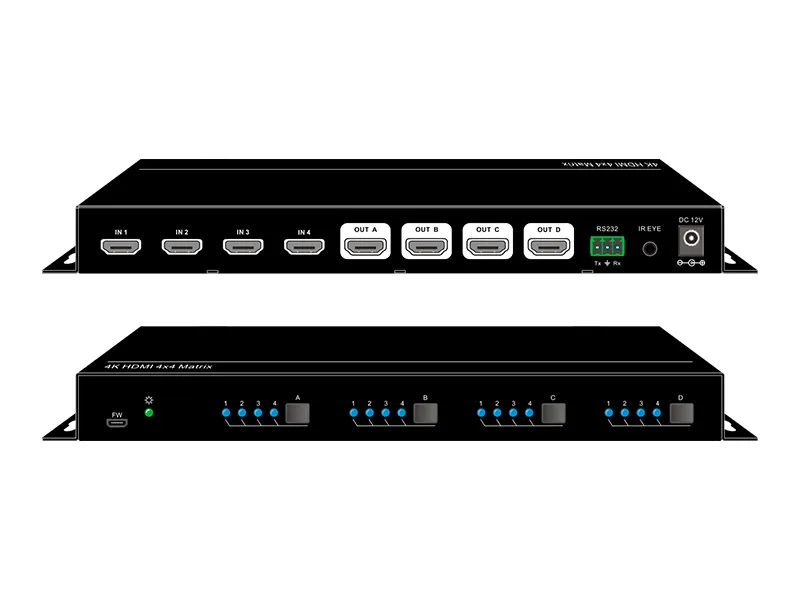

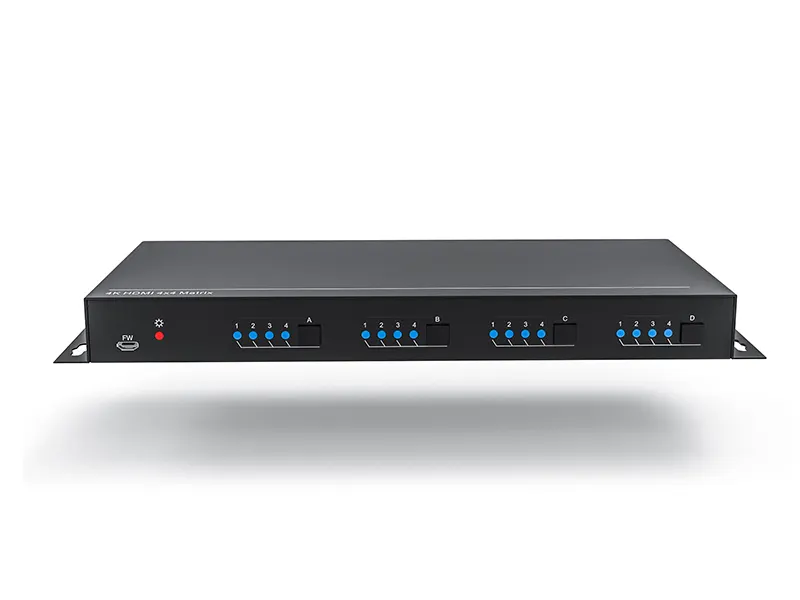

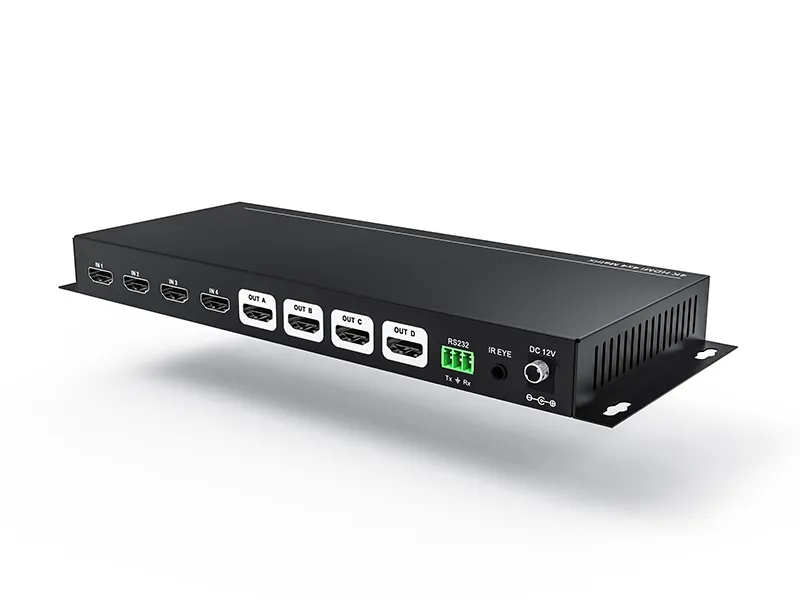

This machine is a 4K high-definition HDMI matrix switcher, which consists of 4 HDMI inputs and 4 HDMI outputs to form a 4x4 matrix switcher.Support HDMI1.4 standard, compatible with HDCP2.2, and support up to 4Kx2K@60Hz 4:2:0 resolution.The equipment control methods are flexible and diverse, including infrared control, serial port control, and panel button control. They are compatible with control at the same time and are more convenient to use.
● The highest resolution is 4Kx2K@60Hz 4:2:0, support 1080P 3D
● Support HDMI1.4, compatible with HDCP2.2, and backward compatible
● Intelligent EDID management, which can learn output EDID data through RS232 instructions and IR infrared remote control
● Support panel button control, IR infrared, RS232 commands
● Input HDCP follows, output supports HDCP management: instruction control
● Support for USB firmware online upgrade
|
VIDEO IN |
|
|
input |
(4) HDMI |
|
Input connector |
(4) HDMI A Type |
|
HDMI version |
1.4 |
|
HDCP version |
2.2 |
|
Video output |
|
|
output |
(4) HDMI |
|
Output Connector |
(4) HDMI A Type |
|
HDMI version |
1.4 |
|
HDCP version |
1.4 |
|
convention |
|
|
resolution ratio |
Maximum Support 4K@60Hz 4: 2:0 |
|
bandwidth |
10.2 Gbps |
|
control mode |
Front panel button, IR infrared remote control, RS232 |
|
power supply |
12V DC 2A |
|
consumption |
10W (maximum) |
|
operation temperature |
-10℃ ~ +55℃ |
|
storage temperature |
-25℃ ~ +70℃ |
|
relative humidity |
10%-90% |
|
Size (W * H * D) |
244mm x25.5mm x 100mm; 269mm x 25.5mm x 100mm (including hanging ears) |
|
Net weight (g) |
650g |
Company Features
· Beijing Yite Video Technology Co., Ltd. has gone far ahead in the market when it comes to the development and production of digital video signals.
· We are equipped with an outstanding R&D team. They have abundant industry know-how, strong capabilities in evaluation of new technologies, rapid prototyping, innovative solutions development, and market research. These capabilities endow our company to provide more professional and suitable products for clients. We have build up a high-performance R&D team. They have a keen market sense, and they are always able to invent creative products that other competitors can't invent. This makes our company more competitive in product types. Our R&D team is engaged in developing, integrating, piloting, and evaluating innovative products such as digital video signals. Their strong technological know-how helps come up with breakthrough solutions for clients.
· Only the superior quality can meet the real needs of ETV. Please contact.
Application of the Product
The digital video signals of ETV can be used in many industries.
ETV is committed to providing customers with high-quality SDI to fiber converter SDI光纤转换器 HDMI fiber extender HDMI光纤延长器 HDMI to SDI converter、SDI to HDMI conv as well as one-stop, comprehensive and efficient solutions.
Product Comparison
Compared with similar products, our digital video signals has the following major characteristics.
Enterprise Advantages
ETV constantly takes talents in to enrich talent team. Now we have a professional and efficient production team, whose team members produce a large number of quality products depending on mature technology.
ETV achieves the organic combination of culture, sci-tech, and talents by taking business reputation as the guarantee, by taking service as the method and taking benefit as the goal. We are dedicated to providing customers with excellent, thoughtful and efficient services.
Keeping in mind the mission of 'providing high-quality products and services for consumers', ETV strives to create world-class quality and build a well-known boutique enterprise.
Established in ETV has a good reputation in the domestic and foreign markets.
ETV's sales network has basically covered all major cities in the country. In addition, the products are also exported to Southeast Asia, the Middle East, South America, and other overseas regions.
