Digital Matrix Switcher Supply
Product details of the digital matrix switcher
Product Introduction
Unique creative ideas and perfect design of digital matrix switcher often bring joy to our customers. The product has good quality and excellent performance. Beijing Yite Video Technology Co., Ltd. implements a strict internal quality control system to reward customers with superior quality.

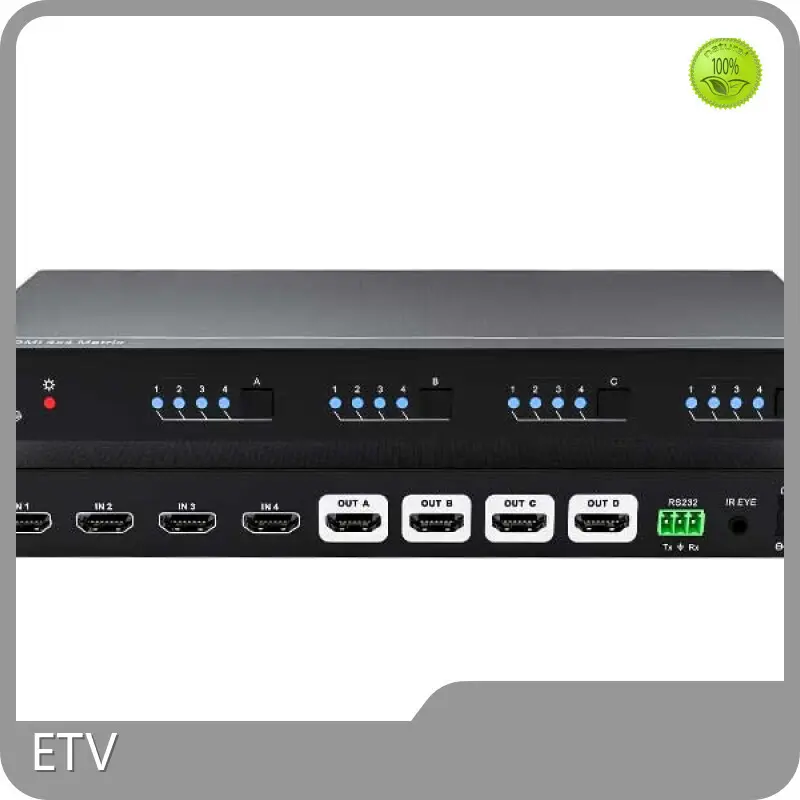

This machine is a 4K high-definition HDMI matrix switcher, which consists of 4 HDMI inputs and 4 HDMI outputs to form a 4x4 matrix switcher.Support HDMI1.4 standard, compatible with HDCP2.2, and support up to 4Kx2K@60Hz 4:2:0 resolution.The equipment control methods are flexible and diverse, including infrared control, serial port control, and panel button control. They are compatible with control at the same time and are more convenient to use.
● The highest resolution is 4Kx2K@60Hz 4:2:0, support 1080P 3D
● Support HDMI1.4, compatible with HDCP2.2, and backward compatible
● Intelligent EDID management, which can learn output EDID data through RS232 instructions and IR infrared remote control
● Support panel button control, IR infrared, RS232 commands
● Input HDCP follows, output supports HDCP management: instruction control
● Support for USB firmware online upgrade
|
VIDEO IN |
|
|
input |
(4) HDMI |
|
Input connector |
(4) HDMI A Type |
|
HDMI version |
1.4 |
|
HDCP version |
2.2 |
|
Video output |
|
|
output |
(4) HDMI |
|
Output Connector |
(4) HDMI A Type |
|
HDMI version |
1.4 |
|
HDCP version |
1.4 |
|
convention |
|
|
resolution ratio |
Maximum Support 4K@60Hz 4: 2:0 |
|
bandwidth |
10.2 Gbps |
|
control mode |
Front panel button, IR infrared remote control, RS232 |
|
power supply |
12V DC 2A |
|
consumption |
10W (maximum) |
|
operation temperature |
-10℃ ~ +55℃ |
|
storage temperature |
-25℃ ~ +70℃ |
|
relative humidity |
10%-90% |
|
Size (W * H * D) |
244mm x25.5mm x 100mm; 269mm x 25.5mm x 100mm (including hanging ears) |
|
Net weight (g) |
650g |
