Customized Optical Kvm Extender
Product details of the optical kvm extender
Quick Overview
We have always been very deliberate about the quality of our materials, ETV optical kvm extender thus is made of only high-quality materials. The product has never failed in the aspects of long-lasting performance and durability. Beijing Yite Video Technology Co., Ltd. has the first-class design level, quality engineering construction management, and good after-sales service support.
Product Introduction
Compared with other products in the industry, optical kvm extender has more obvious advantages which are reflected in the following aspects.

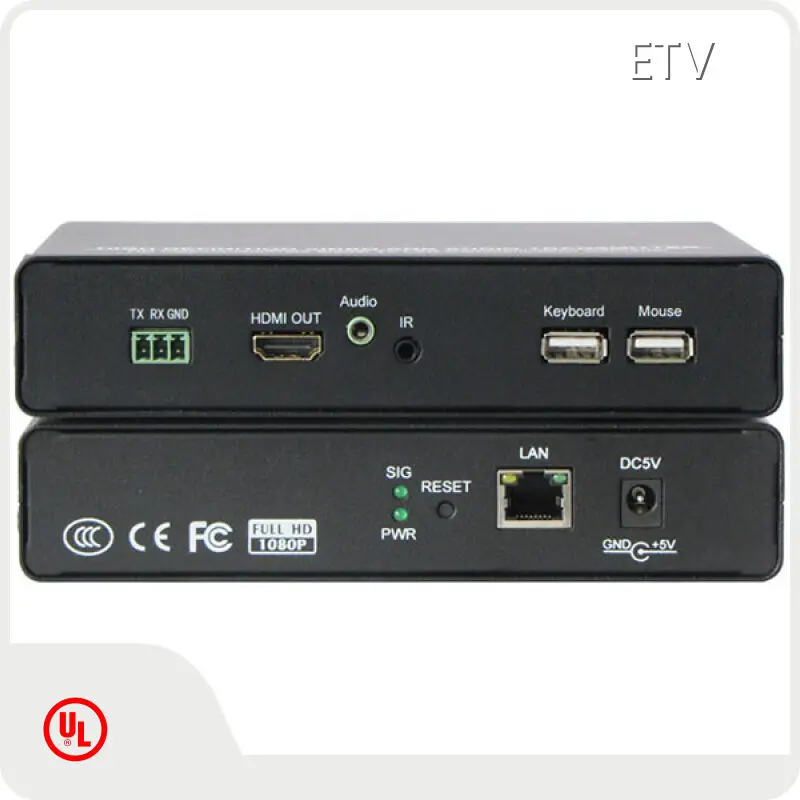

ETV-680 series high-definition KVM network cable extender is an independent research and development chip design of Ante Video Application, which transmits HDMI signals (embedded audio) and USB2.0 signals through CAT5, CAT5E, and CAT6 network cables; supports 3.5 audio and 232 data , IR infrared (optional). HDMI signal supports 1920*1080@60hz. Point-to-point single CAT6 network cable can transmit 1080P@60Hz up to 120 meters; support switch/router and other relay devices cascaded to extend unlimitedly and distribute HDMI signals.
This series of network cable extension transmitters has excellent image processing and transmission capabilities, making signal transmission more smooth and stable. It is a reliable, high-performance, and efficient HDMI signal extension method, which is widely used in industrial control, computer fields and monitoring fields. Large-screen advertising, education, splicing system, bank securities system, etc.
● Support HDMI1.3, compatible with HDCP 1.2 protocol;
● Support USB2.0, realize real-time remote control of mouse and keyboard;
● The network cable complies with the IEEE-568B standard; it can transmit up to 120 meters through the CAT5/5E/6 network cable;
● Support point-to-point transmission, which can be extended indefinitely through the switch;
● One-to-multipoint transmission can be realized through the switch;
● HDMI signal supports up to 1920*1080@60HZ;
● Audio transmission can realize HDMI embedded audio and 3.5 audio through dial switch;
● Support 232 data and IR infrared function optional.
|
parameter |
Description |
|
power supply |
DC5V / 2A |
|
HDM signal |
HDMI 1.3, fully compatible with HDCP |
|
Support resolution |
480i@60Hz、480P@60Hz、576i@50Hz、576P@50Hz、 720P@50/60Hz、1080i@50/60Hz、1080P@50/60Hz |
|
cable |
Unshielded or shielded Category 5/6 network cable (UTP/STP Cat5e/6) |
|
Network cable transmission distance |
HDMI 1080P signal can be transmitted 120 meters using CAT5 network cable |
|
Product power consumption |
Transmitter 3W, receiver 3W |
|
Product Size |
170x106x35mm |
Company Information
Beijing Yite Video Technology Co., Ltd. has a large production base and professional team to producing high quality optical kvm extender. Our QC team has made great contributions to the improving quality of optical kvm extender. We have a mutual goal for each ETV staff which is to serve each customers with our professional skills. Inquire online!
We are looking forward to developing a better future with you.
