Custom Sdi to Optical Fiber Converter Price List
Company Advantages
· ETV sdi to optical fiber converter is manufactured with well-selected materials which are high quality.
· Our professional team helps strictly test the quality of this product.
· It has market potential and application foreground.
The 12G-SDI ultra-high-definition video optical transceiver is developed by our company and has independent intellectual property rights. Absorbing the advantages of similar products at home and abroad, and combining the actual needs of the market, the 4K60Hz ultra-high-definition video optical transceiver has been developed to achieve a delay-free, uncompressed, and high-quality signal extension of 10 kilometers.
12G-SDI ultra-high-definition video optical transceiver has built-in serial clock recovery, signal equalization and line drive, input automatic detection signal 12G-SDI/6G-SDI/3G-SDI/HD-SDISDI/ASI, in line with SMPTEST2082-1 (12GUHD-SDI), ST2081-1 (6GUHD.SDI), SMPTE424M, SMPTE292M, SMPTE259M, SMPTE297MSMPTE305M, SMPTE310M standard; 12G-SDI ultra-high-definition video optical transceiver, equipment power consumption is less than 1.5W, using USB port power supply, support USB power supply system, strong flexibility in use; 12G-SDI ultra-high-definition video optical transceiver circuit board adopts multi-layer design, the circuit is stable and reliable, and the anti-interference ability is strong; all components, including connectors, use internationally renowned The products of famous manufacturers are of reliable quality; the aluminum material shell design is corrosion-resistant, and it has outstanding thermal and electrical conductivity.
● Support ST-2082-1 (12G), ST-2081-1 (6G), ST-424 (3G), ST-292 (HD) and ST-259 (SD);
● Compatible with DVB-ASI and AES10 (MADI);
● Clock restorer is locked to 11.88Gbps, 5.94Gbps, 2.97Gbps, 1.48Gbps or 1.001 divider sub-rate and 270Mbps SMPTE Each signal input has an automatic cable equalization (EQ) function, and the output has a drive (CD) function.

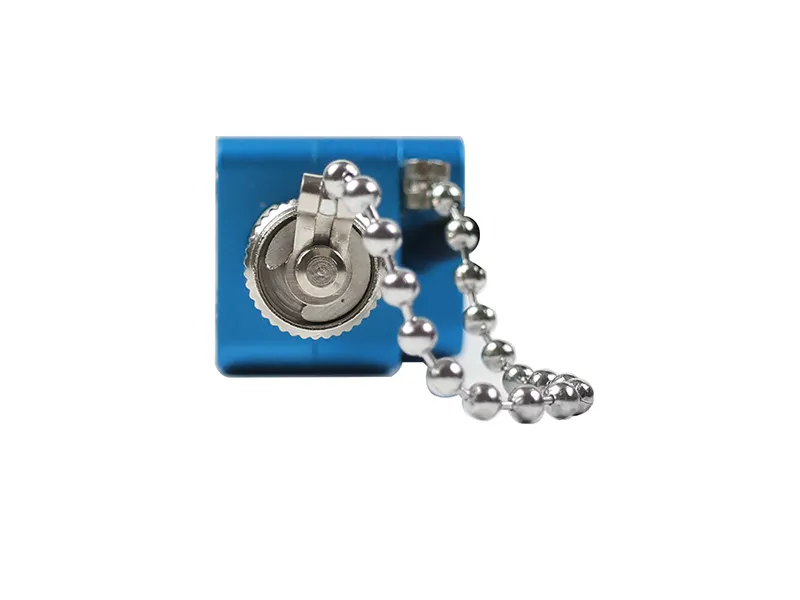

● It supports the optical fiber interface to be dust-proof and has an anti-shedding design to avoid the loss of the dust cover.
● It supports single-mode single-fiber transmission for 10 kilometers, supports status light display, supports USB device power supply, supports status light indication, plug and play, no debugging required.
|
Optical index |
|
|
Wavelength |
1270nm/1330nm(Single mode single fiber) |
|
Fiber type |
9/125um Single mode |
|
Rate |
12Gbps |
|
Emitted optical power |
0~-3dB |
|
Receiving sensitivity |
-12dB |
|
Optical interface |
ST |
|
Transmission distance |
10km |
|
Power index |
|
|
Input current |
≤300MA |
|
Power index |
5V |
|
Overload current protection |
Support |
|
Power physical interface |
USB |
|
Power consumption |
<1.5W |
Company Features
· On the way of its history, Beijing Yite Video Technology Co., Ltd. has been pioneering in the designing and manufacturing of sdi to optical fiber converter in China.
· Our factory houses advanced production facilities and lines including materials processing lines and assembly lines which can ensure our continuous and stable productivity. Our factory is equipped with advanced production facilities. This means we have close control over production, minimizing delays and allowing flexibility in delivery schedules. Covering a large area, our factory allows for the storage of our raw materials. This reduces the time spent on the preparation of materials, minimizing delays and finishing orders ahead of schedule.
· We have positioned environmental protection is our priority issue. We promote environmental management by cooperating with related companies, business partners, and employees.
Product Details

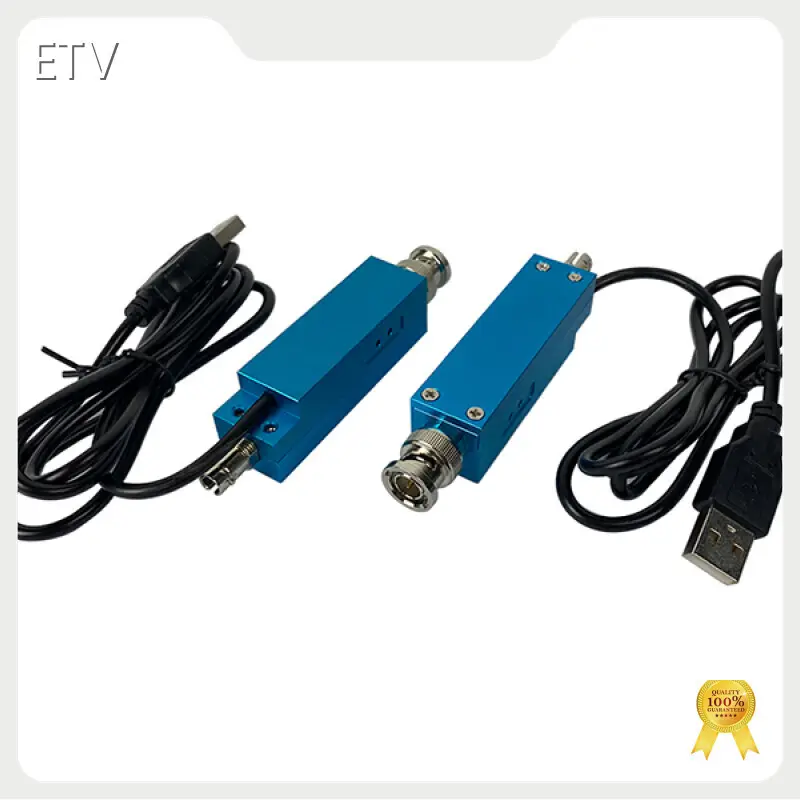

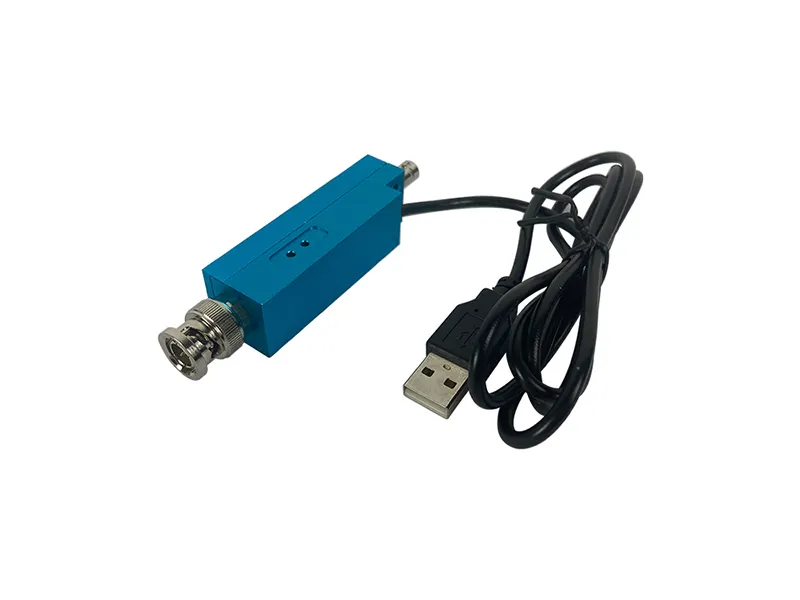

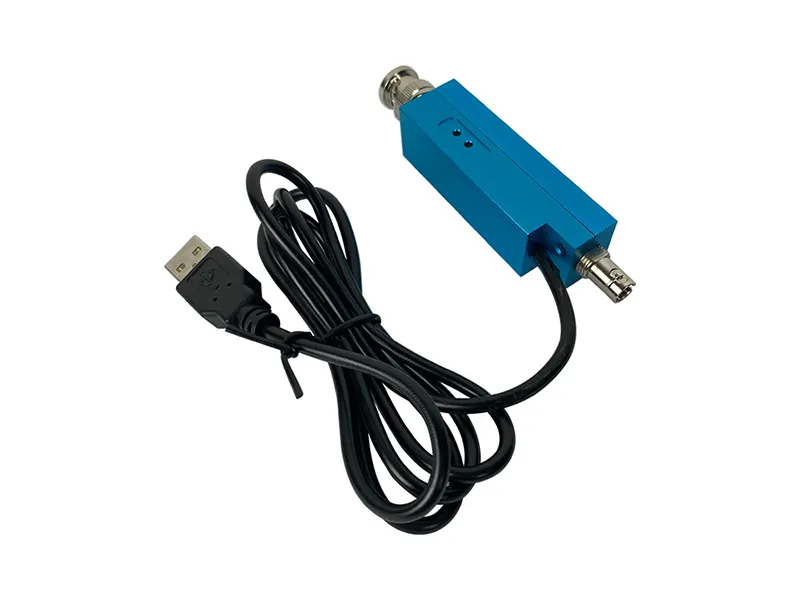

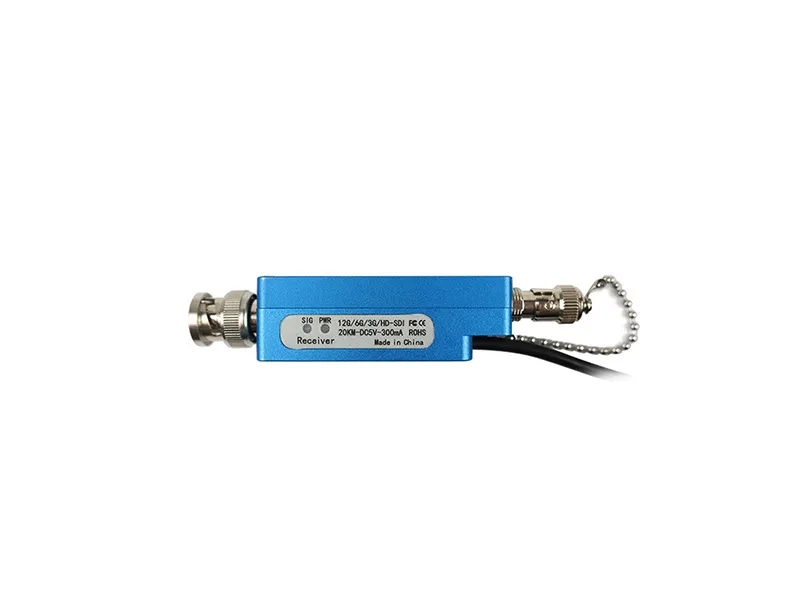

More details of sdi to optical fiber converter are shown as follows.
