Custom Made Audio Video Matrix Switcher Price List
Product details of the audio video matrix switcher
Product Introduction
ETV audio video matrix switcher is made from high quality materials, which are sourced from reliable suppliers. The careful inspection during production greatly guarantees the overall quality of the product. audio video matrix switcher is often praised by it's perfect service.
HDMI matrix specialised in the use of high-performance digital processing chip, transmission distance of up to 30 m HDMI matrix using high-performance digital processing chip, transmission speed of up to 10.2 Gbps, backward compatible with 480p, 720p, 1080i, 1080p and other resolutions; HDCP 1.4; support for Blu-ray DVD24/50/60fs HDCP 1.4; support for Blu-ray DVD24/50/60fs/HD-DVD/xvYCC; support for multi-channel switching at the same time; support for multi-level cascade, full SMD SMD process, the unique ESD static protection; easy to install, plug-and-play; switching flexibility: manual, remote control, computer software, networks, and other control methods, the product is widely used in the military, telecommunications, power, oil, scientific research and other high-demanding application areas.
● Supports 1080P/60Hz, HDMI version 2.0, HDCP1.4 standard
● Front panel LCD status display, can display the switching status of each channel of the device
● Power failure site switching memory protection function; unique ESD electrostatic protection function
● The device comes with EDID copy function (currently supports HDMI, DVI).
● Supporting status monitoring and fault judgement when there is no signal.
● Compatible with remote control equipment (such as: Crestron, fast, AMX and other domestic and foreign all the central control)
● Fast response switching time, easy installation, plug and play
● Support multi-channel simultaneous switching, address setting and other functions
● Supports support for High Definition Television (HDTV) signals
● Compatible with remote control equipment (such as: Crestron, fast, AMX and other domestic and foreign all the central control)
● Easy installation, plug and play
HDMI 4x4

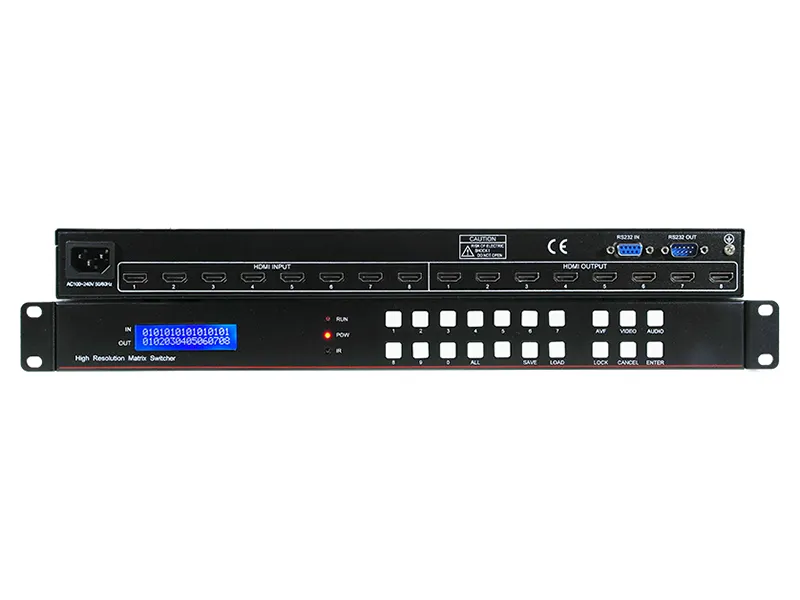

HDMI 8x8

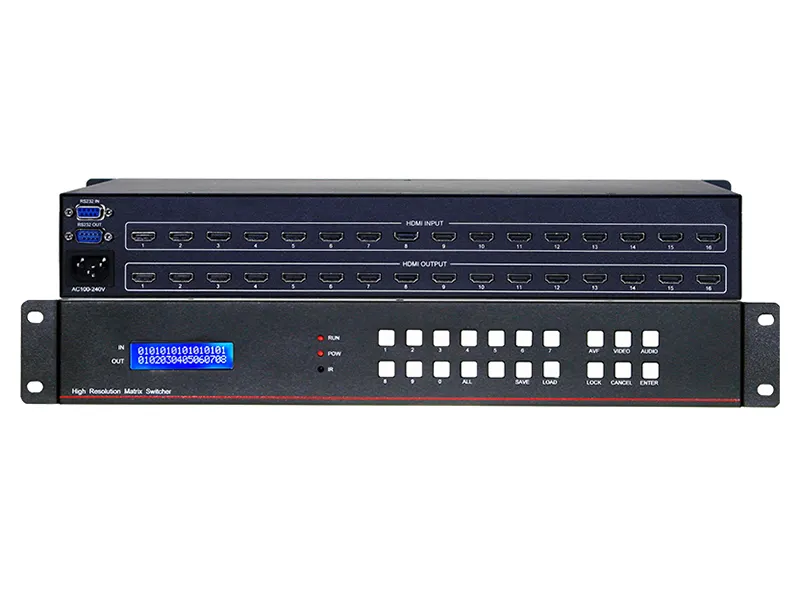

HDMI 16X16
|
Bandwidth |
10.2 Gbps (full load) |
|
Resolution |
3840*2160/60Hz; 1920*1200/60Hz; 1080P; 3D & 720P, etc. |
|
Protocol |
Support HDMI2.0 HDCP1.4 standard; backward compatible with HDMI1.3bDVI1.0 and so on. |
|
Maximum transmission delay |
5nS (±1nS) |
|
Switching speed |
150ns (maximum time) |
|
Signal type |
HDMI-A all-digital T.M.D.S. signal in HDMI 2.0 specification |
|
Transmission distance |
1920*1080P input 30m, output 30m |
|
EDID Management |
Supports copy input port EDID passthrough. |
|
Output impedance |
differential 100Ω |
|
Output swing |
800mVp-p |
|
Connector |
Type-A HDMI locking female connector |
|
Serial interface |
RS232, 9-hole D-Sub connector, ports 2, 3 and 5 are straight through. |
|
Serial parameters |
9600bps, 8-bit data, 1 start bit, 1 stop bit, no parity, no flow control |
|
Power consumption |
20 ~ 150W (depending on the specific model to determine the power consumption) |
|
Temperature |
0℃～45℃ |
|
Power supply |
AC100～220V, 50/60Hz (factory default input voltage AC220V, other input voltage please specify when ordering) |
|
Control mode |
panel, remote control, RS232 |
|
1U chassis size |
432 x 245 x 44mm (L x W x H) |
Company Advantage
• ETV's R&D team has rich experience and mature technology. We have always focused on product innovation and have made a major breakthrough. This lays a solid foundation for the sustainable development of our company.
• ETV has a dedicated customer service team to listen to suggestions from customers and solve problems for them.
• Unique geographical advantages and abundant social resources create good conditions for ETV's development.
All SDI to fiber converter SDI光纤转换器 HDMI fiber extender HDMI光纤延长器 HDMI to SDI converter、SDI to HDMI conv are produced and directly sold from ETV. The products are of great value and fair price. Please feel free to consult and contact us.
