Product Introduction
ETV media fiber converter is made of good-quality materials and beautifully crafted by skilled worker. A strict quality control system ensures that product quality meets international standards. Beijing Yite Video Technology Co., Ltd. will pays high attention to complaints of our media fiber converter and take immediate measures to improve.

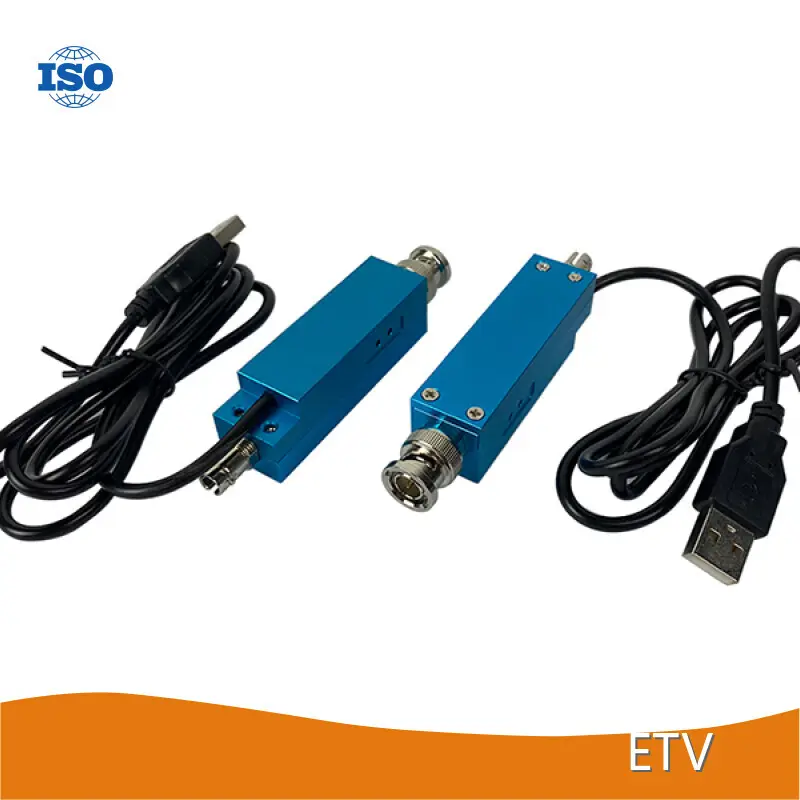

The 12G-SDI ultra-high-definition video optical transceiver is developed by our company and has independent intellectual property rights. Absorbing the advantages of similar products at home and abroad, and combining the actual needs of the market, the 4K60Hz ultra-high-definition video optical transceiver has been developed to achieve a delay-free, uncompressed, and high-quality signal extension of 10 kilometers.
12G-SDI ultra-high-definition video optical transceiver has built-in serial clock recovery, signal equalization and line drive, input automatic detection signal 12G-SDI/6G-SDI/3G-SDI/HD-SDISDI/ASI, in line with SMPTEST2082-1 (12GUHD-SDI), ST2081-1 (6GUHD.SDI), SMPTE424M, SMPTE292M, SMPTE259M, SMPTE297MSMPTE305M, SMPTE310M standard; 12G-SDI ultra-high-definition video optical transceiver, equipment power consumption is less than 1.5W, using USB port power supply, support USB power supply system, strong flexibility in use; 12G-SDI ultra-high-definition video optical transceiver circuit board adopts multi-layer design, the circuit is stable and reliable, and the anti-interference ability is strong; all components, including connectors, use internationally renowned The products of famous manufacturers are of reliable quality; the aluminum material shell design is corrosion-resistant, and it has outstanding thermal and electrical conductivity.
● Support ST-2082-1 (12G), ST-2081-1 (6G), ST-424 (3G), ST-292 (HD) and ST-259 (SD);
● Compatible with DVB-ASI and AES10 (MADI);
● Clock restorer is locked to 11.88Gbps, 5.94Gbps, 2.97Gbps, 1.48Gbps or 1.001 divider sub-rate and 270Mbps SMPTE Each signal input has an automatic cable equalization (EQ) function, and the output has a drive (CD) function.
● It supports the optical fiber interface to be dust-proof and has an anti-shedding design to avoid the loss of the dust cover.
● It supports single-mode single-fiber transmission for 10 kilometers, supports status light display, supports USB device power supply, supports status light indication, plug and play, no debugging required.
|
Optical index |
|
|
Wavelength |
1270nm/1330nm(Single mode single fiber) |
|
Fiber type |
9/125um Single mode |
|
Rate |
12Gbps |
|
Emitted optical power |
0~-3dB |
|
Receiving sensitivity |
-12dB |
|
Optical interface |
ST |
|
Transmission distance |
10km |
|
Power index |
|
|
Input current |
≤300MA |
|
Power index |
5V |
|
Overload current protection |
Support |
|
Power physical interface |
USB |
|
Power consumption |
<1.5W |
Company Advantage
• ETV has been exploring and developing domestic and foreign markets by taking advantage of e-commerce trend. Based on quality products, we have opened up a vast market.
• ETV's location enjoys a beautiful environment with traffic convenience, which is good for the outward transportation of SDI to fiber converter SDI光纤转换器 HDMI fiber extender HDMI光纤延长器 HDMI to SDI converter、SDI to HDMI conv.
• ETV has made outstanding achievements in the historical development for years. Besides, we have established our own advantageous position in the industry.
We have many years of experience in production and sales. And if you are interested in our products, feel free to contact us.
