Bulkhdmi Fiber Optic Extender
Company Advantages
· Always applying the best design idea into our hdmi fiber optic extender is one of the reasons why they are so popular.
· This product is thoroughly checked by the team of quality experts to refuse flaws.
· ETV has been highly recommended not only the good quality of hdmi fiber optic extender but also the professional service.

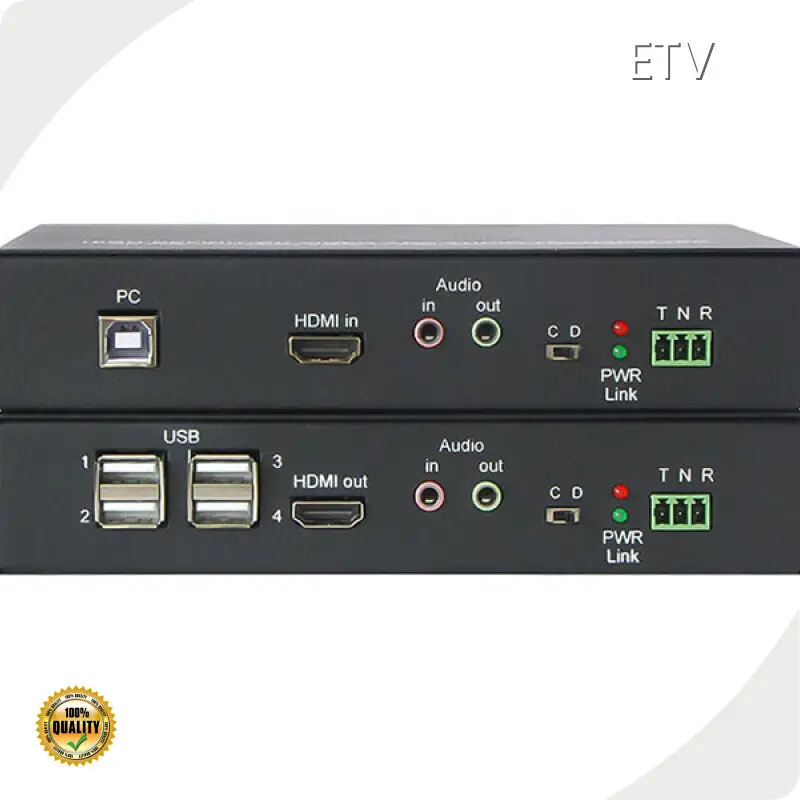

The ETV-KVM4000K series KVM digital optical transceiver is an optical fiber transmission product that transmits KVM signals on a single-core optical fiber. It can also transmit HDMI/DVI (VGA), independent audio signals and data services at the same time. USB supports 2.0, which can realize mouse and keyboard , U disk, LCD touch screen control, it supports large screen splicing function. At the same time, it supports one infrared transmission function.
To achieve point-to-point transmission of KVM signals, the MixOptMatrix distributed optical fiber access platform can realize flexible switching of multiple KVM signals, simple networking, convenient installation, and low construction cost. It can be applied to LCD communication, camera PTZ, subway monitoring, Industries such as military exercises.
● Support large screen splicing function without software assistance
● Support network cable or optical fiber transmission 1 channel 4K HD image and USB2.0 can pass the switch
● Support multiple video signal access HDMI/DVI/VGA (optional)
● Support the highest resolution up to 4Kx2K@60Hz
● Support USB2.0
● Support audio, USB keyboard and mouse and USB232
● A variety of data can be connected to RS232, RS485, RS422, etc.
● Support EDID learning function, compatible with multiple display devices
● Support sampling frequency, phase, image horizontal position, image vertical position adjustment, signal input indication
● Pure hardware design, no driver required, compatible with any system, plug and play.
● Built-in ESD electrostatic protection circuit, all-round protection system safety.
● Support one infrared remote transmission.
|
Resolution |
4Kx2K@60Hz |
|
Ethernet interface |
UTP/STP 1000Mbps |
|
Supported interfaces |
Audio, USB keyboard and mouse, and USB232 |
|
Data interface |
RS232, RS485, RS422, etc. |
|
Protocol |
IP/UDP/TCP/ICMP/IGMP |
|
Ethernet interface |
UTP/STP 1000Mbps |
|
|
protocol |
IP,UDP,TCP,ICMP,IGMP |
|
|
HDMI interface |
Input: 19-pin A type |
Input: 19-pin A type |
|
Output: 19-pin A type |
USB Type A * 2 |
|
|
USB interface |
Micro USB * 1 |
USB Type A * 2 |
|
RS232 |
3.5mm headphone jack |
|
|
Audio output port |
3.5mm headphone jack |
|
|
Power interface |
DC5V, 1.5A |
|
|
Power Indicator |
Blinking: The power box unit is starting |
|
|
Steady on: power on |
||
|
Data indicator |
Data indicator flashes: the device is already connected to the network, or the HDMI program source has been disconnected |
|
|
The data indicator is always on: the device is connected and working normally |
||
|
TX / RX IP address |
Use the 169.254.xxx.xxx private IP domain range in "Auto IP" mode. The IP of the target TX / RX board is the mDNS protocol used, and his host name is resolved. The receiver ’s HDMI receiver will display its own IP address and the IP address sent by the connection |
|
|
Sound type |
LPCM |
|
|
Multipoint to multipoint |
Support 5524VLAN |
|
|
RS232 over ip |
ASCII mode |
|
|
Compress |
Make Jun lossless compression patent technology |
|
|
Certification |
CE / FCC |
|
|
follow |
HDMI1.3 / HDCP1.2 / ROHS |
|
Company Features
· Beijing Yite Video Technology Co., Ltd. has been engaged in hdmi fiber optic extender designing and manufacturing for many years. We possess in-depth expertise in this kind of product and market.
· To better ensure the perfect quality of hdmi fiber optic extender, ETV has been constantly improving the technology. ETV has been optimizing its technology to keep its hdmi fiber optic extender more competitive.
· We bear social responsibilities. We strive to make a difference in the local communities where our employees live and work. Through donations and sponsorships, we support organizations that share our goal to help make a difference.
Product Comparison
Compared with other products in the same category, ETV's hdmi fiber optic extender has the following advantages.
Enterprise Advantages
ETV has a development team with many years of technical experience, and the team members have strong industrial logic thinking and industry experience, providing a strong guarantee for our development.
Our company has a mature service team to provide suitable services for consumers.
In the future, ETV will always adhere to the business philosophy of 'survive with quality, develop with reputation'. We strive to transform the development mode and deepen the optimized combination of the supply chain, value chain, and management chain. Moreover, we implement the scientific brand development strategy to create the first-class brand within the industry. Our goal is to become a leader in the domestic market.
Since the establishment in ETV has always adhered to the development concept to be honest, professional, and innovative. During the development, we constantly pursue excellence and seek innovation. Now we become a modern enterprise with advanced technology and comprehensive equipment.
ETV's products are sold to major cities in China and exported to countries and regions such as Asia, Europe, and Africa.
