Bulk Fiber Optic Converter Fiber Optic Converter Company
Company Advantages
· Each ETV fiber optic converter is tailored to your needs in accordance with environmentally friendly manufacturing practices.
· The product, as it is manufactured by ourselves, is assured to meet international quality standards.
· Beijing Yite Video Technology Co., Ltd. always wholeheartedly serves its customers.
Product Features
★ Supports up to 1920*1080@60HZ, backward compatible with 1080I, 720P and other resolutions;
★ The transmitter has a local loop output, and the receiver has dual signal output;
★ Support 3G/HD/SD-SDI HD digital signal or ASI HD digital signal;
★ Low power consumption, power bank, V port battery can supply power for more than 10 hours;
★ The transmitter can be fixed to the camera, the receiving end can be plugged in for centralized management, centralized power supply, convenient management;
★ Comply with SMPTE424M, SMPTE259M, SMPTE292M, SMPTE297M, SMPTE310, SMPTE305 (SDTI), SMPTE344 standards
★ Comply with DVB-ASI (EN50083-9) interface standard
★ Automatically adapt to SDI 143, 177, 270, 360, 1485Mbps, 2.97Gbps
★ The input/output has cable equalization, which can compensate the loss of cable transmission, and the cable transmission distance can reach 100m (1485Mbps, BELDEN8281 cable)
★ There is a circuit to reduce signal jitter, which can handle distorted signals well
★ The working status is clearly indicated, and the panel is equipped with SDI signal, light signal, and power LED indication
★ Support SMPTE178 standard and pass SDI pathological code test
★ Optional HDMI output at the same time, easy to monitor the SDI signal and send it to the big screen of the studio
★ Industrial grade design, dust-proof, freeze-proof and lightning-proof, high temperature resistance;
★ With a third-party test report, FCC and CE international certification, 3C mandatory certification;
Technical Parameter
| Video interface | BNC（SDI interface） |
| Number of input | 1 channel |
| Local loop out | 1channel with loop out |
| wavelength | 1310nm、1550nm |
| Resolution | 1920*1080@60HZ, backward compatible with 1080I, 720P |
| Transmission rate | Up to 2.97Gbps |
| Recommended SDI video cable distance | 《30m, at 1080p@60HZ |
| Module type | Pluggable SFP optical module |
| Optical fiber interface | LC interface |
| Fiber type | Single mode/Multimode |
| battery | V port battery/power bank |
| Transmission distance | Standard 20km, can be customized 0-100km |
| Power parameters | 5-18VDC/2A |
| Operating temperature | -40℃-70℃ |

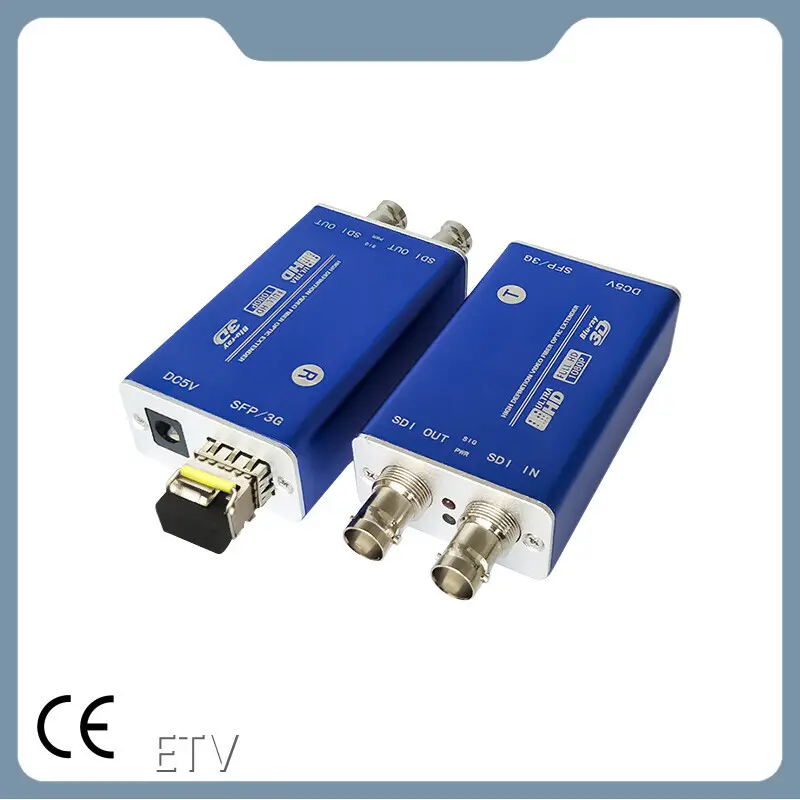

Product Display
Company Features
· Beijing Yite Video Technology Co., Ltd. acts as an important role in the manufacturing of fiber optic converter and has gained a good reputation in the industry.
· With the outstanding technical strength, our company is trusted by customers. The high quality and solid technical foundation make ETV products competitive.
· ETV will always bring customers with reliable products. Inquire now!
Product Details
Our company starts from the whole and excels in detail in the production of fiber optic converter. So our products have better performance in the following aspects.
Product Comparison
fiber optic converter produced by ETV stands out among many products in the same category. And the specific advantages are as follows.
Enterprise Advantages
ETV has a research and development team consisting of professional technical developers. We develop and design products with innovative research and development concepts to ensure that every step of the product from design, development to production is professional and efficient.
ETV provides comprehensive and professional services such as design solutions and technical consultations based on the actual needs of customers.
ETV worships the enterprise spirit, which is to be practical, hard-working and responsible. Our business is focused on honesty, pragmatism and mutual benefit. We provide high-quality products and services for numerous consumers depending on advanced technology and comprehensive management.
Established in we have finally embraced a new era of rapid development through years of hard work.
ETV's products occupy a certain market share in the country. They are also exported to many foreign countries.
