Product details of the optical cable extender
Product Overview
ETV optical cable extender is manufactured by our experts utilizing optimum quality material and advanced technology. The product is outstanding in terms of performance, durability, and usability. Beijing Yite Video Technology Co., Ltd. gives customers with technical and sales support.
Product Description
The specific details for optical cable extender of ETV are mainly reflected in the following aspects.

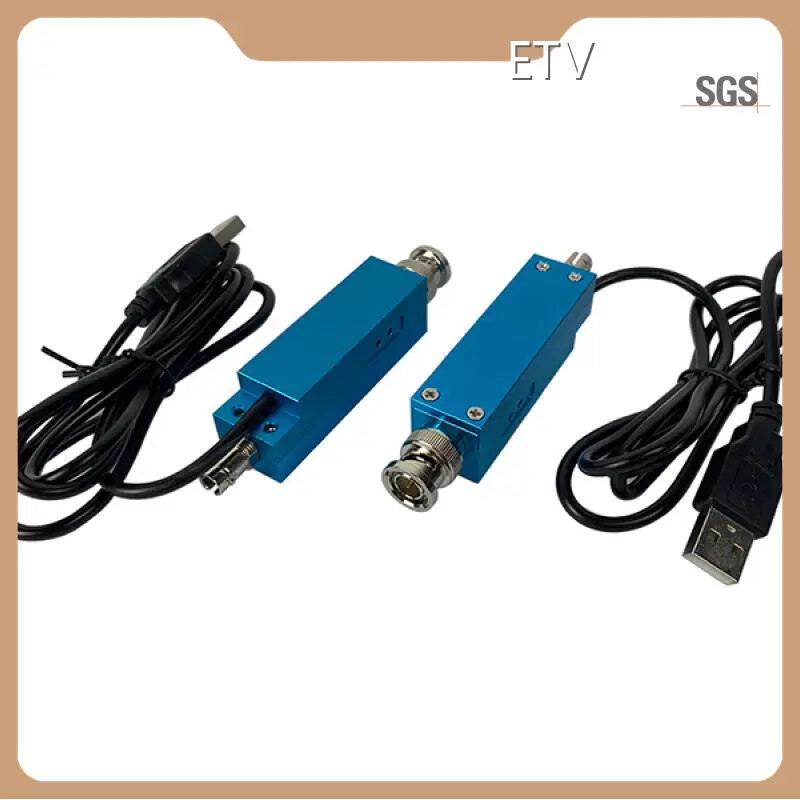

The 12G-SDI ultra-high-definition video optical transceiver is developed by our company and has independent intellectual property rights. Absorbing the advantages of similar products at home and abroad, and combining the actual needs of the market, the 4K60Hz ultra-high-definition video optical transceiver has been developed to achieve a delay-free, uncompressed, and high-quality signal extension of 10 kilometers.
12G-SDI ultra-high-definition video optical transceiver has built-in serial clock recovery, signal equalization and line drive, input automatic detection signal 12G-SDI/6G-SDI/3G-SDI/HD-SDISDI/ASI, in line with SMPTEST2082-1 (12GUHD-SDI), ST2081-1 (6GUHD.SDI), SMPTE424M, SMPTE292M, SMPTE259M, SMPTE297MSMPTE305M, SMPTE310M standard; 12G-SDI ultra-high-definition video optical transceiver, equipment power consumption is less than 1.5W, using USB port power supply, support USB power supply system, strong flexibility in use; 12G-SDI ultra-high-definition video optical transceiver circuit board adopts multi-layer design, the circuit is stable and reliable, and the anti-interference ability is strong; all components, including connectors, use internationally renowned The products of famous manufacturers are of reliable quality; the aluminum material shell design is corrosion-resistant, and it has outstanding thermal and electrical conductivity.
● Support ST-2082-1 (12G), ST-2081-1 (6G), ST-424 (3G), ST-292 (HD) and ST-259 (SD);
● Compatible with DVB-ASI and AES10 (MADI);
● Clock restorer is locked to 11.88Gbps, 5.94Gbps, 2.97Gbps, 1.48Gbps or 1.001 divider sub-rate and 270Mbps SMPTE Each signal input has an automatic cable equalization (EQ) function, and the output has a drive (CD) function.
● It supports the optical fiber interface to be dust-proof and has an anti-shedding design to avoid the loss of the dust cover.
● It supports single-mode single-fiber transmission for 10 kilometers, supports status light display, supports USB device power supply, supports status light indication, plug and play, no debugging required.
|
Optical index |
|
|
Wavelength |
1270nm/1330nm(Single mode single fiber) |
|
Fiber type |
9/125um Single mode |
|
Rate |
12Gbps |
|
Emitted optical power |
0~-3dB |
|
Receiving sensitivity |
-12dB |
|
Optical interface |
ST |
|
Transmission distance |
10km |
|
Power index |
|
|
Input current |
≤300MA |
|
Power index |
5V |
|
Overload current protection |
Support |
|
Power physical interface |
USB |
|
Power consumption |
<1.5W |
