Best Hd Sdi to Fiber Optic Converter
Product details of the hd sdi to fiber optic converter
Product Information
ETV hd sdi to fiber optic converter is manufactured as per the international quality norms and well-defined industry parameters. The functionality of the product is more comprehensive and complete. Once we get clear hd sdi to fiber optic converter design requirements, we will provide our customers with the most cost-saving and most successful solution for it.
Product Features
★ Supports up to 1920*1080@60HZ, backward compatible with 1080I, 720P and other resolutions;
★ The transmitter has a local loop output, and the receiver has dual signal output;
★ Support 3G/HD/SD-SDI HD digital signal or ASI HD digital signal;
★ Low power consumption, power bank, V port battery can supply power for more than 10 hours;
★ The transmitter can be fixed to the camera, the receiving end can be plugged in for centralized management, centralized power supply, convenient management;
★ Comply with SMPTE424M, SMPTE259M, SMPTE292M, SMPTE297M, SMPTE310, SMPTE305 (SDTI), SMPTE344 standards
★ Comply with DVB-ASI (EN50083-9) interface standard
★ Automatically adapt to SDI 143, 177, 270, 360, 1485Mbps, 2.97Gbps
★ The input/output has cable equalization, which can compensate the loss of cable transmission, and the cable transmission distance can reach 100m (1485Mbps, BELDEN8281 cable)
★ There is a circuit to reduce signal jitter, which can handle distorted signals well
★ The working status is clearly indicated, and the panel is equipped with SDI signal, light signal, and power LED indication
★ Support SMPTE178 standard and pass SDI pathological code test
★ Optional HDMI output at the same time, easy to monitor the SDI signal and send it to the big screen of the studio
★ Industrial grade design, dust-proof, freeze-proof and lightning-proof, high temperature resistance;
★ With a third-party test report, FCC and CE international certification, 3C mandatory certification;
Technical Parameter
| Video interface | BNC（SDI interface） |
| Number of input | 1 channel |
| Local loop out | 1channel with loop out |
| wavelength | 1310nm、1550nm |
| Resolution | 1920*1080@60HZ, backward compatible with 1080I, 720P |
| Transmission rate | Up to 2.97Gbps |
| Recommended SDI video cable distance | 《30m, at 1080p@60HZ |
| Module type | Pluggable SFP optical module |
| Optical fiber interface | LC interface |
| Fiber type | Single mode/Multimode |
| battery | V port battery/power bank |
| Transmission distance | Standard 20km, can be customized 0-100km |
| Power parameters | 5-18VDC/2A |
| Operating temperature | -40℃-70℃ |

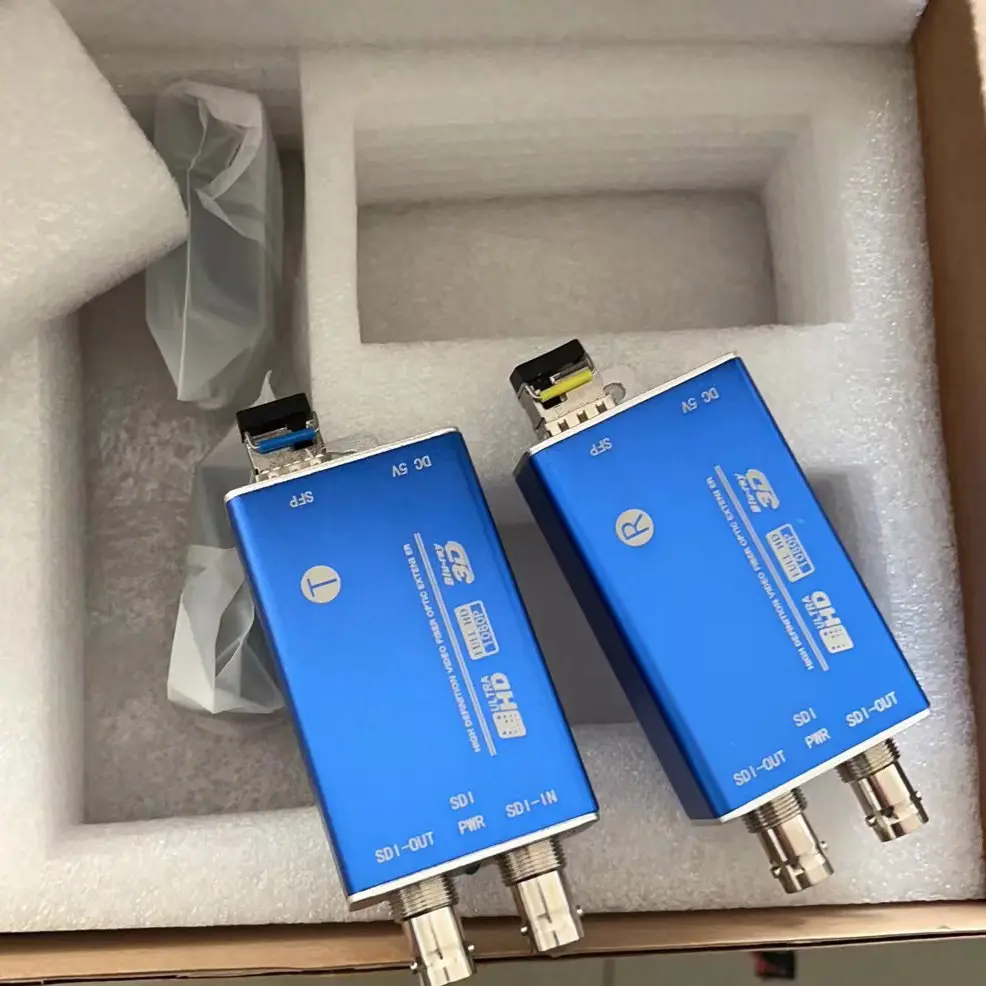

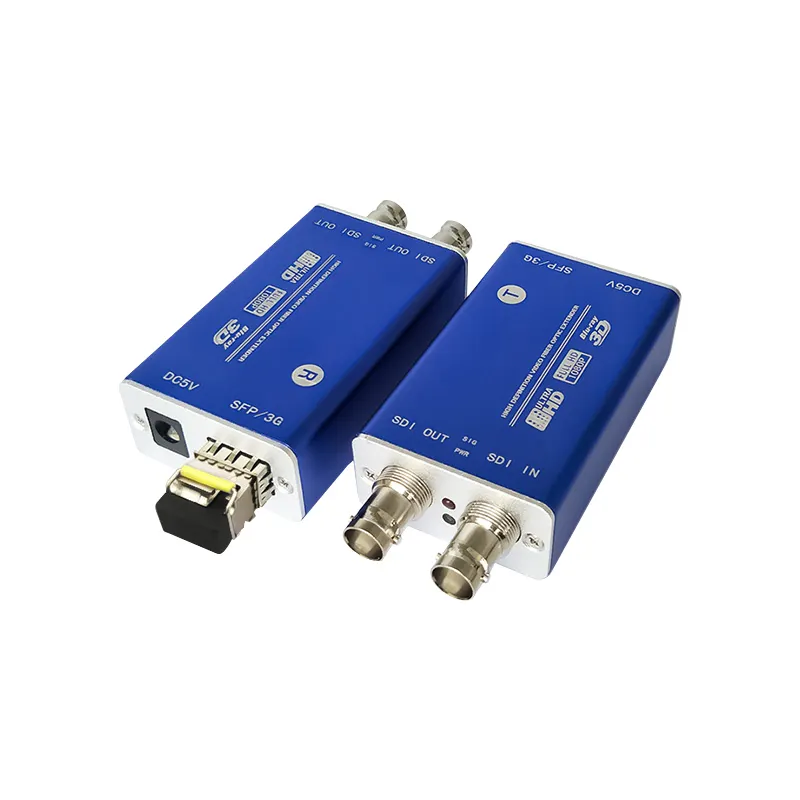

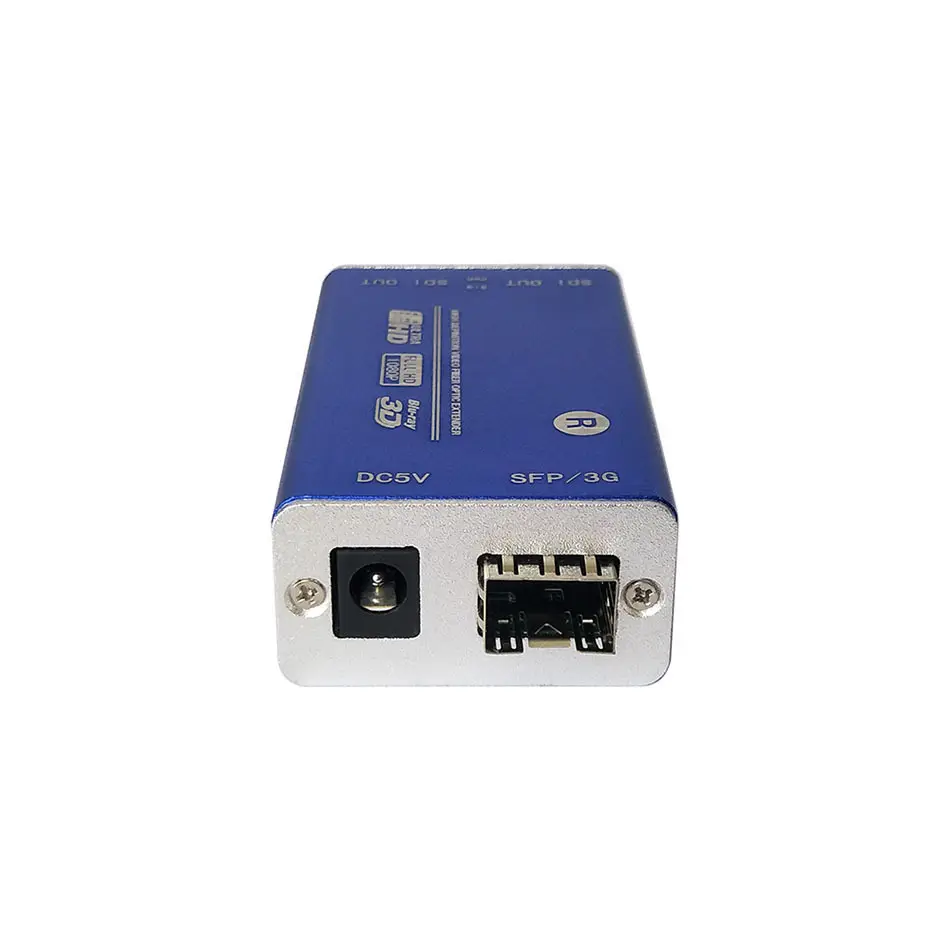

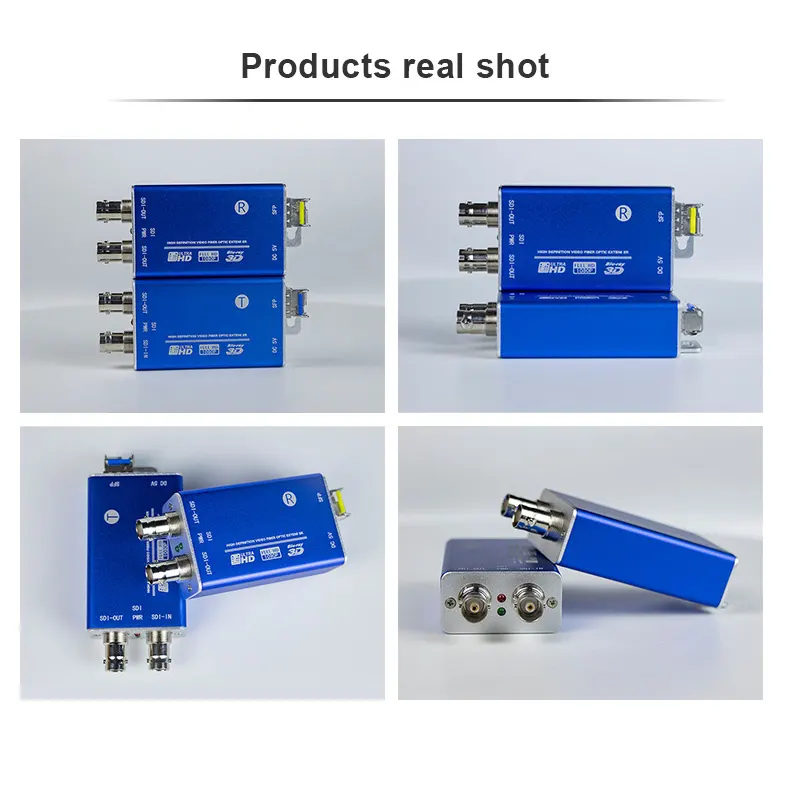

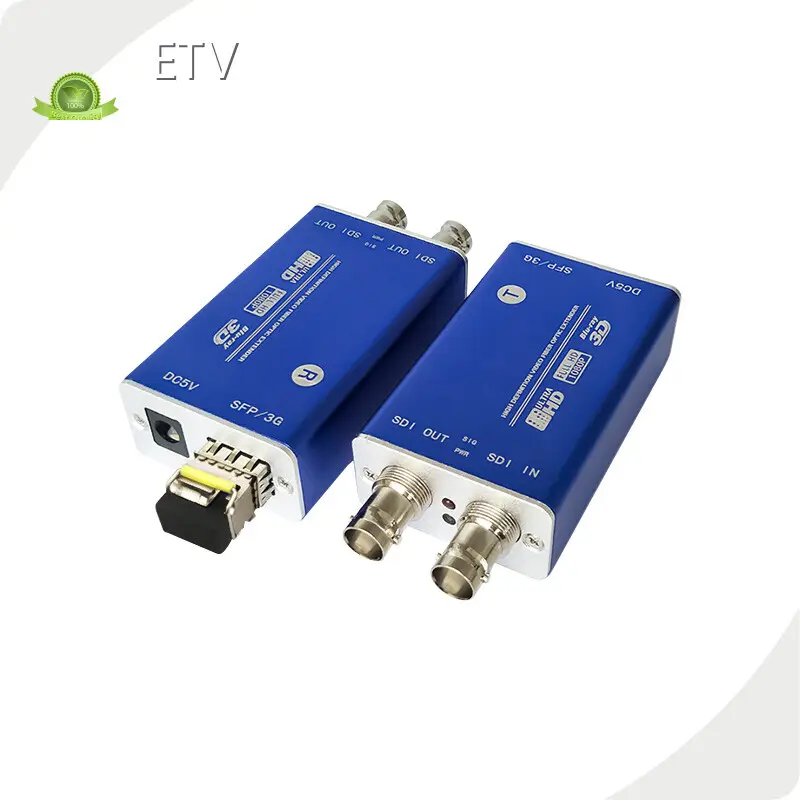

Product Display
Company Feature
• Our company's products are not only sold well in the domestic market, but also exported to Southeast Asia, Africa, Europe and the United States and other countries and regions.
• Traffic convenience including easy and open highway access and the great geographic location is conducive to the transportation of SDI to fiber converter SDI光纤转换器 HDMI fiber extender HDMI光纤延长器 HDMI to SDI converter、SDI to HDMI conv.
• Since the establishment in ETV has been engaged in the relevant work of industry, and has accumulated rich industry experience.
If you are interested in ETV's products or services, please contact us. We are looking forward to working with you.
