4k Hdmi Optical Extender Manufacturers
Company Advantages
· The production of ETV 4k hdmi optical extenderis line with the international production standards.
· We implement quality control system to ensure products without defects.
· 4k hdmi optical extender assures the brand visualize and honor of Beijing Yite Video Technology Co., Ltd. in the trade.

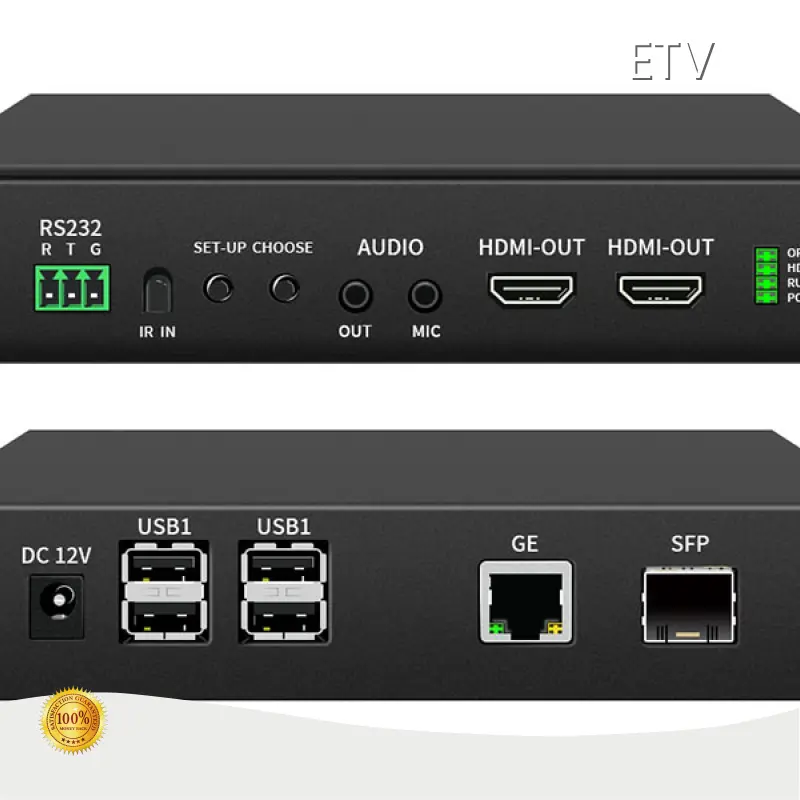

ETV-1620 series multi-service KVM high-definition video optical transceiver is a product that can transmit signals on optical fiber or network transmission media. It can simultaneously transmit KVM signals, 4K&30 image-quality HDMI video signals, independent audio signals, and data services. At the same time, it supports one infrared transmission function, and the device supports USB2.0 interface, which can realize mouse and keyboard.
Realize point-to-point transmission of KVM signals, apply MixMatrix distributed access platform, can realize flexible switching of multiple KVM signals, simple networking, easy installation, low construction cost, can be used in video conferencing, photography, subway monitoring, surgical teaching, distance education, wedding receptions, military exercises and other industries.
● Multiple resolution support: supports multiple resolutions up to 4K@30Hz and below;
● LC optical interface, the maximum transmission rate is 10G, the maximum transmission distance can reach 120Km; RJ45 interface, can transmit 70~100 meters, and can be connected to a switch;
● Automatically identify and configure various display modes;
● Simultaneously compatible with video formats allowed by CCIR such as PAL, NTSC and SECAM;
● Pixel clock maximum 225MHz;
● Built-in automatic equalization and retiming functions, the picture is clear and stable;
● Using V-EDID technology, the transmitter supports EDID self-learning;
● Support HDCP protocol and DDC2B protocol;
● The KVM interface supports USB2.0;
● Support one-way infrared transmission function;
● Video, data, and power interfaces are designed to be lightning-proof and anti-static;
● The equipment adopts a 12V interface design, which is designed to prevent reverse insertion, surge, and high voltage;
● Desktop chassis design, suitable for installation and operation in standard flight boxes and cabinets;
● Compact structure, easy to install, plug and play
|
Model number |
TX |
RX |
|
Parameters |
||
|
Input |
HDMI(4K@30)MIC In |
RS232 MIC IR HDMI LC Optical Interface RJ45 KVM In |
|
Output |
AUDIO RS232 IR HDMI LC Optical Interface RJ45 KVM Out |
HDMI AUDIO Out |
|
Conventional |
||
|
Transfer mode |
Fiber |
|
|
Transmission distance |
20~120km |
|
|
Up to 4K@30Hz |
||
|
Bandwidths |
10.2Gbps |
|
|
Standards-compliant |
HDMI2.1 & HDCP2.2 |
|
|
Maximum power consumption |
10W |
|
|
Operating temperature |
0 ℃~ 45℃ |
|
|
Relative humidity |
0% ~ 90% |
|
|
Power supply |
input:12VDC 1A, 50/60Hz; |
|
|
Overall dimensions(W*H*D) |
151mm x 120mm x 27mm |
|
|
Net Weight(G) |
350g |
|
|
Power supply method |
DC12V |
|
|
Power wastage |
Depending on specific configuration (<20W) |
|
|
Average Trouble-Free Operating Time |
Greater than 100,000 hours |
|
|
Operating temperature |
0°C~+45°C |
|
|
Storage temperature |
-40°C~+85°C |
|
|
Relative humidity |
0~95 % |
|
Company Features
· Beijing Yite Video Technology Co., Ltd., known for the expertise in development, design, and manufacture of 4k hdmi optical extender, have received a good reputation around the world.
· Our company has gathered a group of excellent design talents. The members are capable to combine imagination with collaboration and craftsmanship to develop thoughtful, elegant product design solutions. Our company is a diverse team of researchers, strategists, product developers, designers, and producers. Each member of this team has profound knowledge and experience in the 4k hdmi optical extender industry.
· With intense sense of responsibility, ETV strives every effort to provide the best for customers. Please contact us!
Product Comparison
Compared with similar products, our 4k hdmi optical extender is provided with the following competitive advantages.
Enterprise Advantages
Our company has a professional technical talents team and a set of scientific operation system. The scientific operation system help us do better in analysis and research, quality standards and quality control of products. All this effectively ensures our sustainable development.
To meet the huge demands of customers, our company has formed a sound service system to provide consumers with quality products and services.
Our company always sticks to the business philosophy of 'based on integrity, changing through innovation, and advancing with the times'. Depending on technological innovation and talent advantages, our company strives to meet customers' needs as much as possible and provides customers with better products and services.
Since the establishment, ETV has been engaged in industry-related work. Until now, we have accumulated rich industry experience.
ETV has established a sales network throughout the Americas, Australia, and Asia.
