4k Fiber Extender for Sale
Product details of the 4k fiber extender
Product Introduction
ETV 4k fiber extender is delicately manufactured by excellent production team using advanced technology and sophisticated equipment. This product passes an international standard quality certification. Our wide product range can meet various needs of customers.

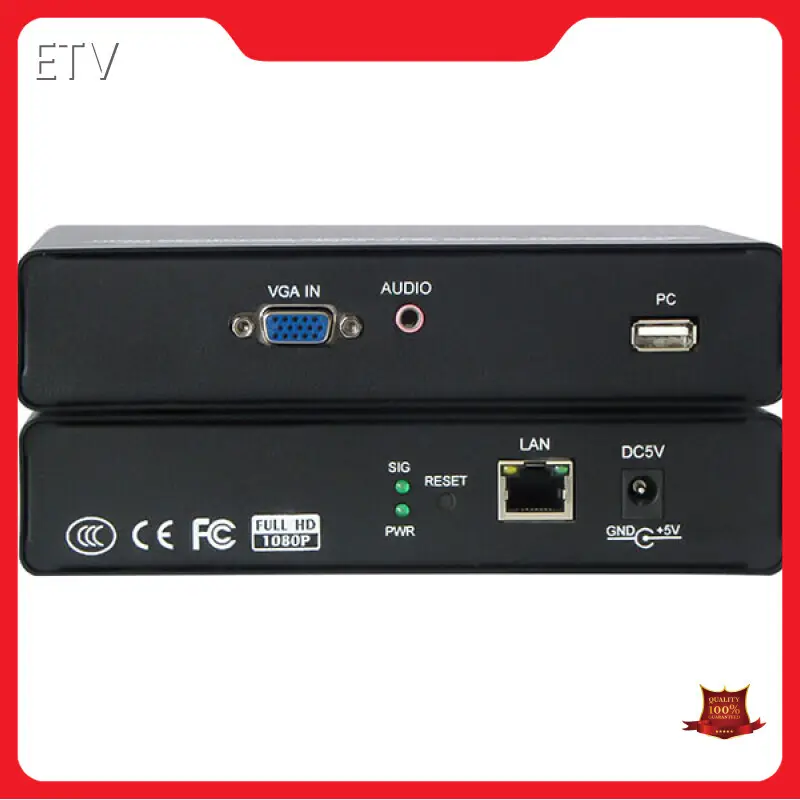

ETV ETV-680 series high-definition KVM network cable extender is an independent research and development chip design of Ante Video Application, which transmits VGA signal, USB2.0 signal through CAT5, CAT5E, CAT6 network cable; supports 3.5 audio, 232 data, IR infrared (available select). HDMI signal supports 1920*1080@60hz. Point-to-point single CAT6 network cable can transmit 1080P@60Hz up to 120 meters; support switch/router and other relay equipment cascade to extend unlimitedly and distribute VGA signal.
This series of network cable extension transmitters have excellent image processing and transmission capabilities, making signal transmission more smooth and stable. It is a reliable, high-performance, and efficient VGA signal extension method, which is widely used in industrial control, computer fields and monitoring fields. Large-screen advertising, education, splicing system, bank securities system, etc.
● Support VGA signal, support RGBHV signal input;;
● Support USB2.0, realize real-time remote control of mouse and keyboard;
● The network cable complies with the IEEE-568B standard; it can transmit up to 120 meters through the CAT5/5E/6 network cable;
● Support point-to-point transmission, which can be extended indefinitely through the switch;
● One-to-multipoint transmission can be realized through the switch;
● Video supports up to 1920*1080@60HZ;
● Can be equipped with 3.5 audio interface;
● Support 232 data and IR infrared function optional.
|
Parameter |
Explanation |
Remark |
|
Power supply |
DC5V / 2A |
|
|
Input and output signal |
VGA |
|
|
Support resolution |
480i@60Hz、480P@60Hz、576i@50Hz、576P@50Hz、 720P@50/60Hz、1080i@50/60Hz、1080P@50/60Hz |
|
|
Network cable |
Unshielded or shielded Category 5/6 network cable (UTP/STP Cat5e/6) |
|
|
Network cable transmission distance |
VGA 1080P signal can be transmitted 120 meters using CAT5 network cable |
|
|
Product power consumption |
TX 3W RX3W |
|
|
Product Size |
170x106x35mm |
|
