Fiber Optic Extender for Sale
Company Advantages
· The raw materials ETV fiber optic extender uses are safe and legal.
· The latest advanced equipment and highly qualified & experienced workforce greatly ensure the product to be high-quality.
· Our service team will be 24 hours available to offer service for our customers.

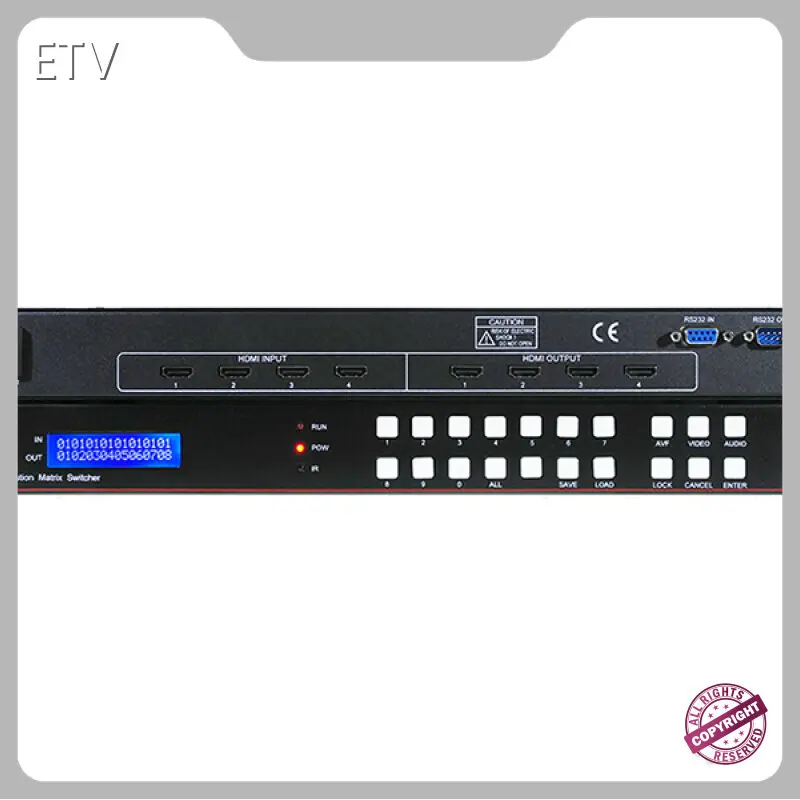

HDMI matrix specialised in the use of high-performance digital processing chip, transmission distance of up to 30 m HDMI matrix using high-performance digital processing chip, transmission speed of up to 10.2 Gbps, backward compatible with 480p, 720p, 1080i, 1080p and other resolutions; HDCP 1.4; support for Blu-ray DVD24/50/60fs HDCP 1.4; support for Blu-ray DVD24/50/60fs/HD-DVD/xvYCC; support for multi-channel switching at the same time; support for multi-level cascade, full SMD SMD process, the unique ESD static protection; easy to install, plug-and-play; switching flexibility: manual, remote control, computer software, networks, and other control methods, the product is widely used in the military, telecommunications, power, oil, scientific research and other high-demanding application areas.
● Supports 1080P/60Hz, HDMI version 2.0, HDCP1.4 standard
● Front panel LCD status display, can display the switching status of each channel of the device
● Power failure site switching memory protection function; unique ESD electrostatic protection function
● The device comes with EDID copy function (currently supports HDMI, DVI).
● Supporting status monitoring and fault judgement when there is no signal.
● Compatible with remote control equipment (such as: Crestron, fast, AMX and other domestic and foreign all the central control)
● Fast response switching time, easy installation, plug and play
● Support multi-channel simultaneous switching, address setting and other functions
● Supports support for High Definition Television (HDTV) signals
● Compatible with remote control equipment (such as: Crestron, fast, AMX and other domestic and foreign all the central control)
● Easy installation, plug and play
HDMI 4x4
HDMI 8x8
HDMI 16X16
|
Bandwidth |
10.2 Gbps (full load) |
|
Resolution |
3840*2160/60Hz; 1920*1200/60Hz; 1080P; 3D & 720P, etc. |
|
Protocol |
Support HDMI2.0 HDCP1.4 standard; backward compatible with HDMI1.3bDVI1.0 and so on. |
|
Maximum transmission delay |
5nS (±1nS) |
|
Switching speed |
150ns (maximum time) |
|
Signal type |
HDMI-A all-digital T.M.D.S. signal in HDMI 2.0 specification |
|
Transmission distance |
1920*1080P input 30m, output 30m |
|
EDID Management |
Supports copy input port EDID passthrough. |
|
Output impedance |
differential 100Ω |
|
Output swing |
800mVp-p |
|
Connector |
Type-A HDMI locking female connector |
|
Serial interface |
RS232, 9-hole D-Sub connector, ports 2, 3 and 5 are straight through. |
|
Serial parameters |
9600bps, 8-bit data, 1 start bit, 1 stop bit, no parity, no flow control |
|
Power consumption |
20 ~ 150W (depending on the specific model to determine the power consumption) |
|
Temperature |
0℃～45℃ |
|
Power supply |
AC100～220V, 50/60Hz (factory default input voltage AC220V, other input voltage please specify when ordering) |
|
Control mode |
panel, remote control, RS232 |
|
1U chassis size |
432 x 245 x 44mm (L x W x H) |
Company Features
· Beijing Yite Video Technology Co., Ltd. is great at producing garnished fiber optic extender with high performance.
· With introduced advanced technology and equipment, our factory coordinates the production through strict management to supply quality products including fiber optic extender for customers. We have a strong customer base all around the world because we have been sincerely working with our customers to develop, design, and manufacture fiber optic extender based on their requirements.
· Beijing Yite Video Technology Co., Ltd. ensures you receive the greatest and superior quality of fiber optic extender. Ask online!
Application of the Product
The fiber optic extender produced by ETV can be used in many fields.
Since the establishment, ETV has always been focusing on the R&D and production of SDI to fiber converter SDI光纤转换器 HDMI fiber extender HDMI光纤延长器 HDMI to SDI converter、SDI to HDMI conv. With strong production strength, we can provide customers with personalized solutions according to customers' needs.
