Fiber Optic Extender - - ETV
Product details of the fiber optic extender
Quick Detail
ETV fiber optic extender is inspected right from raw materials selection to the final production. The product meets the highest quality and safety standards. fiber optic extender developed and produced by our company can be widely used in various industries and professional fields. Beijing Yite Video Technology Co., Ltd.'s entire employee received systematic training.
Product Description
Compared with other fiber optic extender, the fiber optic extender produced by ETV has the following advantages and features.

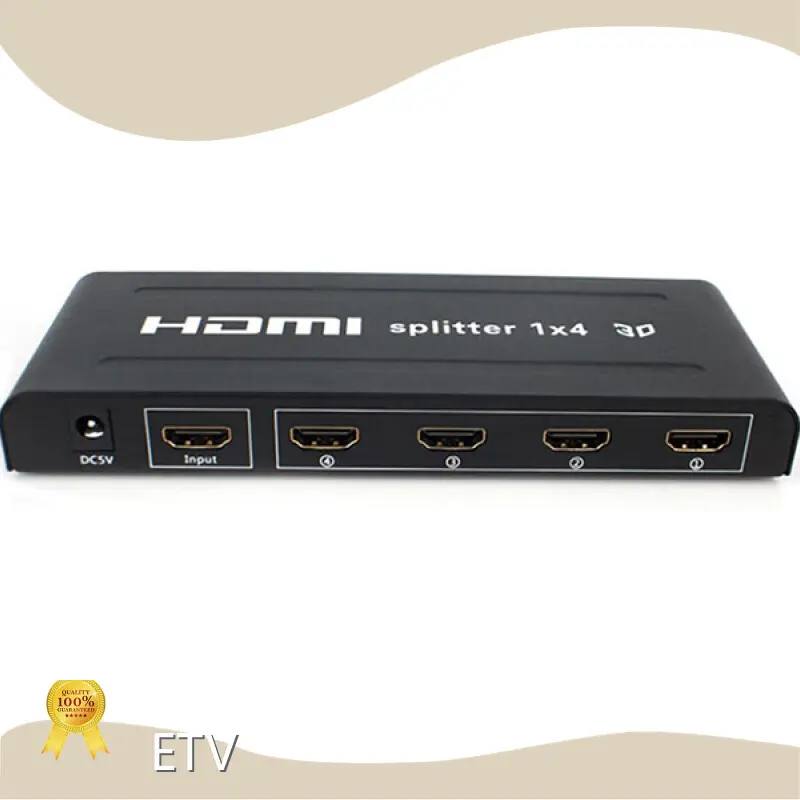

ETV HDMI Splitter Support 3D Video 1080P that supports Full HD 3D uses a single HDMI source,accessing to multiple HDMI sinks. The Splitter allows one HDMI devices to be split easily to four HDMI compatible monitors or projectors.
The Splitter can also be placed at the end of a long HDMI cable to regenerate the HDMI signal.
Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
● Compatible with HDCP
● Easy to install and operate
● Durable and convenient, plug and play
● Supports HDTV video resolution ups to 1080P
● Supports resolution: 720i/720p/1080i/1080p
● Input transmission distance ups to 15 m
● Output transmission distance ups to 25 m
|
version |
HDMI 1.3 version(HDMI 1.4v could be choosed) |
|
Protocol |
HDCP 1.2 version |
|
HDMI Connector |
1xHDMI input/4xHDMI output |
|
Resolution |
support 1080p/3D/CEC |
|
HDMI input |
10m by 26AWG stanard HDMI cable |
|
HDMI output |
15m by 26AWG stanard HDMI cable |
|
Material |
Metal shell with excellent cooling |
|
Chip inside |
Explore chip - EP |
|
Max bandwidth |
225MHz |
|
Max baud rate |
6.75Gbps |
|
Input Video Signal |
0.5-1.0 volts p-p |
|
Support Video color format |
24bit/deep color 30bit,36bit |
|
Input DDC Signal |
5 volts p-p(TTL) |
|
Max Single Link Range |
1920X1080,1080p;3D 1080p/24Hz |
|
Resolutinos DTV/HDTV |
480p/576p/720p/1080i/1080p(50Hz;60Hz);3D 1080p/24Hz |
|
Operating Frequency |
Up to 225MHz |
|
EIDI Duration |
4 seconds |
|
Power supply |
DC 5V/2A |
|
Operating Temperature |
-15 to 55 degree centigrade |
|
Operating Humidity Range |
5 to 90%RH(No Condensation) |
Product Specifications
|
Input video signal |
0.5-1.0 volts |
|
Input DDC signal |
5 volts |
|
Output video |
HDMI 1.4V+HDCP1.0/1.1/1.2 |
|
Power supply |
5V DC |
|
Source port connector |
19pin HDMI |
|
Display Device port Connector |
19pin HDMI |
Company Advantages
Beijing Yite Video Technology Co., Ltd. is mainly dedicated to the business of SDI to fiber converter SDI光纤转换器 HDMI fiber extender HDMI光纤延长器 HDMI to SDI converter、SDI to HDMI conv. To provide faster and better service, ETV constantly improves the service quality and promotes the service personnel level. The products we produced are of high quality and reasonable price. If needed, please contact us!
