ETV Fiber Optic Extender Fiber Optic Extendercompany
Company Advantages
· Beautifully designed, ETV fiber optic extender has been given various attractive styles.
· By enhancing the performance of fiber optic extender, the worries of our users can be reduced.
· Beijing Yite Video Technology Co., Ltd. has years of R&D and production experience for fiber optic extender.

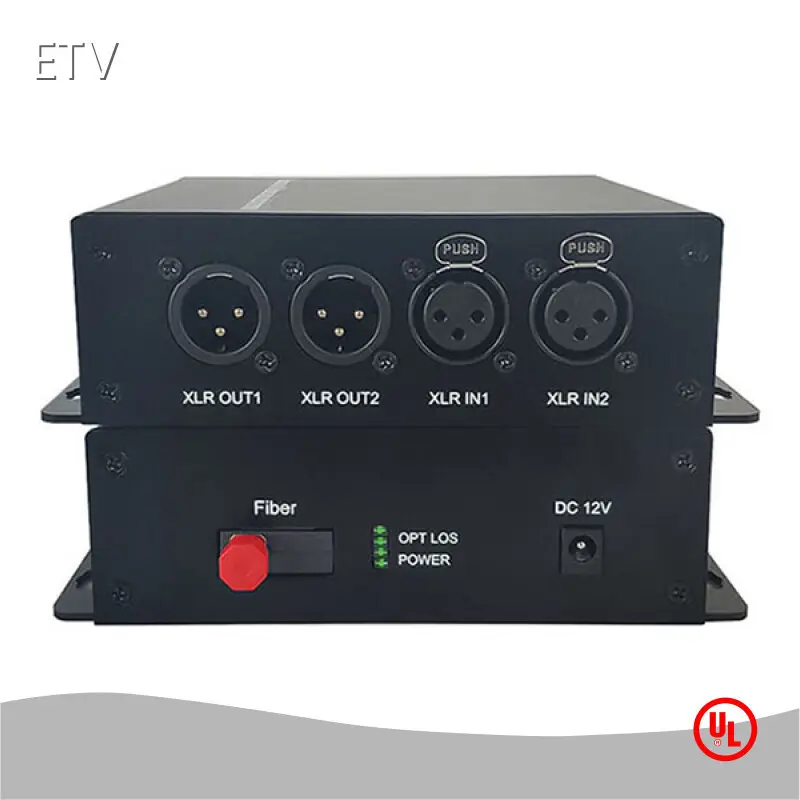

Broadcast-quality analog audio digital fiber optic extender overcomes the shortcomings of conventional analog FM, PM, and AM optical transceivers, such as serious mutual interference when transmitting multiple signals together, easy to be affected by the environment, poor transmission quality, and poor long-term stability; single-mode (multimode) optional, FC/LC/SC optical port optional, transmission distance up to 0-100km; audio interface with five levels of protection against lightning, static electricity, surge protection, and electromagnetic interference. Anti-static, anti-surge, anti-electromagnetic interference.
This series of products are widely used in long-distance broadcasting and television transmission systems, remote multimedia teaching, and intelligent transportation monitoring systems and other fields.
● 20bit digital codec;
● Audio output port balanced/unbalanced automatic conversion; ESD protection, safer and more reliable use;
● Single-stage transmission distance up to 100Km;
● System topology can be point-to-point and point-to-multipoint;
● Large audio dynamic range: maximum input/output audio up to +18dBm;
● Optionally provide three-level lightning protection;
● Easy to turn on, no need to readjust on the circuit and on the optical path when turning on;
● Clear indication of working status, the panel is equipped with LED indication of input/output audio, optical signal, in-unit status and power supply;
● Optional 1310nm, 1550nm, CWDM or DWDM optical transmission methods, through the CWDM optical multiplexing to achieve more signal transmission;
● Industrial-grade design, dust-proof, frost-proof, lightning-proof, and high temperature resistant;
● With third-party test report, FCC and CE international certification, 3C mandatory certification, ISO9001 certification;
| Audio input | |
| Number of input channels | 1-16 channels |
| Bandwidth | 20Hz～20 KHz @-0.5 dB |
| Input Maximum Level | 17.4 VP-P (+18dBm) |
| Channel Isolation | ＞ 90 dB @ 1KHz;＞ 90 dB @20KHz |
| Input resistance | 600Ω or high resistance |
| Connectors | XLR or balanced sockets |
| Audio output | |
| Number of output channels | 1-16 channels |
| Output bandwidth | 20Hz～20 KHz @-0.5 dB |
| Maximum Output Level | 17.4 VP-P (+18dBm) |
| Signal-to-noise ratio | >90dB (unweighted) |
| Total Harmonic Distortion | ＜0.2 % |
| Channel Isolation | ＞90 dB @ 1KHz＞90 dB @20KHz |
| Delayed matching | 2 |
| Output resistance | low resistance |
| Optical path parameters | |
| Optical wavelength | 1310 nm/1550 nm |
| Optical launch power | -5±3dBm/0±3dBm |
| Optical Receiving Power | -28dBm～-3 dBm |
| Optical transmission distance | 0～100 Km |
| Optical connector | FC/PC (optional FC/APC, LC/APC, SC/APC) |
| Power source | Rack-mounted AC85～265V (optional dual power supply) Power <20W |
| Size | 159mm*138mm*45mm Box: 284x202x84mm 19-inch 1-2U Chassis 430x230x86 |
Company Features
· Beijing Yite Video Technology Co., Ltd. is a manufacturer that specializes in producing fiber optic extender.
· Mastering the technology of producing fiber optic extender has created more benefits for ETV. Firmly grasping the advanced technology, ETV is able to offer the high-quality fiber optic extender with competitive price.
· Service is such an important part that will never be neglected for Beijing Yite Video Technology Co., Ltd.. Call now!
Product Details
With a focus on product quality, ETV strives for quality excellence in the production of fiber optic extender.
Application of the Product
ETV's fiber optic extender is widely used in various industries and fields.
ETV always pays attention to customers. According customers' actual needs, we could customize comprehensive and professional solutions for them.
Enterprise Advantages
ETV has a management team and a staff team, who are both young, market-oriented and knowledgeable. The team members are equipped with strong team spirit and innovative consciousness. All of us strive to produce quality products with common efforts.
Sticking to the quality-oriented business philosophy, pragmatic and sincere service attitude, our company provides customers with a full range of one-stop service in pre-sales, sales and after sales.
ETV always persists in the management philosophy of 'quality first, credit first, and service first', and aims to become an influential company with the corporate spirit of 'integrity, responsibility, solidarity and striving for the first'.
After the development for years, ETV finally makes a figure in the industry.
ETV's SDI to fiber converter SDI光纤转换器 HDMI fiber extender HDMI光纤延长器 HDMI to SDI converter、SDI to HDMI conv are not only well received in the domestic market, but also sold well in the overseas market.
