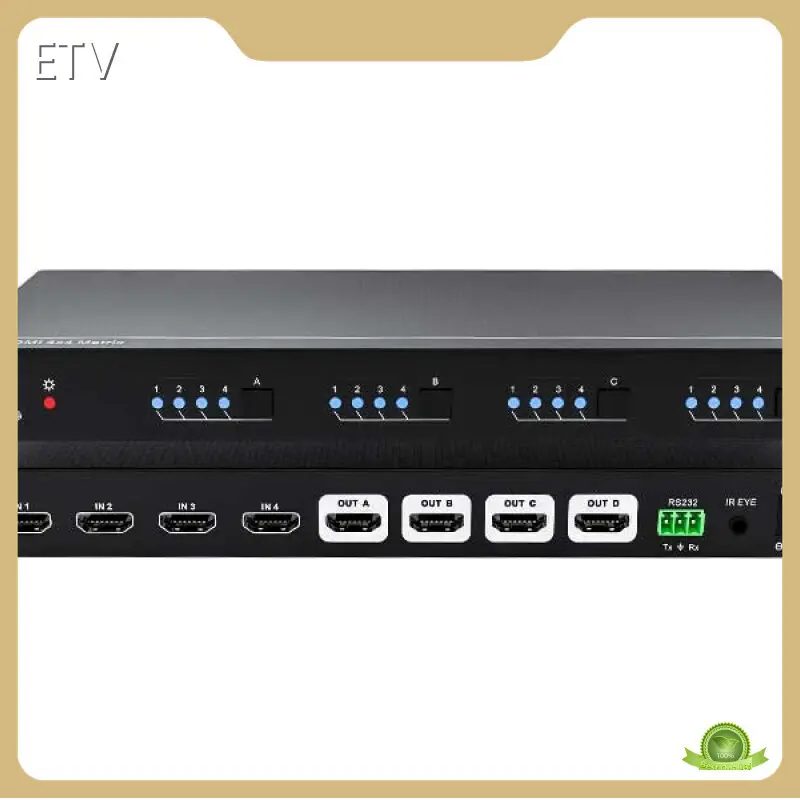

This machine is a 4K high-definition HDMI matrix switcher, which consists of 4 HDMI inputs and 4 HDMI outputs to form a 4x4 matrix switcher.Support HDMI1.4 standard, compatible with HDCP2.2, and support up to 4Kx2K@60Hz 4:2:0 resolution.The equipment control methods are flexible and diverse, including infrared control, serial port control, and panel button control. They are compatible with control at the same time and are more convenient to use.
● The highest resolution is 4Kx2K@60Hz 4:2:0, support 1080P 3D
● Support HDMI1.4, compatible with HDCP2.2, and backward compatible
● Intelligent EDID management, which can learn output EDID data through RS232 instructions and IR infrared remote control
● Support panel button control, IR infrared, RS232 commands
● Input HDCP follows, output supports HDCP management: instruction control
● Support for USB firmware online upgrade
|
VIDEO IN |
|
|
input |
(4) HDMI |
|
Input connector |
(4) HDMI A Type |
|
HDMI version |
1.4 |
|
HDCP version |
2.2 |
|
Video output |
|
|
output |
(4) HDMI |
|
Output Connector |
(4) HDMI A Type |
|
HDMI version |
1.4 |
|
HDCP version |
1.4 |
|
convention |
|
|
resolution ratio |
Maximum Support 4K@60Hz 4: 2:0 |
|
bandwidth |
10.2 Gbps |
|
control mode |
Front panel button, IR infrared remote control, RS232 |
|
power supply |
12V DC 2A |
|
consumption |
10W (maximum) |
|
operation temperature |
-10℃ ~ +55℃ |
|
storage temperature |
-25℃ ~ +70℃ |
|
relative humidity |
10%-90% |
|
Size (W * H * D) |
244mm x25.5mm x 100mm; 269mm x 25.5mm x 100mm (including hanging ears) |
|
Net weight (g) |
650g |
Company Advantages
· Only the materials that do no harm to health is used to manufacture ETV fiber optic extender.
· The product has the advantages of strong functionality, high performance.
· By years of development, the product has successfully gained trust from clients and tends to be more applied in the global market.
Company Features
· The ETV brand is well known in the field of fiber optic extender.
· We own an in-house design team. By working closely with our manufacturing team, they can ensure their every design to meet the highest standards.
· While paying attention to the quality of fiber optic extender, ETV also focuses on the customer service. Ask online!
Application of the Product
ETV's fiber optic extender is widely used in many industries.
ETV can provide customers with one-stop solutions of high quality, and meet customers' needs to the greatest extent.
