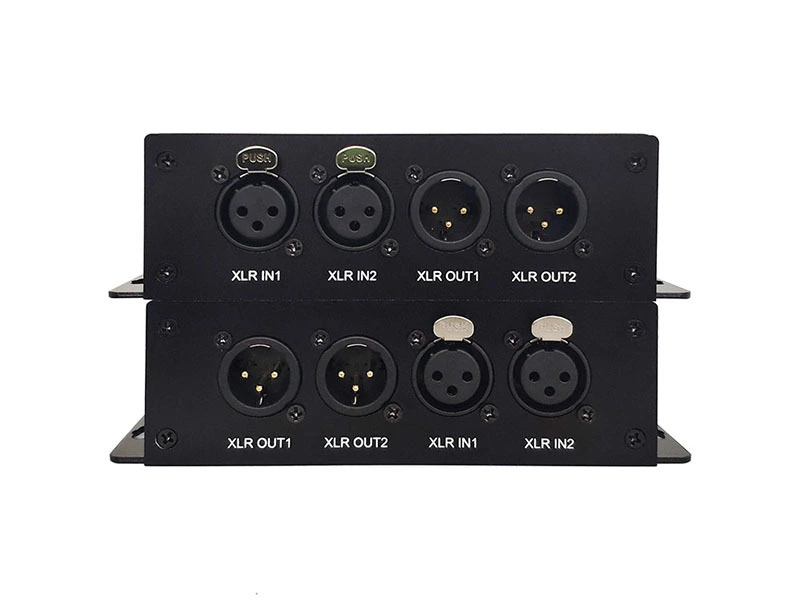

XLR Balanced audio encoder and decoder support Dante

ETV-DT816804 is an audio codec device that can perform IP networking through a switch to complete pairwise audio interaction in the LAN.  Industrial-grade chips are used to achieve technical bottlenecks such as adjustable audio bandwidth and adjustable audio delay on the basis of ensuring sound quality through the latest algorithms.  It can cooperate with video distributed applications, and can also realize audio broadcast interaction independently.  Easy to use and flexible in application.

● This series of products are equipped with a high-speed processor, ultra-low delay, and can be used as a microphone on-site sound reinforcement, which is not comparable to ordinary network microphones. For special applications, the delay is adjustable between 2.00-120.00ms, and the accuracy is 0.01ms.

● This series supports two channels, up to 16 channels full-duplex network audio, two-way transmission of lossless audio.

● Balanced input and output interface, can be set to unbalanced by software.

● You can enter the switch/router, or you can directly connect the two modules for automatic identification, which is convenient to use.

● The main working modes are: point-to-point mutual transmission, grouping, group sending, broadcasting, paging, etc.

Note: Different working methods should use different group numbers, such as different point-to-point, different group numbers should be used, but the same

Two point-to-point modules in a group should use the same group number, wrong group number, duplicate IP, the modules will not work normally.

● The paging or emergency fire function can be paging by IP fixed point, or by group, or by paging or broadcast all.

● User IO port, switch value function, two-way data transparent transmission function, need to contact technical instructions before delivery.

● Equalization function, the module comes standard with 5-band EQ equalization function, some of which can be selected for high and low cuts, used for speakers, and need to be noted.

● The software supports the virtual sound card function, which can monitor the sound of the module on the computer side. This is a paid function and is only free for some modules.

● This series of modules have a wide range of applications, suitable for audio matrix, isolation, digital IP broadcasting, public broadcasting, digital conferences, simultaneous interpretation, and can also be installed in power amplifiers, mixers, audio preamps, peripherals... With wireless bridge, it can also form a wireless audio system...

● POE network power amplifier version, with 50W+50W stereo power amplifier, single channel 100W. There are also 175w+175w, single channel 350w optional.

● This module, only 6702-V4, size: 60*75mm.

● Can be upgraded to support AES67 and Dante.
