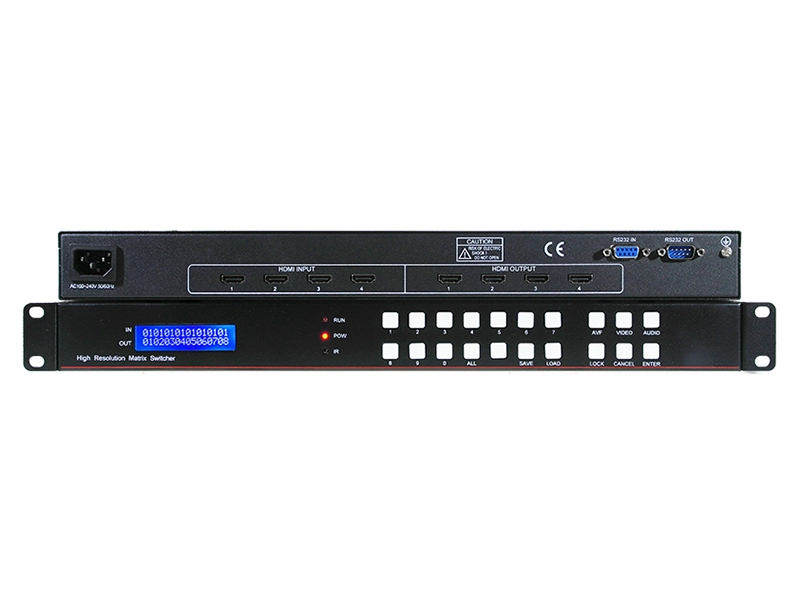

HDMI Matrix Switcher
● Supports 1080P/60Hz, HDMI version 2.0, HDCP1.4 standard
● Front panel LCD status display, can display the switching status of each channel of the device
● Power failure site switching memory protection function; unique ESD electrostatic protection function
● The device comes with EDID copy function (currently supports HDMI, DVI).
● Supporting status monitoring and fault judgement when there is no signal.
● Compatible with remote control equipment (such as: Crestron, fast, AMX and other domestic and foreign all the central control)
HDMI matrix specialised in the use of high-performance digital processing chip, transmission distance of up to 30 m HDMI matrix using high-performance digital processing chip, transmission speed of up to 10.2 Gbps, backward compatible with 480p, 720p, 1080i, 1080p and other resolutions; HDCP 1.4; support for Blu-ray DVD24/50/60fs HDCP 1.4; support for Blu-ray DVD24/50/60fs/HD-DVD/xvYCC; support for multi-channel switching at the same time; support for multi-level cascade, full SMD SMD process, the unique ESD static protection; easy to install, plug-and-play; switching flexibility: manual, remote control, computer software, networks, and other control methods, the product is widely used in the military, telecommunications, power, oil, scientific research and other high-demanding application areas.
● Supports 1080P/60Hz, HDMI version 2.0, HDCP1.4 standard
● Front panel LCD status display, can display the switching status of each channel of the device
● Power failure site switching memory protection function; unique ESD electrostatic protection function
● The device comes with EDID copy function (currently supports HDMI, DVI).
● Supporting status monitoring and fault judgement when there is no signal.
● Compatible with remote control equipment (such as: Crestron, fast, AMX and other domestic and foreign all the central control)
● Fast response switching time, easy installation, plug and play
● Support multi-channel simultaneous switching, address setting and other functions
● Supports support for High Definition Television (HDTV) signals
● Compatible with remote control equipment (such as: Crestron, fast, AMX and other domestic and foreign all the central control)
● Easy installation, plug and play
HDMI 4x4
HDMI 8x8
HDMI 16X16
|
Bandwidth |
10.2 Gbps (full load) |
|
Resolution |
3840*2160/60Hz; 1920*1200/60Hz; 1080P; 3D & 720P, etc. |
|
Protocol |
Support HDMI2.0 HDCP1.4 standard; backward compatible with HDMI1.3bDVI1.0 and so on. |
|
Maximum transmission delay |
5nS (±1nS) |
|
Switching speed |
150ns (maximum time) |
|
Signal type |
HDMI-A all-digital T.M.D.S. signal in HDMI 2.0 specification |
|
Transmission distance |
1920*1080P input 30m, output 30m |
|
EDID Management |
Supports copy input port EDID passthrough. |
|
Output impedance |
differential 100Ω |
|
Output swing |
800mVp-p |
|
Connector |
Type-A HDMI locking female connector |
|
Serial interface |
RS232, 9-hole D-Sub connector, ports 2, 3 and 5 are straight through. |
|
Serial parameters |
9600bps, 8-bit data, 1 start bit, 1 stop bit, no parity, no flow control |
|
Power consumption |
20 ~ 150W (depending on the specific model to determine the power consumption) |
|
Temperature |
0℃～45℃ |
|
Power supply |
AC100～220V, 50/60Hz (factory default input voltage AC220V, other input voltage please specify when ordering) |
|
Control mode |
panel, remote control, RS232 |
|
1U chassis size |
432 x 245 x 44mm (L x W x H) |
